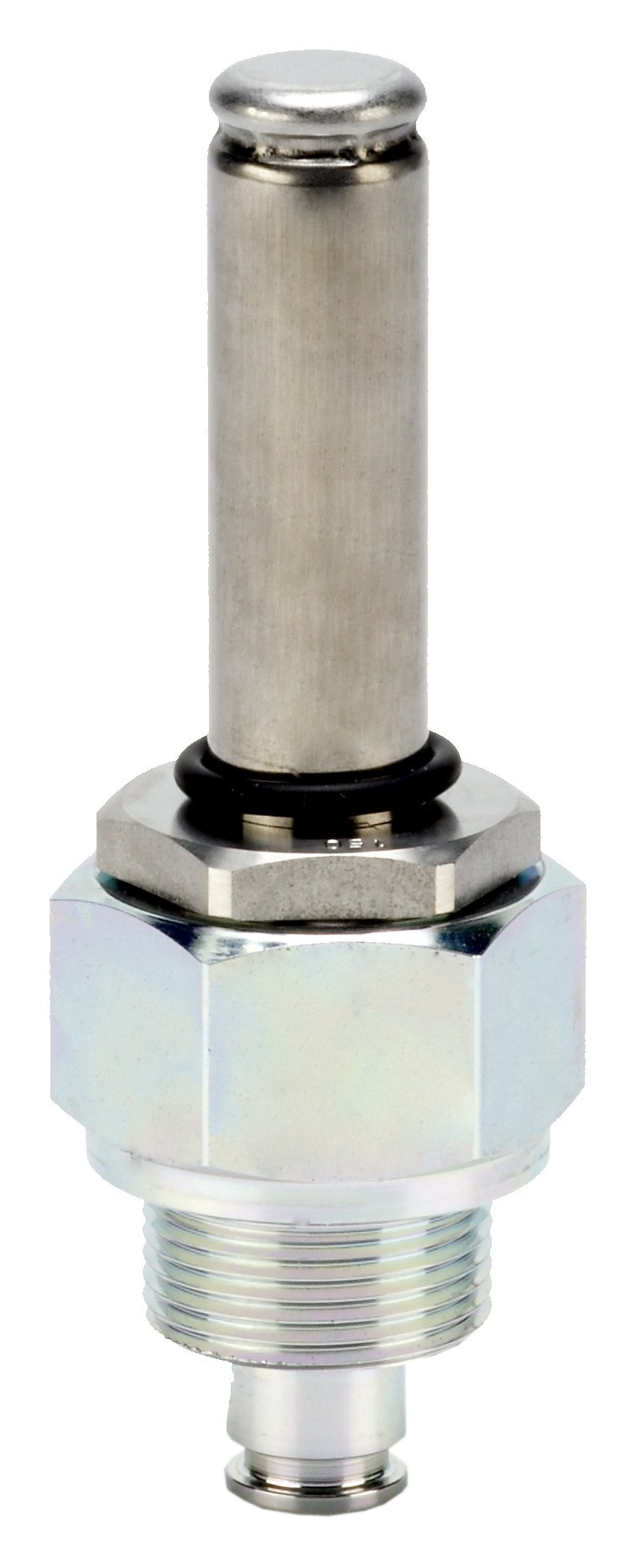

Danfoss EVMP normally-closed solenoid pilot valve, servo-piston, 2.4 mm orifice, for ICS servo-operated main valves
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss EVMP normally-closed (NC) solenoid pilot valve for the ICV Flexline / ICS servo-operated main-valve range, code 027B1123. Fitted in the pilot channel of an ICS main valve, the EVMP opens or closes the pilot flow electrically, giving the main valve an on/off (stop) function. This is the normally-closed version: the pilot is closed when de-energised. Servo-piston operated with a 2.4 mm orifice and a 13.5 mm actuator system; steel body with threaded inlet. Flow coefficient Kv 0.251 m3/h (Cv 0.29). Maximum working pressure 28 bar (406 psig). Medium temperature -50 to 60 C (-58 to 140 F); ambient -50 to 50 C. Coil is ordered separately. Supplied as a 20-piece multipack. For HCFC, HFC, R717 (ammonia) and R744 (CO2) systems.
Technical Specifications
- Type
- EVMP (solenoid pilot valve, normally closed)
- Code number
- 027B1123
- Series
- CVP / CVPP / CVC / CVE / EVM / CVH pilot valves
- Function
- Solenoid on/off pilot — Normally Closed (NC)
- Valve operation
- Servo-piston
- Pressure range Pe
- 28 bar
- Orifice size
- 2.4 mm
- Actuator system
- 13.5 mm
- Kv value
- 0.251 m3/h
- Cv value
- 0.29 gal/min
- Maximum working pressure
- 28 bar (406 psig)
- Medium temperature range
- -50 to 60 C (-58 to 140 F)
- Ambient temperature range
- -50 to 50 C
- Inlet connection
- Thread
- Body material
- Steel
- Coil
- Ordered separately (not included)
- Manual operation
- No
- Net weight
- 0.227 kg
- Gross weight
- 0.241 kg
- Approvals
- EAC (LLC CDC TYSK)
- EAN
- 5702422133339
Standards & Compliance
- Material
- Steel
- Pressure Rating
- 28 bar
- Temperature Range
- -50 to 60 C
- HS Code
- 8481.80
Compatibility & Fitment
Solenoid pilot for Danfoss ICS servo-operated main valves; gives the main valve an electrical stop function. This is the normally-closed (NC) version — closed when de-energised; the normally-open counterpart is EVM (027B1132). A coil (clip-on) must be ordered separately and matched to the supply voltage. Confirm the ICS valve size and pilot arrangement before ordering.
