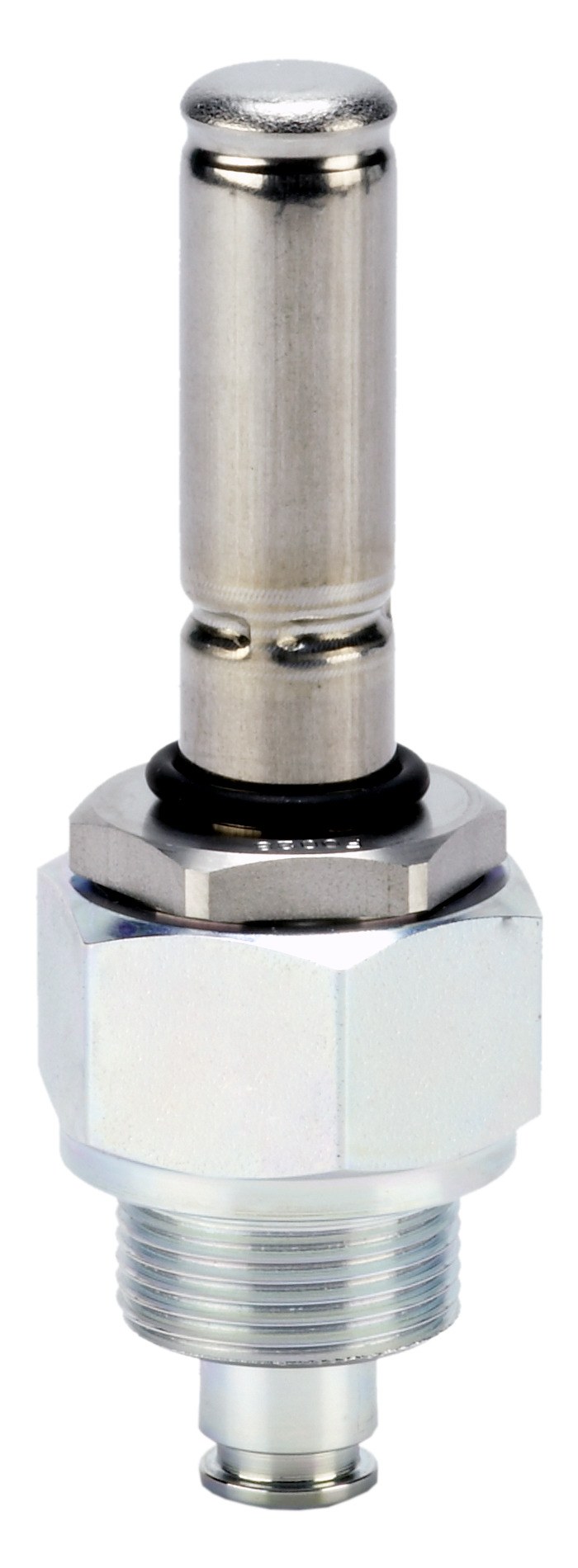

Danfoss EVM normally-open solenoid pilot valve, servo-piston, 1.8 mm orifice, for ICS servo-operated main valves (code 027B1132)
Danfoss · HVAC & Refrigeration · Pilot Valves
Danfoss EVM normally-open (NO) solenoid pilot valve for the ICV Flexline / ICS servo-operated main-valve range, code 027B1132. Fitted in the pilot channel of an ICS main valve, the EVM opens or closes the pilot flow electrically, giving the main valve an on/off (stop) function. This is the normally-open version: the pilot is open when de-energised. Servo-piston operated with a 1.8 mm orifice and a 13.5 mm actuator system; steel body with threaded inlet. Flow coefficient Kv 0.118 m3/h (Cv 0.136). Maximum working pressure 65 bar (943 psig); maximum opening differential 40 bar (580 psi) with a 10 W / 20 W AC coil. Medium temperature -60 to 120 C (-76 to 248 F); ambient -30 to 50 C. Coil is ordered separately. Supplied as a 20-piece multipack. For HCFC, HFC, R717 (ammonia) and R744 (CO2) systems.
Specifications
- Part number
- 027B1132
- HS code
- 8481.80
- Material
- Steel
- Pressure rating
- 65 bar
- Temperature range
- -60 to 120 C
Compatibility
Solenoid pilot for Danfoss ICS servo-operated main valves; gives the main valve an electrical stop function. This is the normally-open (NO) version — open when de-energised; the normally-closed counterpart is EVMP (027B1123). A coil (clip-on) must be ordered separately and matched to the supply voltage. Confirm the ICS valve size and pilot arrangement before ordering.
Approvals
