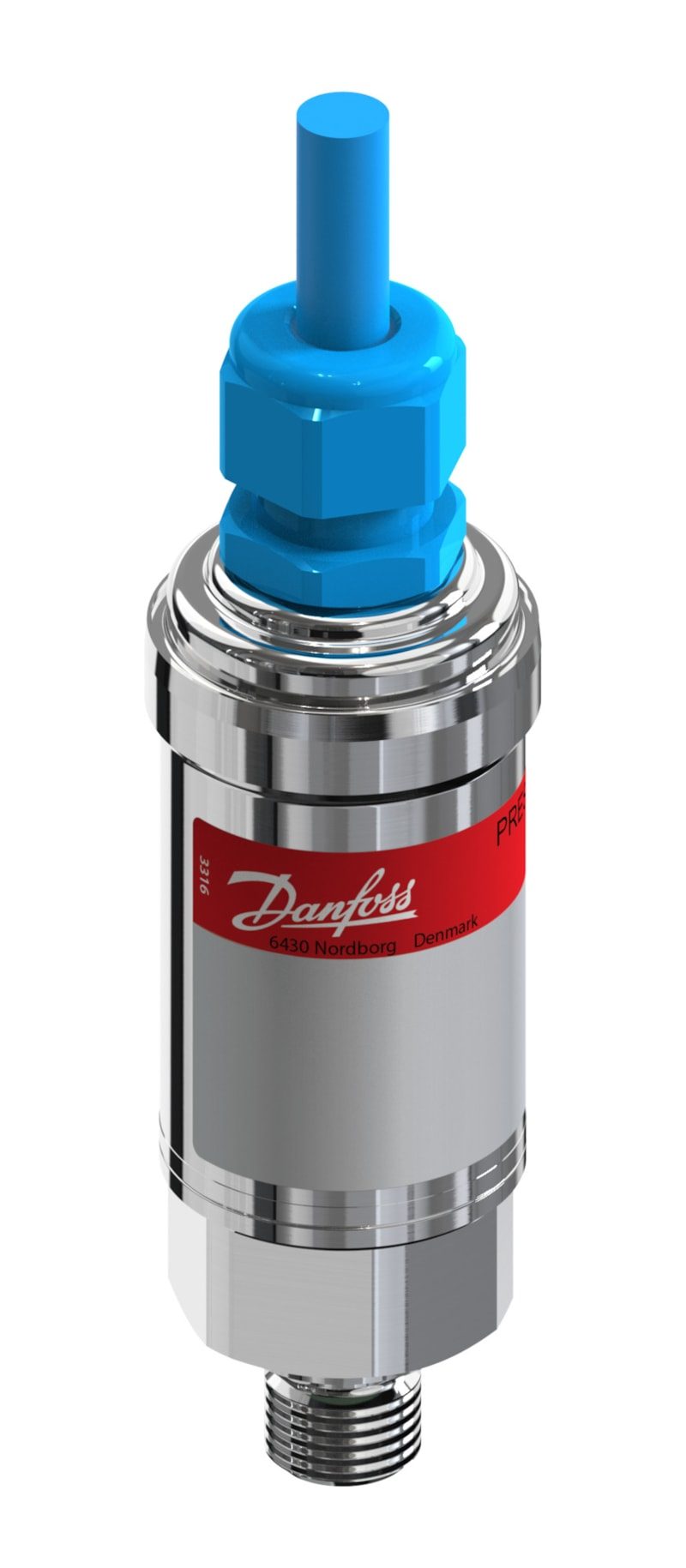

Danfoss MBS 4251 Intrinsically Safe Pressure Transmitter 0 to 6 bar
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 4251 intrinsically safe pressure transmitter for hazardous areas. Measuring range 0 to 6 bar (0 to 87 psi), 4-20 mA current output, AISI 316L stainless steel wetted parts. Pressure connection G 1/4 (DIN 3852-E, ISO 1179-2, Form E); electrical connection 5 m cable. Ex ia IIC T5.T4 Ga/Gb intrinsically safe; supply 10-28 V DC. Approvals: ATEX, CE, UL Recognized (C UL US). EAN 5702428874656.
Technical Specifications
- Type
- MBS 4251 (intrinsically safe)
- Range
- 0 to 6 bar (0 to 87 psi)
- Output
- 4-20 mA (2-wire)
- Supply
- 10-28 V DC
- Wetted parts
- AISI 316L stainless steel
- Pressure connection
- G 1/4 (DIN 3852-E, ISO 1179-2, Form E)
- Electrical connection
- Cable, 5 m
- Ex protection
- Ex ia IIC T5..T4 Ga/Gb
- Enclosure
- IP67
- Media temp
- -20 to 85°C
- Approvals
- ATEX, CE, UL Recognized (C UL US)
- EAN
- 5702428874656
- Part number
- 060G6304
- Net weight
- 0.448 Kilogram
- Product group
- Sensors
- + supply
- Black 1
- - common
- Black 2
- Accuracy, max. [±FS%]
- 1 %
- Accuracy, typical [±FS%]
- 0.5 %
- Adj. zero point and span
- No
- Approval
- ATEX
- Cable length [in]
- 196 in
- Cable length [m]
- 5 m
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Comments
- MEDIUM TEMP. MIN -20°C VITON
- Compensated temp. range [°C] [max]
- 100 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 212 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. comments
- Screened Ex
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- EX Sales text
- Ex iA IIC T5..T4 Ga/Gb
- Flush diaphragm
- No
- High Clipping Level
- 22.4
- In scope of WEEE
- Yes
- International Article Number
- 5702428874656
- Intrinsically safe
- Yes
- Low Clipping level
- 3.6
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -20 °C
- Medium temperature range [°F] [max]
- 185 °F
- Medium temperature range [°F] [min]
- -4 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Output signal
- Current
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Overload pressure max. [bar]
- 36 bar
- Overload pressure max. [psi]
- 522 psi
- Pressure connection HEX [mm]
- 27 mm
- Pressure connection notes
- M5
- Pressure connection size
- 1/4
- Pressure connection standard
- DIN 3852-E
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 6 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 87 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Gauge (relative)
- Pulse-snubber
- Yes
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- MBS 4251-1811-DCGB04-1
- Supply voltage [V] DC [max]
- 28 V
- Supply voltage [V] DC [min]
- 10 V
- UL mark
- Yes
Standards & Compliance
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- DIN 3852-E / ISO 1179-2
- Pressure Rating
- 0 to 6 bar
- Temperature Range
- -40°C to +85°C (medium/ambient)
- IP Rating
- IP67
- Classification / Approval
- EAC; RoHS
- HS Code
- 9026.20
Compatibility & Fitment
MBS 4251 intrinsically safe (Ex ia IIC) transmitter for hazardous areas; requires certified barrier/isolator.
