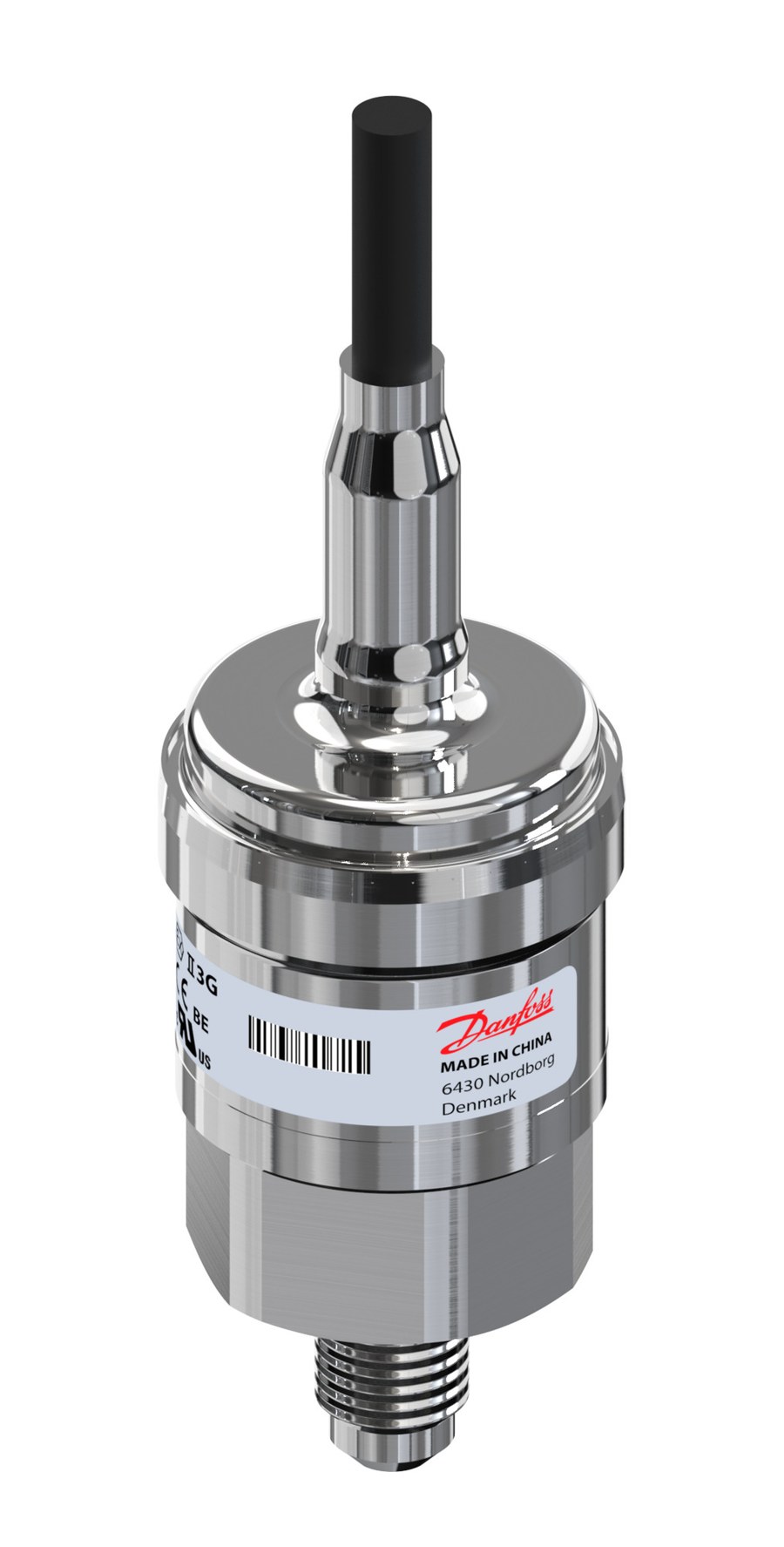

Danfoss AKS 33 Pressure Transmitter -1 to 34 bar 4-20 mA (060G2065)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss AKS 33 pressure transmitter, genuine OEM code 060G2065. Measuring range -1 to 34 bar (-14.5 to 493 psi), 4-20 mA (2-wire), 316L stainless steel wetted parts. 7/16-20 UNF flare 1/4 in (male) pressure connection; Screened cable, 2 m. AKS 33 4-20 mA transmitter, 7/16-20 UNF flare, 2 m cable; -1 to 34 bar compound range for discharge/liquid lines. EAN 5702422069577. P/N 060G2065.
Specifications
- Part number
- 060G2065
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- -1 to 34 bar
- Temperature range
- -40 to 85°C
- IP rating
- IP67
- Thread standard
- SAE J513 flare
Compatibility
Flare 1/4 in service-valve port; two-wire current loop 9-32 V DC.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
