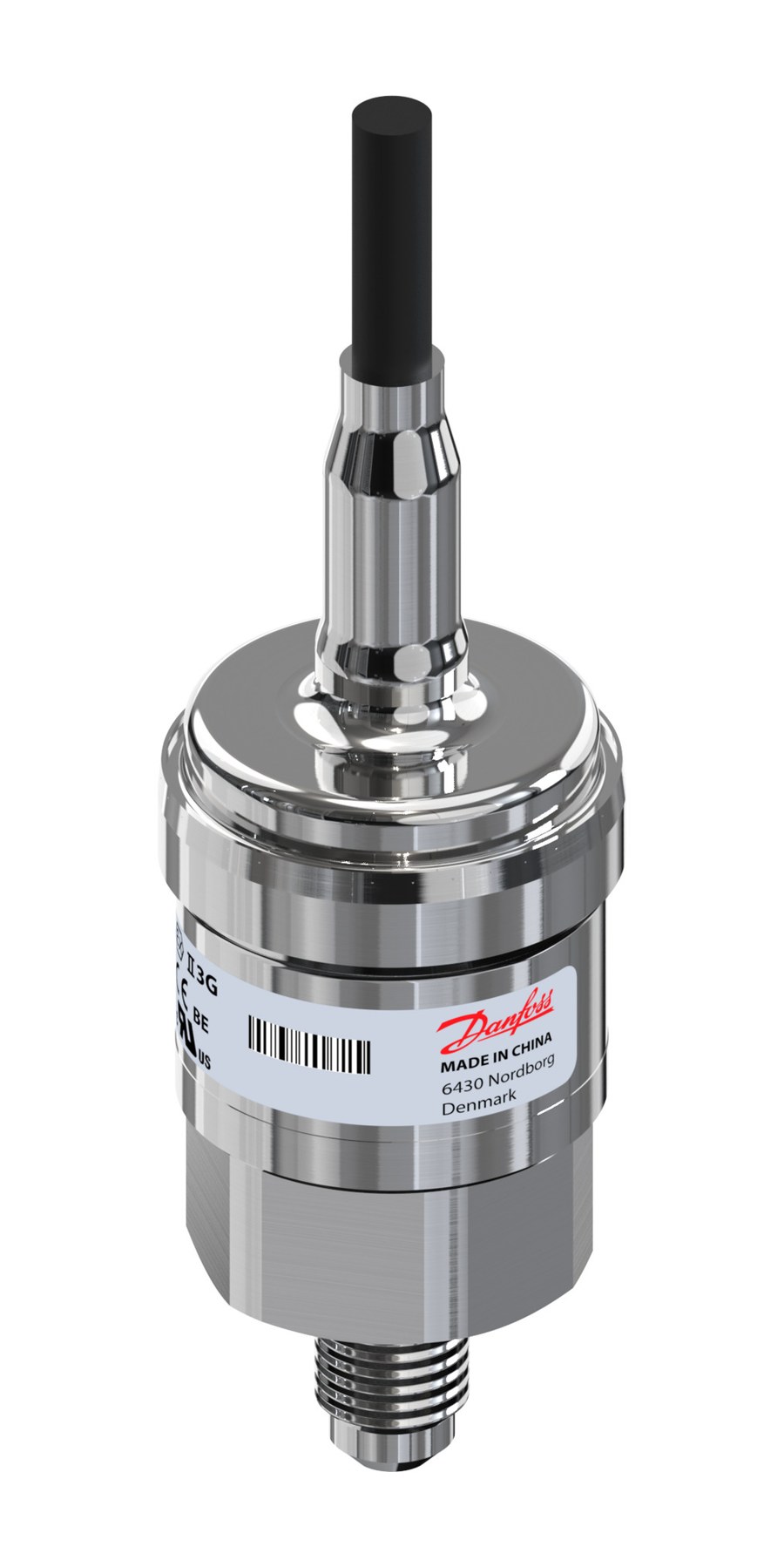

Danfoss AKS 33 Pressure Transmitter 0 to 25 bar 4-20 mA
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AKS 33 pressure transmitter, genuine OEM code 060G2067. Measuring range 0 to 25 bar (0 to 362.5 psi), 4-20 mA (2-wire), 316L stainless steel wetted parts. 7/16-20 UNF flare 1/4 in (male) pressure connection; Screened cable, 2 m. AKS 33 4-20 mA transmitter, 7/16-20 UNF flare, 2 m cable; 0 to 25 bar range. EAN 5702422069645.
Technical Specifications
- Type
- AKS 33
- Range
- 0 to 25 bar (0 to 362.5 psi)
- Output
- 4-20 mA (2-wire)
- Supply
- 9-32 V DC
- Wetted parts
- AISI 316L stainless steel
- Pressure connection
- 7/16-20 UNF flare 1/4 in (male)
- Electrical connection
- Screened cable, 2 m
- Reference
- sealed gauge
- Enclosure
- IP67
- Media temp
- -40 to 85°C
- Approvals
- ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US)
- EAN
- 5702422069645
- Part number
- 060G2067
- Net weight
- 0.226 Kilogram
- Product group
- Sensors
- + supply
- Brown
- - common
- Black
- Accuracy, max. [±FS%]
- 0.8 %
- Accuracy, typical [±FS%]
- 0.3 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 85 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 185 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- Approval standard
- 6967179
- Cable length [in]
- 79 in
- Cable length [m]
- 2 m
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 80 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 176 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. comments
- Screened
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 22.4
- In scope of WEEE
- Yes
- International Article Number
- 5702422069645
- Intrinsically safe
- No
- Low Clipping level
- 3.6
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 185 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Output signal
- Current
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Overload pressure max. [bar]
- 40 bar
- Pressure connection notes
- Flare 1/4 in
- Pressure connection size
- 7/16-20
- Pressure connection standard
- ASME B1.1
- Pressure connection type
- UNF
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 25 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 362.5 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Sealed gauge
- Pulse-snubber
- No
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- AKS 33-2431-A3BC08-0
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 9 V
- UL mark
- Yes
Standards & Compliance
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- SAE J513 flare
- Pressure Rating
- 0 to 25 bar
- Temperature Range
- -40 to 85°C
- IP Rating
- IP67
- Classification / Approval
- EAC; RoHS
- HS Code
- 9026.20
Compatibility & Fitment
Flare 1/4 in service-valve port; two-wire current loop 9-32 V DC.
