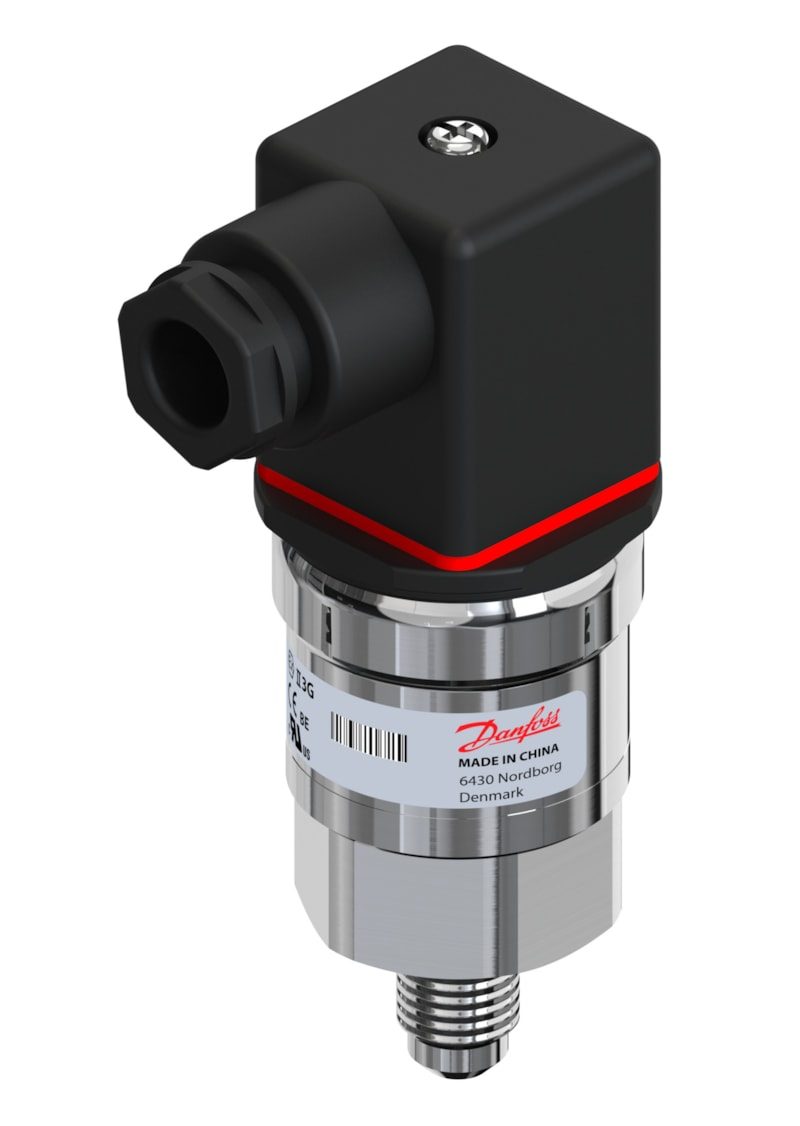

Danfoss AKS 32 Pressure Transmitter -1 to 6 bar 1-5 V (060G2068)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss AKS 32 pressure transmitter, genuine OEM code 060G2068. Measuring range -1 to 6 bar (-14.5 to 87 psi), 1-5 V (voltage output), 316L stainless steel wetted parts. 7/16-20 UNF flare 1/4 in (male) pressure connection; Angular connector Pg 9, EN 175301-803-A. AKS 32 voltage-output (1-5 V) refrigeration transmitter with 7/16-20 UNF flare fitting and angular Pg 9 connector. EAN 5702422079446. P/N 060G2068.
Specifications
- Part number
- 060G2068
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- -1 to 6 bar
- Temperature range
- -40 to 85°C
- IP rating
- IP65
- Thread standard
- SAE J513 flare
Compatibility
1-5 V voltage output suits controllers with a voltage input (distinct from the 4-20 mA AKS 33). Flare 1/4 in service-valve port.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
