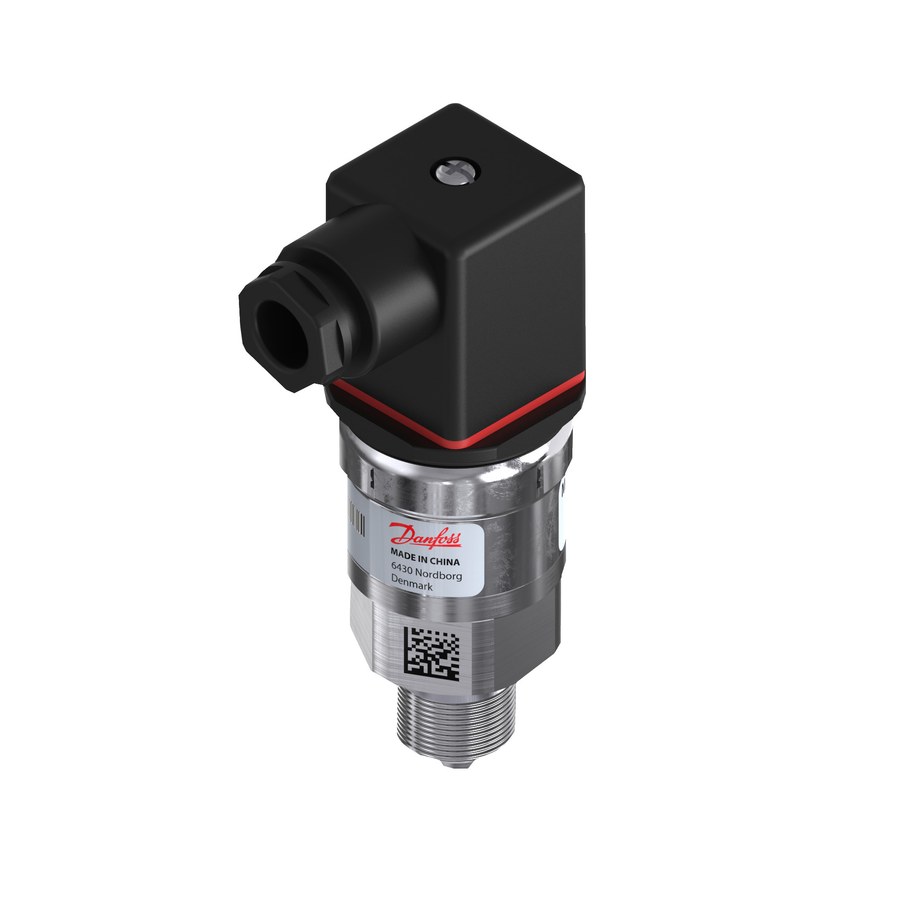

Danfoss AKS 32 Pressure Transmitter -1 to 39 bar 0-10 V (060G2079)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss AKS 32 pressure transmitter, genuine OEM code 060G2079. Measuring range -1 to 39 bar (-14.5 to 565.6 psi), 0-10 V (voltage output), 316L stainless steel wetted parts. G 3/8 male (EN 837) pressure connection; Angular connector Pg 9, EN 175301-803-A. AKS 32 voltage-output (0-10 V) transmitter with G 3/8 EN 837 male gauge port and angular Pg 9 connector; -1 to 39 bar compound range. EAN 5702422093930. P/N 060G2079.
Specifications
- Part number
- 060G2079
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- -1 to 39 bar
- Temperature range
- -40 to 85°C
- IP rating
- IP65
- Thread standard
- EN 837
Compatibility
0-10 V output needs a 15-32 V DC supply (distinct from the 1-5 V and 4-20 mA variants). G 3/8 EN 837 process port.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
