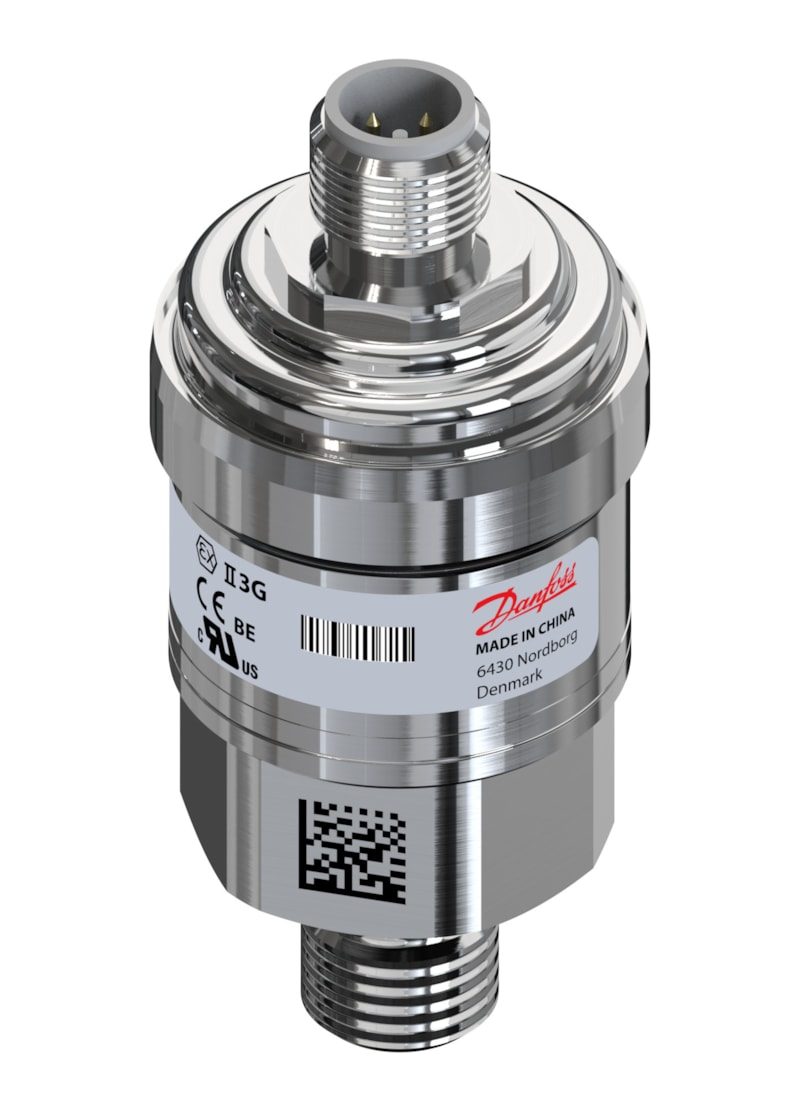

Danfoss MBS 3350 Pressure Transmitter 0 to 400 bar 4-20 mA

Danfoss MBS 3350 pressure transmitter, genuine OEM code 060G6176. Measuring range 0 to 400 bar (0 to 5800 psi), 4-20 mA (2-wire), 316L stainless steel wetted parts. G 1/4 male (DIN 3852-E / ISO 1179-2, Form E) pressure connection; M12 x 1 connector, 4-pin male (IEC 61076-2-101). MBS 3350 high-pressure transmitter, 0 to 400 bar, with G 1/4 Form E port and M12 4-pin connector for mobile/hydraulic use. EAN 5702428478434.

Type

MBS 3350

Range

0 to 400 bar (0 to 5800 psi)

Output

4-20 mA (2-wire)

Supply

9-32 V DC

Wetted parts

AISI 316L stainless steel

Pressure connection

G 1/4 male (DIN 3852-E / ISO 1179-2, Form E)

Electrical connection

M12 x 1 connector, 4-pin male (IEC 61076-2-101)

Reference

sealed gauge

Enclosure

IP67

Media temp

-20 to 85°C

Approvals

ATEX, CE, UL Recognized (C UL US)

EAN

5702428478434

Part number

060G6176

Net weight

0.142 Kilogram

Product group

Sensors

+ supply

Pin 1

- common

Pin 3

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-25 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-13 °F

Approval

C UL US UL Recognized

Autofrettage Pressure

1600 bar

CE mark

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

212 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection size

4 pin

Electrical connection standard

IEC 61076-2-101

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

22.4

In scope of WEEE

Yes

International Article Number

5702428478434

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-20 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-4 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

1500 bar

Overload pressure max. [psi]

21756 psi

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

400 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

5800 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Pulse-snubber

Yes

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

Specification key

MBS 3350-3631-E3GB04-1

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL mark

Yes

Material

AISI 316L stainless steel wetted parts

Thread Standard

DIN 3852-E / ISO 1179-2

Pressure Rating

0 to 400 bar

Temperature Range

-20 to 85°C

IP Rating

IP67

Classification / Approval

EAC; RoHS

HS Code

9026.20
