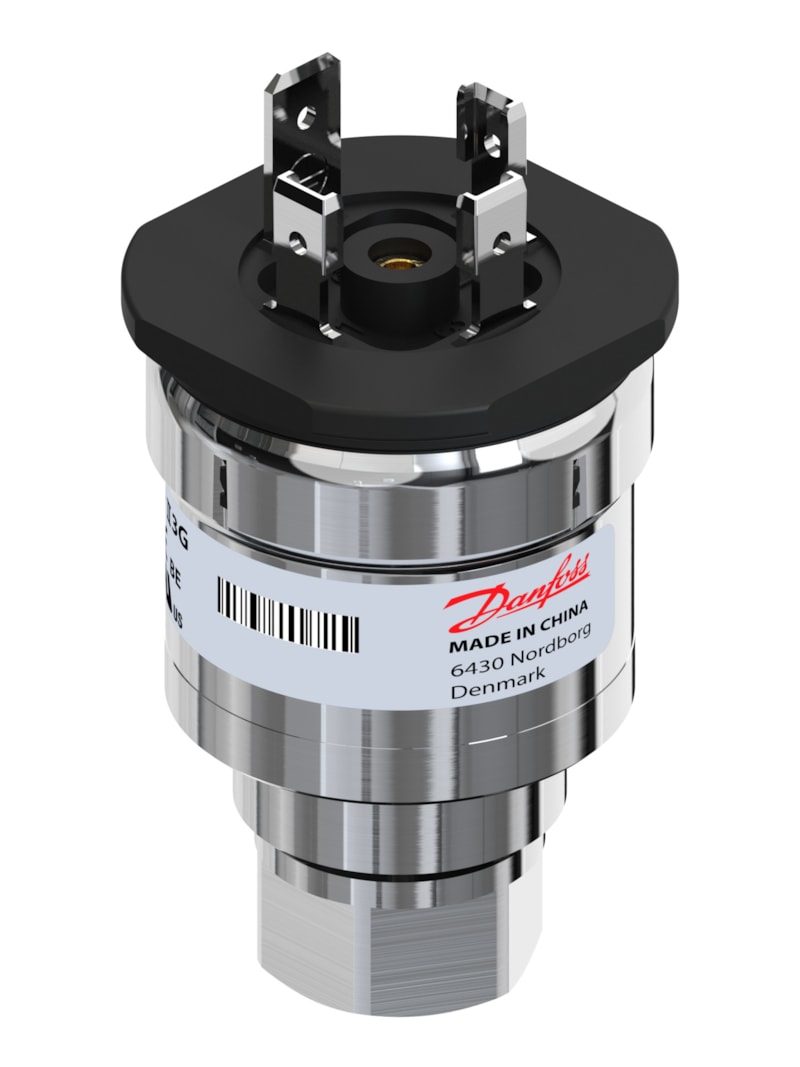

Danfoss AKS 32R Pressure Transmitter 0 to 32 bar Ratiometric (060G6324)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss AKS 32R ratiometric pressure transmitter for refrigeration and air-conditioning. Range 0 to 32 bar (0 to 464 psi), ratiometric 0.5-4.5 V output on a 4.5-5.5 V DC supply, AISI 316L wetted parts. 7/16-20 UNF flare 1/4 in with valve depressor; angular connector Pg 9 (EN 175301-803-A). Spec key AKS 32R-K336-A0BF08-0. EAN 5702428880435. P/N 060G6324.
Specifications
- Part number
- 060G6324
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 32 bar
- Temperature range
- -40°C to +85°C (medium/ambient)
- IP rating
- IP65
- Thread standard
- 7/16-20 UNF flare 1/4 in (ISO 8434-1)
Compatibility
Ratiometric refrigeration transmitter; 7/16-20 UNF flare 1/4 in with valve depressor for Schrader-type service ports.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
