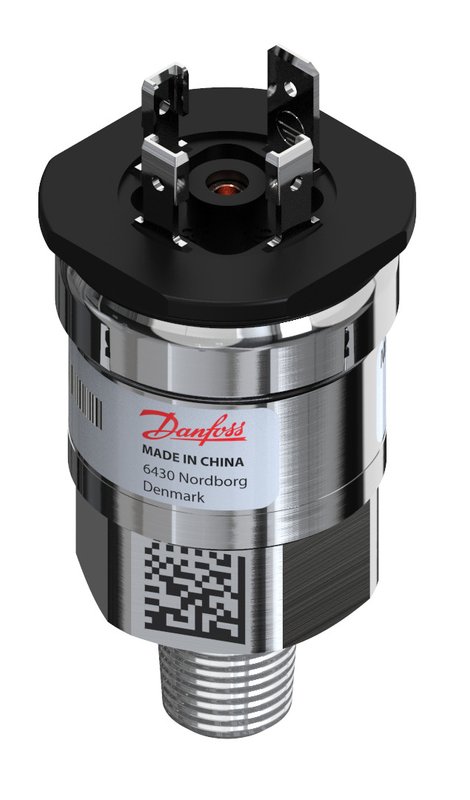

Danfoss AKS 2050 Pressure Transmitter -1 to 59 bar Ratiometric (060G6342)
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AKS 2050 ratiometric pressure transmitter for refrigeration and HVAC. Range -1 to 59 bar (-14.5 to 855.5 psi), ratiometric output at 10-90% of a 4.5-5.5 V DC supply, AISI 316L wetted parts. 1/4-18 NPT port; angular connector 4-pin (EN 175301-803-A). Spec key AKS 2050-N636-A0EC04-0. EAN 5702428885744.
Technical Specifications
- Type
- AKS 2050 (ratiometric)
- Range
- -1 to 59 bar (-14.5 to 855.5 psi)
- Reference
- sealed gauge
- Output
- ratiometric 10-90% of supply
- Supply
- 4.5-5.5 V DC
- Wetted parts
- AISI 316L stainless steel
- Pressure connection
- 1/4-18 NPT (ANSI/ASME B1.20.1)
- Electrical connection
- Angular connector 4-pin, EN 175301-803-A
- Enclosure
- IP65
- Media temp
- -40 to 85°C
- Spec key
- AKS 2050-N636-A0EC04-0
- EAN
- 5702428885744
- Part number
- 060G6342
- Net weight
- 0.126 Kilogram
- Product group
- Sensors
- + output
- Pin 3
- + supply
- Pin 1
- - common
- Pin 2
- Accuracy, max. [±FS%]
- 1 %
- Accuracy, typical [±FS%]
- 0.5 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 85 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 185 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- Approval standard
- E227388
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 40 °C
- Compensated temp. range [°C] [min]
- -30 °C
- Compensated temp. range [°F] [max]
- 104 °F
- Compensated temp. range [°F] [min]
- -22 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male
- Electrical connection size
- 4 pin
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 98
- In scope of WEEE
- Yes
- International Article Number
- 5702428885744
- Intrinsically safe
- No
- Low Clipping level
- 4
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 185 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Output signal
- Ratio metric
- Overload pressure max. [bar]
- 354 bar
- Pressure connection HEX [mm]
- 27 mm
- Pressure connection size
- 1/4-18
- Pressure connection standard
- ANSI/ASME B1.20.1
- Pressure connection type
- NPT
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 59 bar
- Pressure range [bar] [min]
- -1 bar
- Pressure range [psi] [max]
- 855.5 psi
- Pressure range [psi] [min]
- -14.5 psi
- Pressure reference
- Sealed gauge
- Pulse-snubber
- Yes
- Ratiometric of Vsupply [%] [max]
- 90 %
- Ratiometric of Vsupply [%] [min]
- 10 %
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- AKS 2050-N636-A0EC04-0
- Supply voltage [V] DC [max]
- 5.5 V
- Supply voltage [V] DC [min]
- 4.5 V
- UL mark
- Yes
Standards & Compliance
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- 1/4-18 NPT (ANSI/ASME B1.20.1)
- Pressure Rating
- -1 to 59 bar
- Temperature Range
- -40°C to +85°C (medium/ambient)
- IP Rating
- IP65
- Classification / Approval
- CE; EAC; RoHS
- HS Code
- 9026.20
Compatibility & Fitment
AKS 2050 ratiometric transmitter, 1/4-18 NPT port, angular connector; for refrigeration/HVAC controls reading 10-90% of a 5 V supply.
