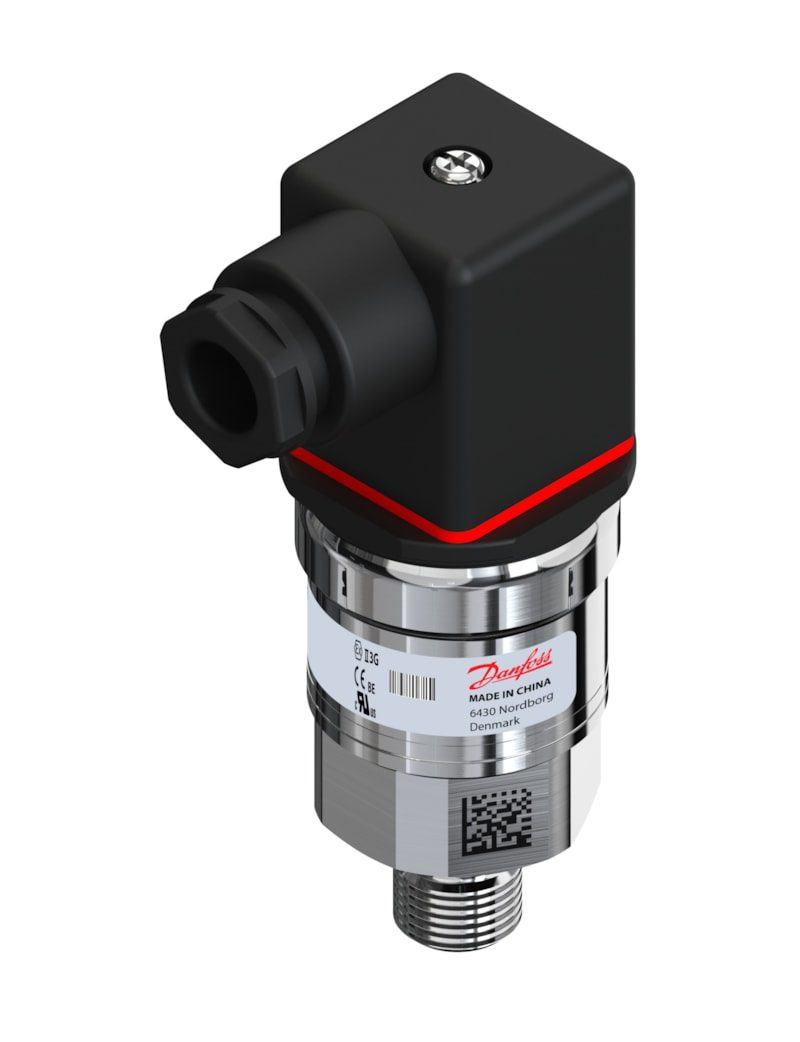

Danfoss MBS 3000 Pressure Transmitter -1 to 3 bar Angular (060G6361)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3000 general-purpose compound pressure transmitter. Range -1 to 3 bar (-14.5 to 43.5 psi), 4-20 mA 2-wire output, AISI 316L wetted parts. G 1/4 male Form E (DIN 3852-E) port; angular connector Pg 9 (EN 175301-803-A, IP65). EAN 5702428888394. P/N 060G6361.
Specifications
- Part number
- 060G6361
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- -1 to 3 bar
- Temperature range
- -40°C to +85°C (medium/ambient)
- IP rating
- IP65
- Thread standard
- G 1/4 male (DIN 3852-E / ISO 1179-2, Form E)
Compatibility
MBS 3000 compound range with G 1/4 Form E port and angular Pg 9 connector; general industrial vacuum/pressure sensing.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
