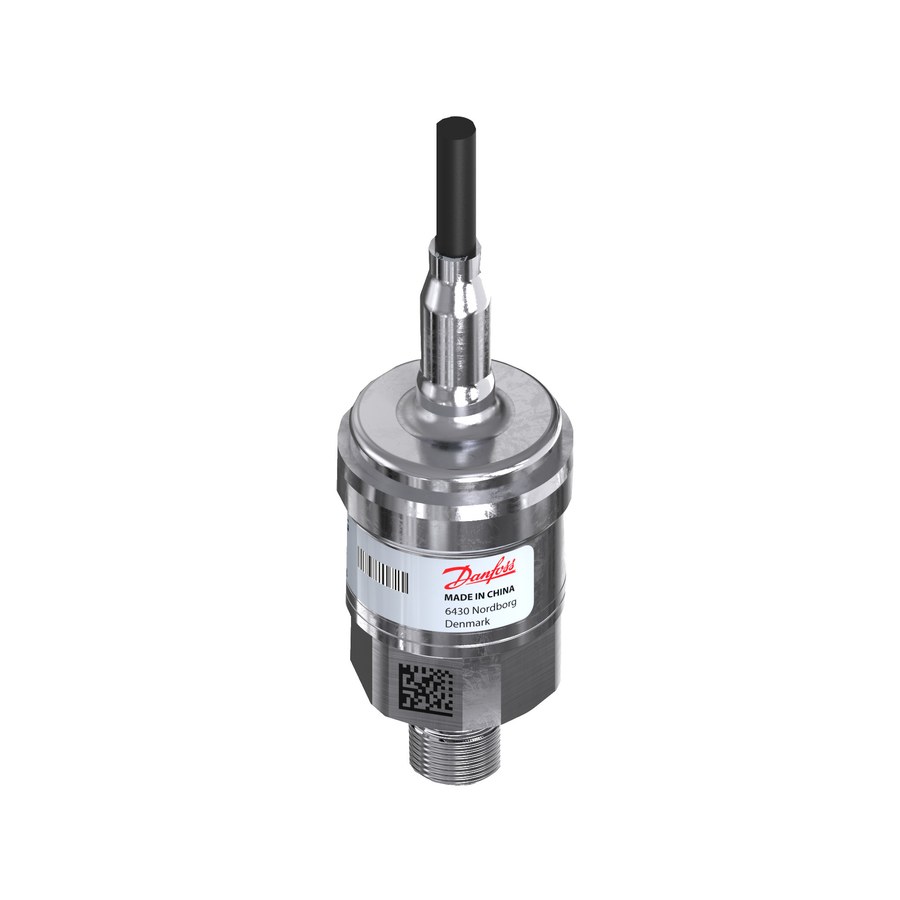

Danfoss MBS 3050 Pressure Transmitter 0 to 25 bar Cable (060G6391)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3050 pressure transmitter with integrated pressure snubber. Range 0 to 25 bar (0 to 362.5 psi), 4-20 mA 2-wire output, AISI 316L wetted parts. G 1/4 male Form E port; screened cable outlet (IP67). EAN 5702428903844. P/N 060G6391.
Specifications
- Part number
- 060G6391
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 25 bar
- Temperature range
- -40°C to +85°C (medium/ambient)
- IP rating
- IP67
- Thread standard
- G 1/4 male (DIN 3852-E / ISO 1179-2, Form E)
Compatibility
MBS 3050 with pressure snubber, G 1/4 Form E port and integral screened cable; pulsating-media / IP67 sensing.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
