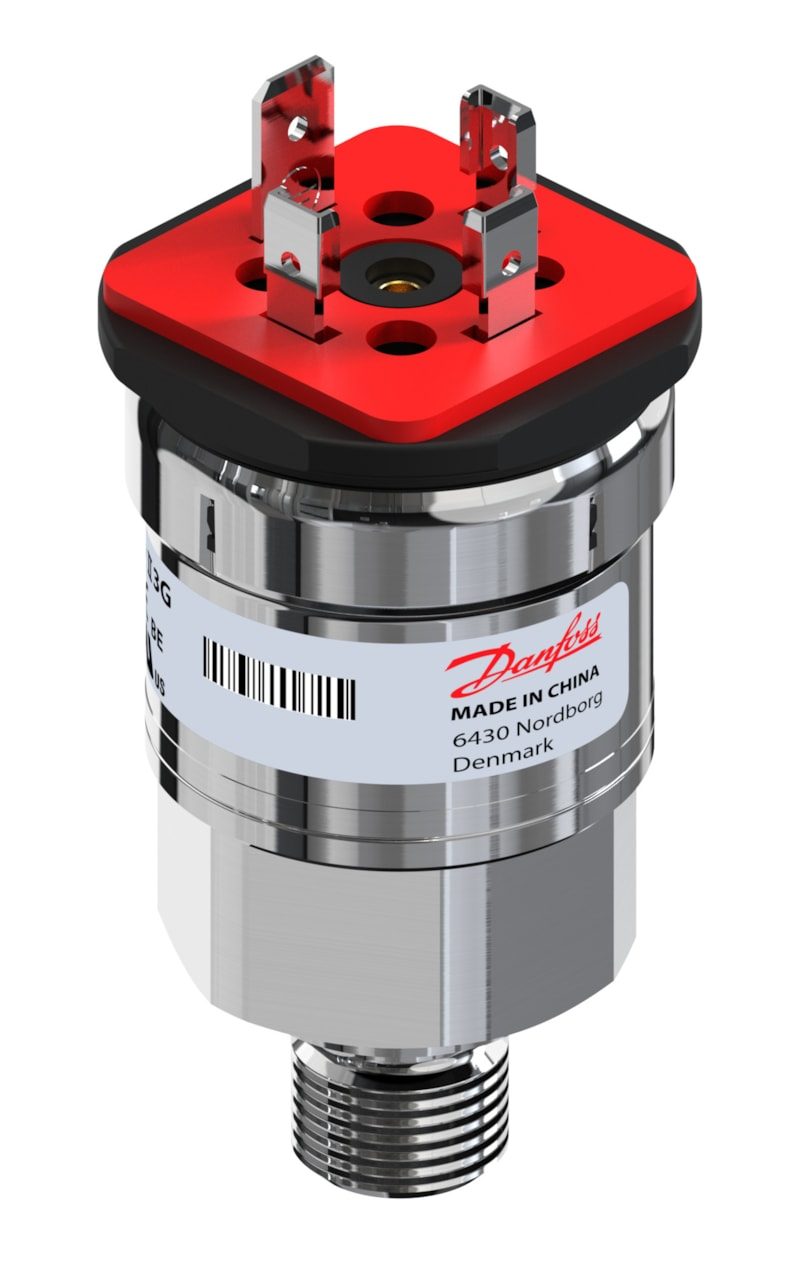

Danfoss MBS 3050 Pressure Transmitter 0 to 400 bar Angular (060G6426)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3050 pressure transmitter with pulse-snubber for pressure-peak-loaded systems. Range 0 to 400 bar (0 to 5800 psi), 4-20 mA 2-wire output, AISI 316L wetted parts. G 1/4 male Form E port; 4-pin angular connector (EN 175301-803-A, IP65). EAN 5702428912518. P/N 060G6426.
Specifications
- Part number
- 060G6426
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 400 bar Angular
- Temperature range
- -40°C to +85°C (medium/ambient)
- IP rating
- IP65
- Thread standard
- G 1/4 male (DIN 3852-E / ISO 1179-2, Form E)
Compatibility
MBS 3050 with integrated pulse-snubber for high-range 400 bar peak/pulsating pressure; G 1/4 Form E port.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
