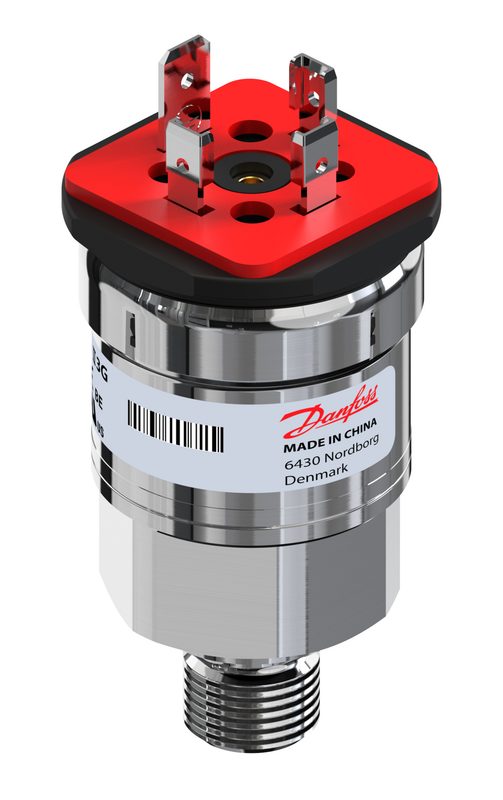

Danfoss AKS 3050 Pressure Transmitter -1 to 25 bar Angular

Danfoss AKS 3050 pressure transmitter with integrated pulse-snubber for refrigeration/HVAC with pressure peaks. Range -1 to 25 bar (-14.5 to 362.5 psi), 4-20 mA 2-wire output, AISI 316L wetted parts. M16 x 1.5 male connection; 4-pin angular connector (EN 175301-803-A, IP65). EAN 5702428915403.

Type

AKS 3050 (integrated pulse-snubber)

Range

-1 to 25 bar (-14.5 to 362.5 psi)

Reference

sealed gauge (compound)

Output

4-20 mA (2-wire)

Supply

10-30 V DC

Wetted parts

AISI 316L stainless steel

Pressure connection

M16 x 1.5 male, ISO 261

Electrical connection

Angular connector 4-pin, EN 175301-803-A

Enclosure

IP65

Media temp

-40 to 85°C

EAN

5702428915403

Part number

060G6430

Net weight

0.126 Kilogram

Product group

Sensors

+ supply

Pin 1

- common

Pin 2

Accuracy, max. [±FS%]

2 %

Accuracy, typical [±FS%]

1 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX

Approval comments

ATEX Ex ec IIA T4 Gc

Approval standard

E227388

CE mark

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection size

4 pin

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

22.4

In scope of WEEE

Yes

International Article Number

5702428915403

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

33 bar

Pressure connection size

16 x 1.5

Pressure connection standard

ISO 261

Pressure connection type

M

Pressure Male/Female

Male

Pressure range [bar] [max]

25 bar

Pressure range [bar] [min]

-1 bar

Pressure range [psi] [max]

362.5 psi

Pressure range [psi] [min]

-14.5 psi

Pressure reference

Sealed gauge

Pulse-snubber

Yes

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

Specification key

AKS 3050-N231-A0CD21-0

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL mark

Yes

Material

AISI 316L stainless steel wetted parts

Thread Standard

M16 x 1.5 male (ISO 261)

Pressure Rating

-1 to 25 bar Angular

Temperature Range

-40°C to +85°C (medium/ambient)

IP Rating

IP65

Classification / Approval

CE; EAC; UL Recognized; RoHS

HS Code

9026.20
