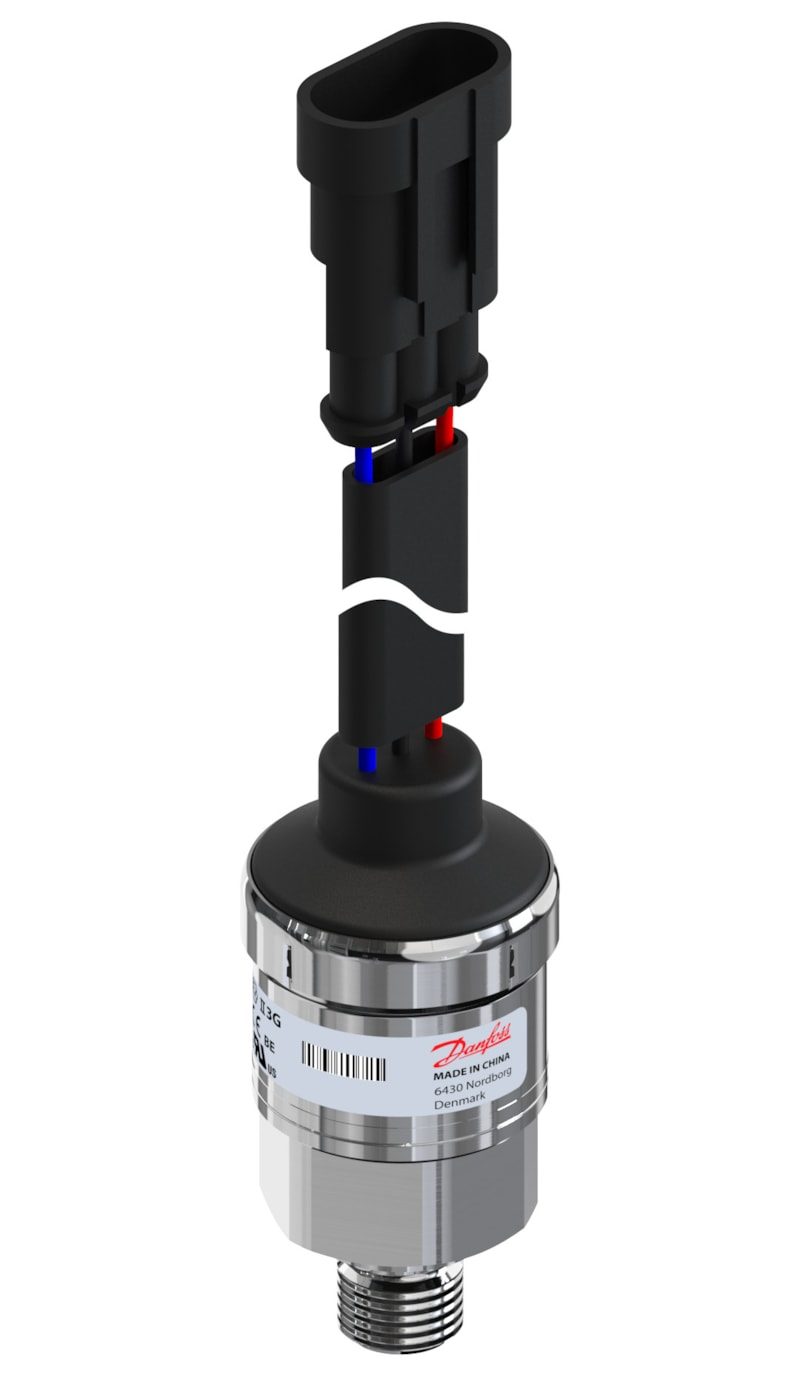

Danfoss MBS 3200 Pressure Transmitter 0 to 16 bar Absolute AMP SuperSeal (060G6455)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3200 heavy-duty pressure transmitter for mobile and off-highway use with high vibration and shock. Absolute range 0 to 16 bar (0 to 232 psi), 4-20 mA 2-wire output, AISI 316L stainless steel wetted parts. G 1/4 male (EN 837) port; AMP SuperSeal 3-pin male with flying leads. Spec key MBS 3200-2221-A8AB04-0. Absolute reference, IP67, overload 96 bar. Distinct from sealed-gauge 060G6310. EAN 5702428928113. P/N 060G6455.
Specifications
- Part number
- 060G6455
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 16 bar (0 to 232 psi) absolute
- Temperature range
- -40 C to +125 C (medium)
- IP rating
- IP67
- Thread standard
- G 1/4 male (EN 837)
Compatibility
MBS 3200 absolute-reference variant (spec key -2221-); twin of sealed-gauge 060G6310 (-2231-) differing only by absolute vs gauge reference and EAN.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
