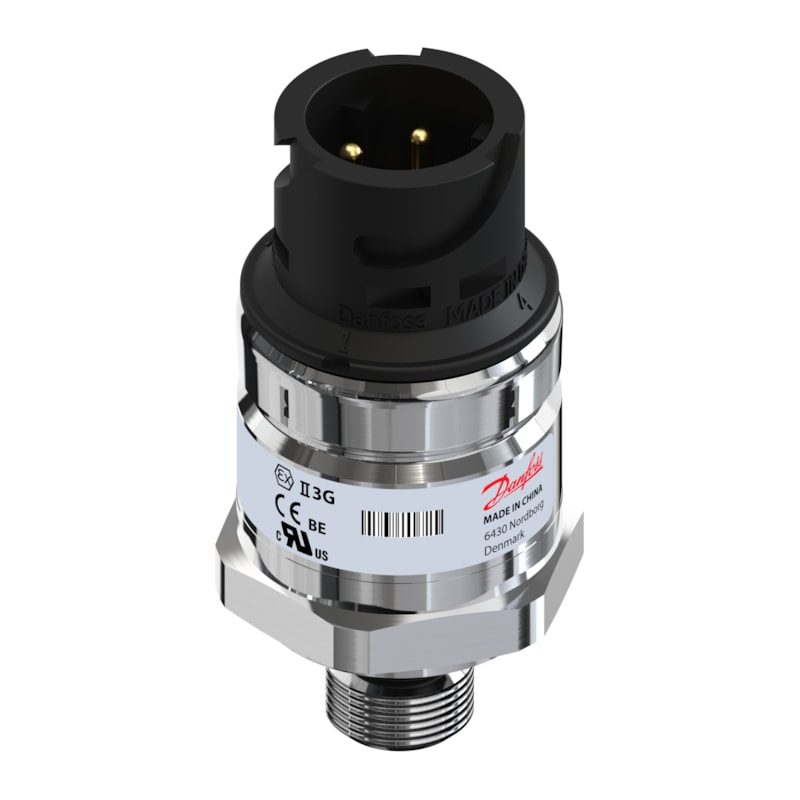

Danfoss MBS 3300 Pressure Transmitter 0.34 to 1.52 bar Absolute Bayonet (060G6461)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3300 compact pressure transmitter. Absolute range 0.34 to 1.52 bar (5 to 22 psi), 4-20 mA 2-wire output, AISI 316L stainless steel wetted parts. M14 x 1.5 (ISO 6149-2) pressure connection; bayonet 3-pin connector (ISO 15170). Spec key MBS 3300-D721-E8CD14-3. Absolute reference, IP67, overload 7 bar. EAN 5702428930215. P/N 060G6461.
Specifications
- Part number
- 060G6461
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0.34 to 1.52 bar (5 to 22 psi) absolute
- Temperature range
- -20 C to +125 C (medium)
- IP rating
- IP67
- Thread standard
- M14 x 1.5 (ISO 6149-2)
Compatibility
MBS 3300 low-range absolute transmitter with M14 x 1.5 port and ISO 15170 bayonet connector for automotive/mobile use; unique connection in the MBS 3300 range.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
