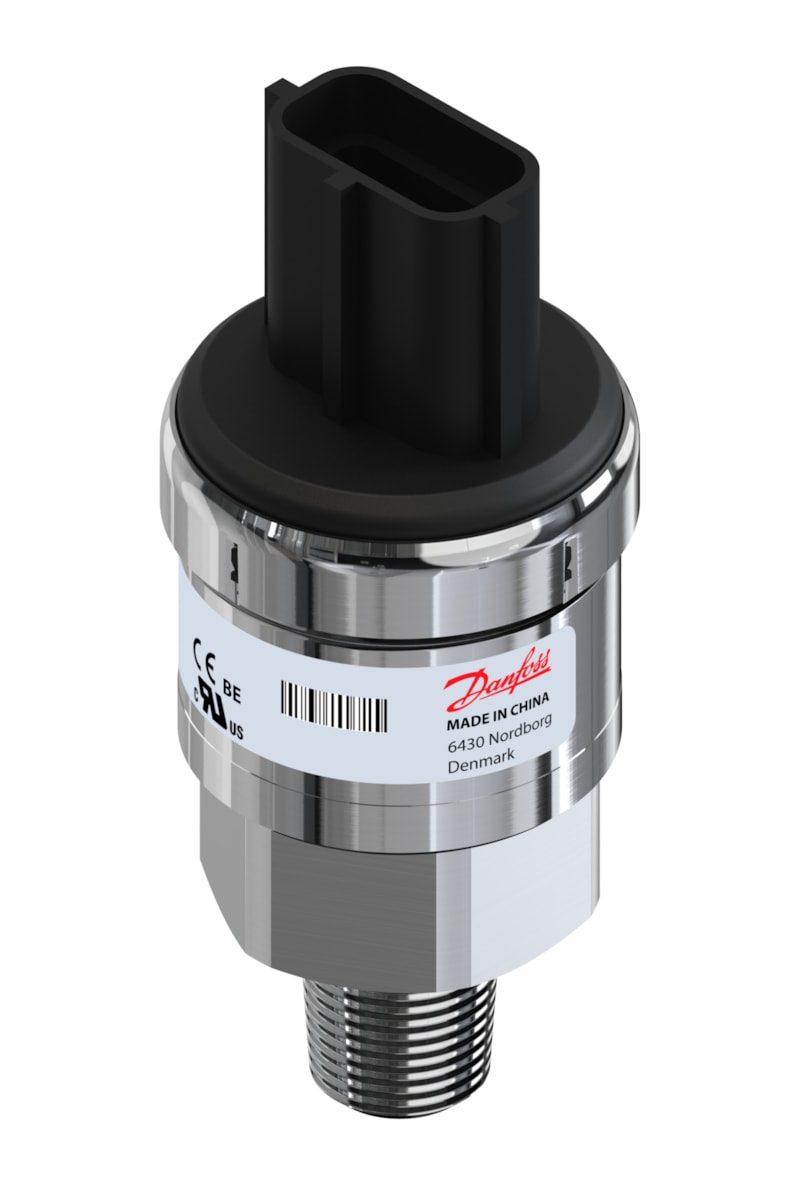

Danfoss AKS 32R Pressure Transmitter 0 to 13.8 bar Ratiometric NPTF (060G6490)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss AKS 32R ratiometric pressure transmitter for refrigeration and HVAC controls. Range 0 to 13.8 bar (0 to 200 psi), 0.5-4.5 V ratiometric output at 5 V DC supply, AISI 316L stainless steel wetted parts. NPTF 1/4-18 (ANSI/ASME B1.20.1) pressure connection; AMP Econoseal J-series 3-pin male. Spec key AKS 32R-6236-G1AF08-0. Sealed gauge, IP67. EAN 5702428939591. P/N 060G6490.
Specifications
- Part number
- 060G6490
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 13.8 bar (0 to 200 psi)
- Temperature range
- -40 C to +85 C (medium)
- IP rating
- IP67
- Thread standard
- NPTF 1/4-18 (ANSI/ASME B1.20.1)
Compatibility
AKS 32R ratiometric transmitter with NPTF 1/4-18 port and AMP Econoseal J plug; distinct range/connection from 060G6156 (0-16 bar G-conn) and 060G6323 (-1..12 bar).
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
