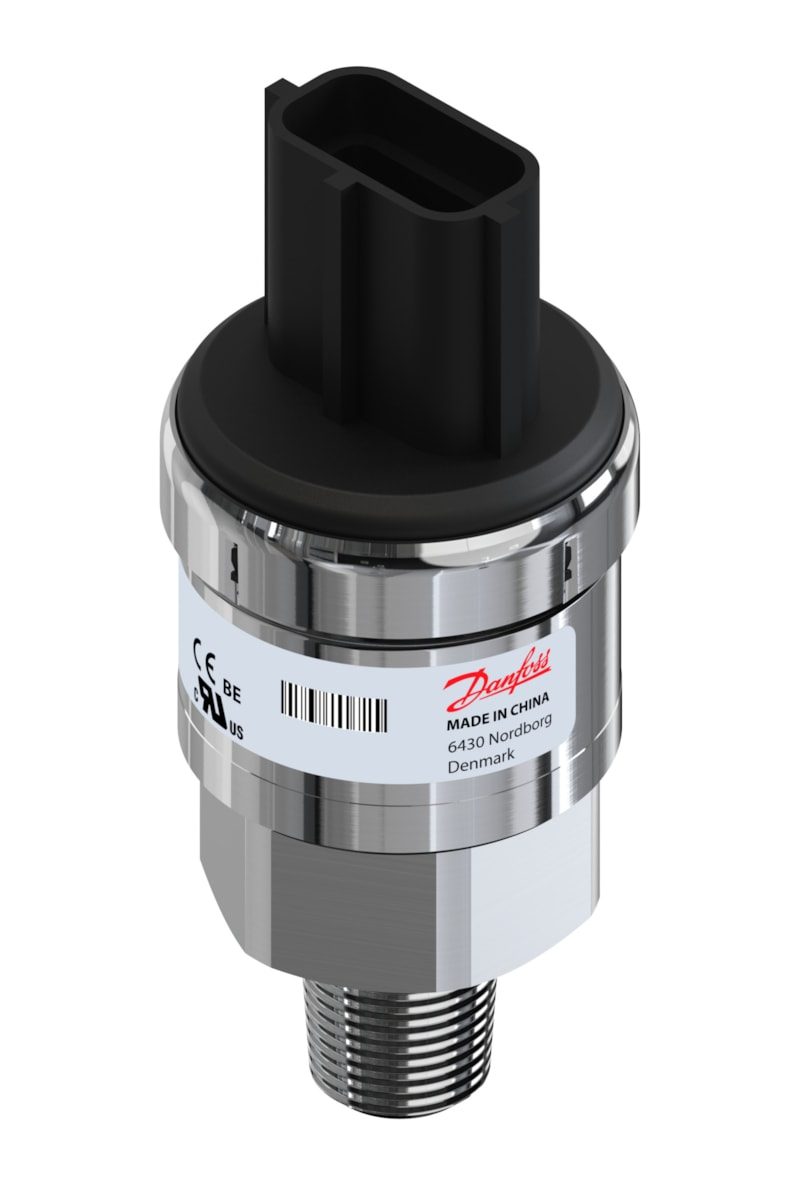

Danfoss AKS 32R Pressure Transmitter 0 to 44.8 bar Ratiometric NPTF (060G6493)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss AKS 32R pressure transmitter, genuine OEM code 060G6493. Measuring range 0 to 44.8 bar (0 to 650 psi), ratiometric 0.5-4.5 V output, AISI 316L stainless steel wetted parts. NPTF 1/4-18 (ANSI/ASME B1.20.1) pressure connection; AMP Econoseal J-series, 3-pin male. Reference sealed gauge, enclosure IP67. For refrigeration and HVAC controls. EAN 5702428941501. P/N 060G6493.
Specifications
- Part number
- 060G6493
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 44.8 bar (0 to 650 psi)
- Temperature range
- -40 to +85 C (medium)
- IP rating
- IP67
- Thread standard
- NPTF 1/4-18 (ANSI/ASME B1.20.1)
Compatibility
AKS 32R ratiometric NPTF 1/4-18 with AMP Econoseal J plug; new 0-44.8 bar range above 060G6492 (0-27.6 bar).
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
