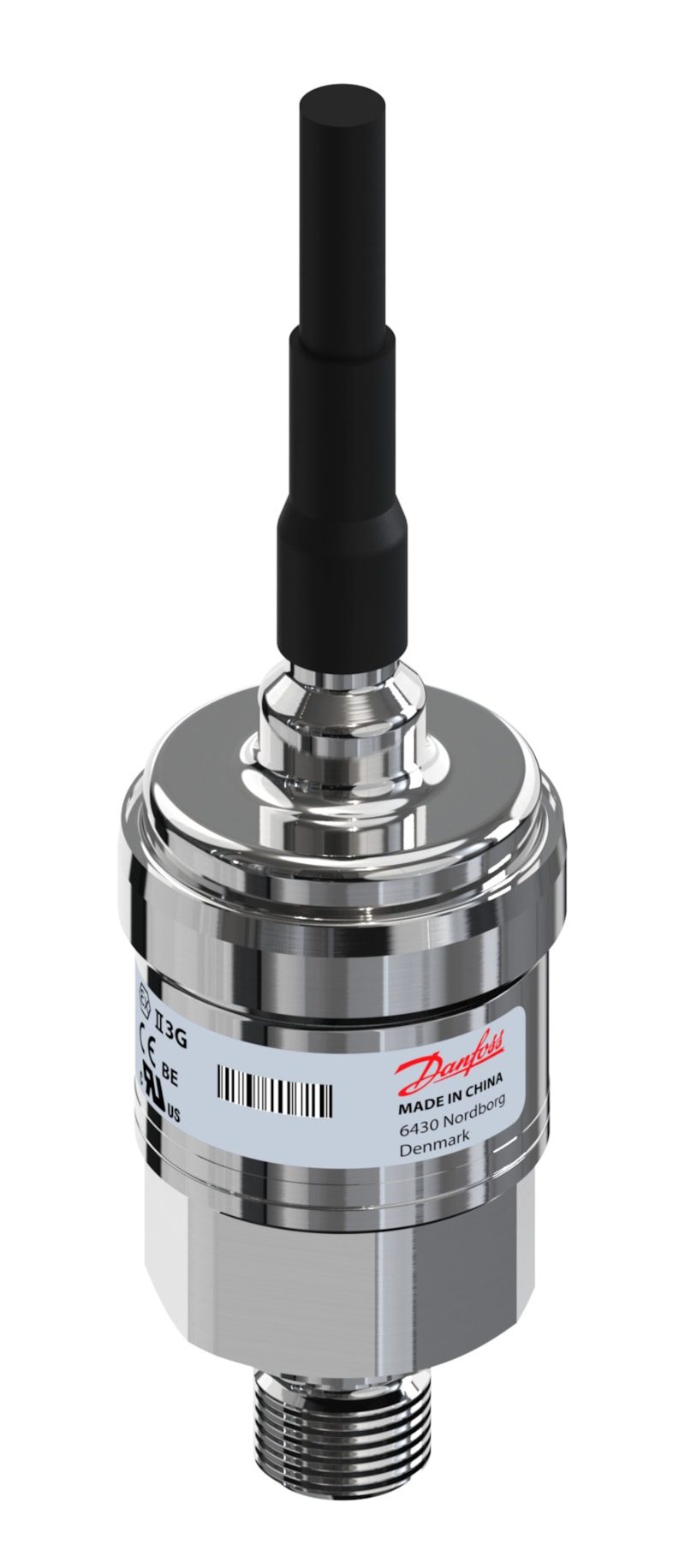

Danfoss MBS 3300 Pressure Transmitter 0 to 40 bar Form E Cable 4-20 mA (060G6508)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3300 pressure transmitter, genuine OEM code 060G6508. Measuring range 0 to 40 bar (0 to 580 psi), 4-20 mA (2-wire) output, AISI 316L stainless steel wetted parts. G 1/4 (ISO 1179-2 Form E, DIN 3852-E) pressure connection; Cable, 2 m (screened). Reference sealed gauge, enclosure IP67. For industrial and refrigeration measurement. EAN 5702428949095. P/N 060G6508.
Specifications
- Part number
- 060G6508
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 40 bar (0 to 580 psi)
- Temperature range
- -40 to +125 C (medium)
- IP rating
- IP67
- Thread standard
- G 1/4 (ISO 1179-2 Form E, DIN 3852-E)
Compatibility
MBS 3300 sealed-gauge G 1/4 Form E with 2 m screened cable; distinct outlet from 4-pin 060G6451 and angular 060G6125.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
