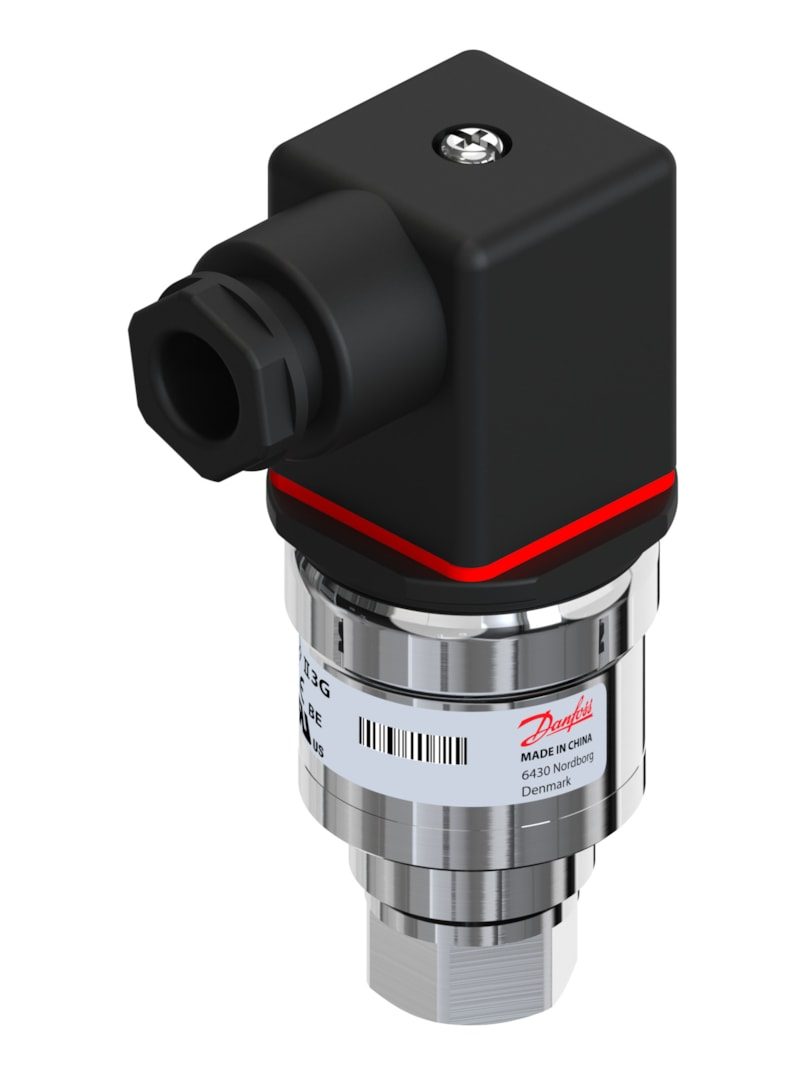

Danfoss AKS 3000 Pressure Transmitter 0 to 8 bar UNF Angular 4-20 mA
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AKS 3000 pressure transmitter, genuine OEM code 060G6517. Measuring range 0 to 8 bar (0 to 116 psi), 4-20 mA (2-wire) output, AISI 316L stainless steel wetted parts. UNF 7/16-20 (ISO 8434-1) pressure connection; Angular connector, Pg 9 (EN 175301-803-A). Reference sealed gauge, enclosure IP65. For refrigeration and HVAC controls. EAN 5702428949668.
Technical Specifications
- Type
- AKS 3000
- Range
- 0 to 8 bar (0 to 116 psi)
- Reference
- sealed gauge
- Output
- 4-20 mA (2-wire)
- Supply
- 9-32 V DC
- Wetted parts
- AISI 316L stainless steel
- Pressure connection
- UNF 7/16-20 (ISO 8434-1)
- Electrical connection
- Angular connector, Pg 9 (EN 175301-803-A)
- Enclosure
- IP65
- Ambient temp
- -40 to +100 C
- Medium temp
- -40 to +125 C
- Overload pressure
- 48 bar
- Response time
- 4 ms max
- Approvals
- ATEX Ex ec IIA T4 Gc; CE; UL; EAC (GOST)
- EAN
- 5702428949668
- Part number
- 060G6517
- Net weight
- 0.125 Kilogram
- Product group
- Sensors
- + supply
- Pin 1
- - supply
- Pin 2
- Accuracy, max. [±FS%]
- 2 %
- Accuracy, typical [±FS%]
- 1 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 100 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 221 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- Approval standard
- 6967179
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 100 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 212 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 22.4
- In scope of WEEE
- Yes
- International Article Number
- 5702428949668
- Intrinsically safe
- No
- Low Clipping level
- 3.6
- Medium temperature range [°C] [max]
- 125 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 257 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.5 %
- Output signal
- Current
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Overload pressure max. [bar]
- 48 bar
- Pressure connection HEX [mm]
- 17 mm
- Pressure connection notes
- Flare 1/4 in w/ valvedepressor
- Pressure connection size
- 7/16-20
- Pressure connection standard
- ISO 8434-1
- Pressure connection type
- UNF
- Pressure Male/Female
- Female
- Pressure range [bar] [max]
- 8 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 116 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Sealed gauge
- Pulse-snubber
- No
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- AKS 3000-CN31-A1BF08-0
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 9 V
- UL mark
- Yes
Standards & Compliance
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- UNF 7/16-20 (ISO 8434-1)
- Pressure Rating
- 0 to 8 bar (0 to 116 psi)
- Temperature Range
- -40 to +125 C (medium)
- IP Rating
- IP65
- Classification / Approval
- ATEX; CE; UL; EAC (GOST); RoHS
- HS Code
- 9026.20
Compatibility & Fitment
AKS 3000 0-8 bar, UNF 7/16-20 port, angular Pg 9 plug; two-wire 4-20 mA loop.
