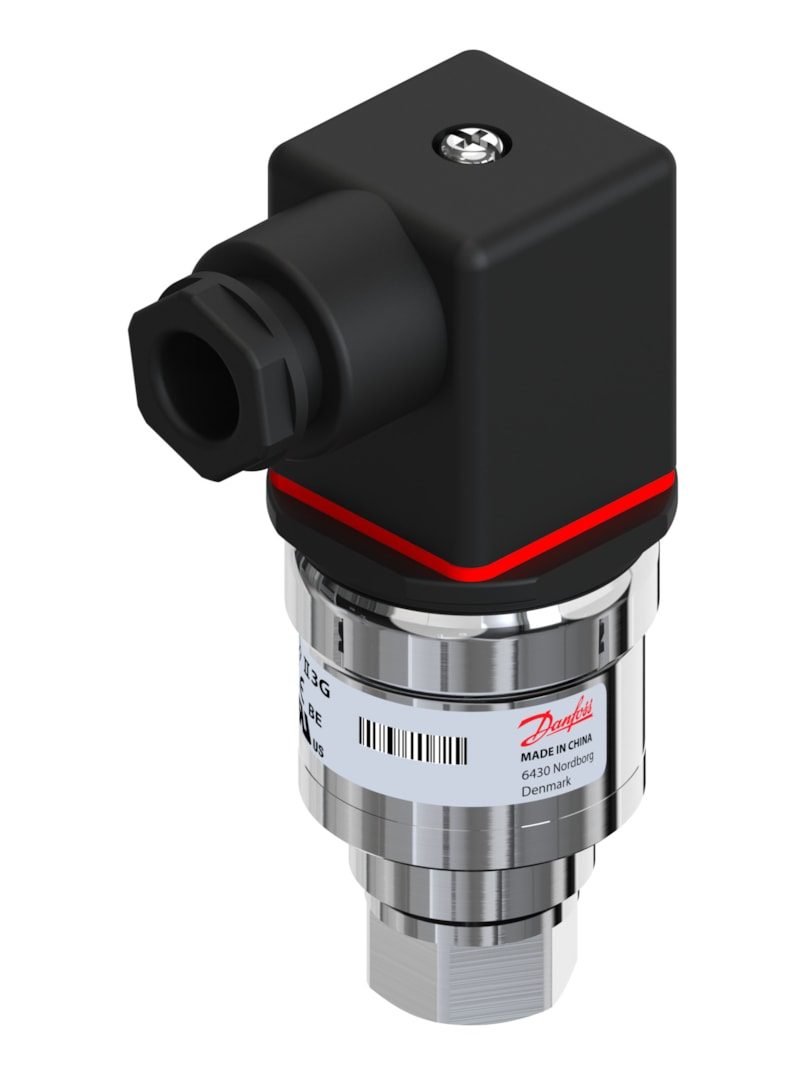

Danfoss AKS 3000 Pressure Transmitter -1 to 16 bar UNF Angular 4-20 mA (060G6519)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss AKS 3000 pressure transmitter, genuine OEM code 060G6519. Measuring range -1 to 16 bar (-14.5 to 232 psi), 4-20 mA (2-wire) output, AISI 316L stainless steel wetted parts. UNF 7/16-20 (ISO 8434-1) pressure connection; Angular connector, Pg 9 (EN 175301-803-A). Reference sealed gauge, enclosure IP65. For refrigeration and HVAC controls. EAN 5702428951500. P/N 060G6519.
Specifications
- Part number
- 060G6519
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- -1 to 16 bar (-14.5 to 232 psi)
- Temperature range
- -40 to +125 C (medium)
- IP rating
- IP65
- Thread standard
- UNF 7/16-20 (ISO 8434-1)
Compatibility
AKS 3000 compound -1..16 bar, UNF 7/16-20 port, angular Pg 9 plug; two-wire 4-20 mA loop.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
