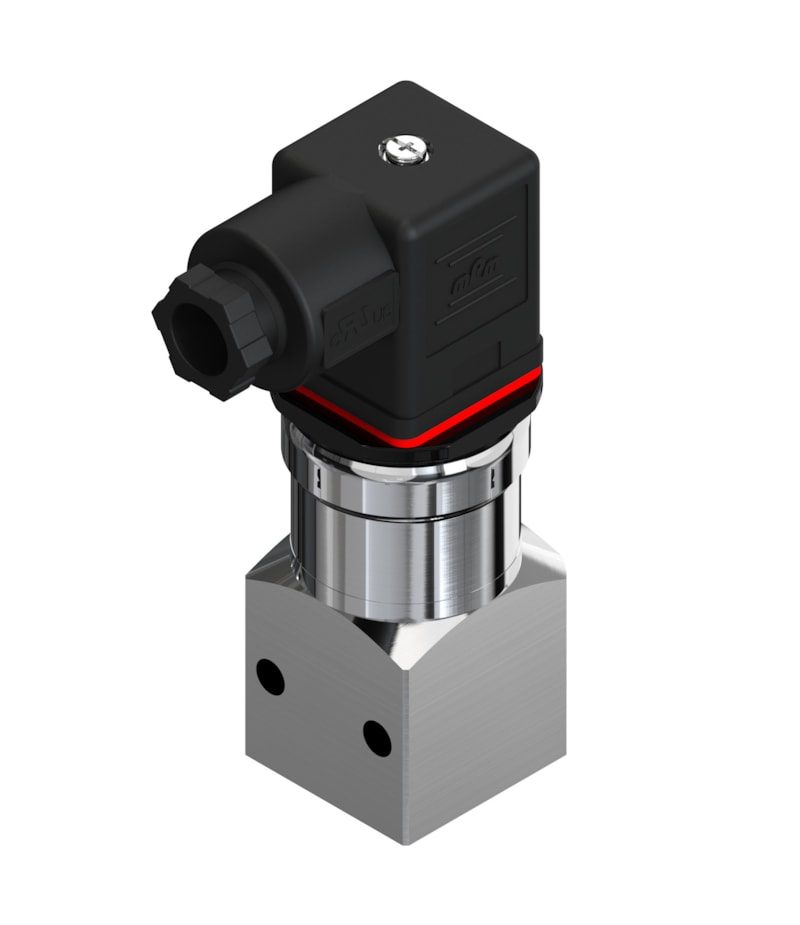

Danfoss MBS 3350 Pressure Transmitter 0 to 10 bar Flange Angular (060G6523)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3350 pressure transmitter, genuine OEM code 060G6523. Measuring range 0 to 10 bar (0 to 145 psi), 4-20 mA (2-wire) output, AISI 316L stainless steel wetted parts. Flange, port Ø2.5 (female) pressure connection; Angular connector Pg 9 (EN 175301-803-A). Reference gauge, enclosure IP65. ATEX Ex ec / UL / EAC (GOST) certified; EAN 5702428953559. P/N 060G6523.
Specifications
- Part number
- 060G6523
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 10 bar (0 to 145 psi)
- Temperature range
- -40 to +125 C (medium)
- IP rating
- IP65
- Thread standard
- Flange, port Ø2.5
Compatibility
MBS 3350 pulse-snubber transmitter with Ø2.5 flush flange port; distinct from the G 1/4 cable variant 060G6507.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
