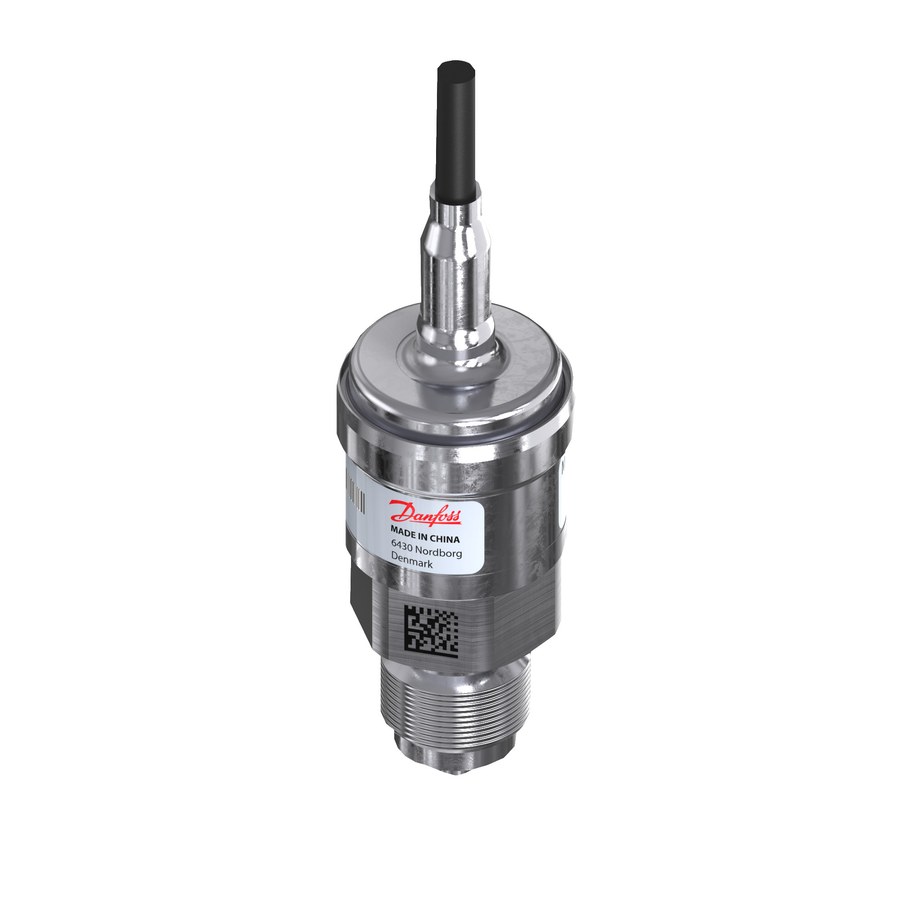

Danfoss MBS 3050 Pressure Transmitter 0 to 400 bar M14 Cable (060G6564)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3050 pressure transmitter, genuine OEM code 060G6564. Measuring range 0 to 400 bar (0 to 5800 psi), 4-20 mA (2-wire) output, AISI 316L stainless steel wetted parts. M 14 x 1.5 (DIN 3852-E) pressure connection; Cable, 3.5 m (screened). Reference sealed gauge, enclosure IP67. ATEX Ex ec / UL / EAC (GOST) certified; EAN 5702428973717. P/N 060G6564.
Specifications
- Part number
- 060G6564
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 400 bar (0 to 5800 psi)
- Temperature range
- -40 to +85 C (medium)
- IP rating
- IP67
- Thread standard
- M 14 x 1.5 (DIN 3852-E)
Compatibility
MBS 3050 high-range transmitter, 0-400 bar, M 14 x 1.5 port with 3.5 m screened cable; distinct from the M12 variant 060G1441 and angular variant 060G6426.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
