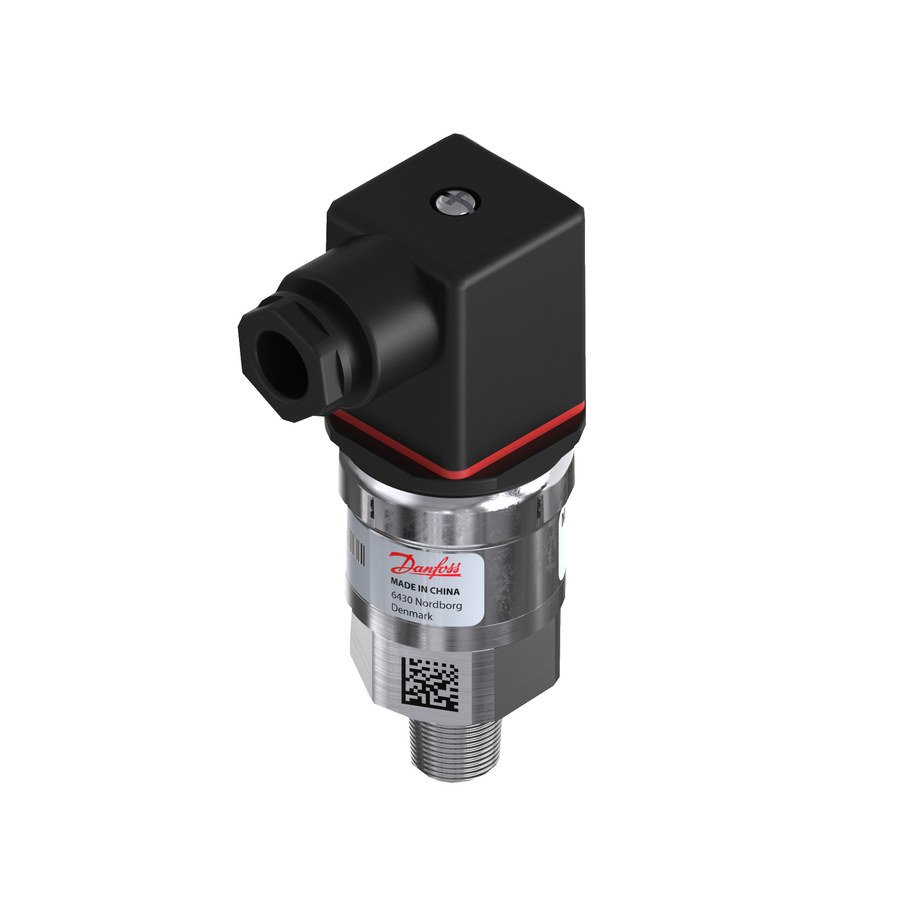

Danfoss MBS 3000 Pressure Transmitter 0–1 bar 4–20 mA — 060G1563
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 3000 pressure transmitter, genuine OEM code 060G1563. Output 4–20 mA (2-wire) over a measuring range of 0–1 bar (0–14.5 psi), supply voltage 9–32 V DC. Pressure connection 1/4-18 NPT (ANSI/ASME B1.20.1); electrical connection Angular connector Pg 9 (EN 175301-803-A). Pressure reference gauge (relative). Accuracy ≤ ±0.5 % FS typical, ≤ ±1.0 % FS maximum. Wetted parts AISI 316L stainless steel; enclosure IP65. Spec key MBS 3000-1011-A1AC04-0. Approvals: ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US). EAN 5702423128198.
Technical Specifications
- Brand
- Danfoss
- Part number
- 060G1563
- Type
- MBS 3000 pressure transmitter
- Category
- Sensors & Instrumentation — Pressure Transmitters
- Measuring range
- 0–1 bar (0–14.5 psi)
- Reference
- gauge (relative)
- Output signal
- 4–20 mA (2-wire)
- Supply voltage
- 9–32 V DC
- Accuracy
- ≤ ±0.5 % FS typical, ≤ ±1.0 % FS maximum
- Pressure connection
- 1/4-18 NPT (ANSI/ASME B1.20.1)
- Electrical connection
- Angular connector Pg 9 (EN 175301-803-A)
- Wetted parts
- AISI 316L stainless steel
- Media/ambient temperature
- -40 to +85 °C (medium/ambient)
- Enclosure rating
- IP65
- Spec key
- MBS 3000-1011-A1AC04-0
- EAN
- 5702423128198
- Approvals
- ATEX Ex ec IIA T4 Gc, CE, UL Recognized (C UL US)
- HS code
- 9026.20
- Net weight
- 0.158 Kilogram
- Product group
- Sensors
- + supply
- Pin 1
- - common
- Pin 2
- Accuracy, max. [±FS%]
- 1 %
- Accuracy, typical [±FS%]
- 0.5 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 85 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 185 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 80 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 176 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 22.4
- In scope of WEEE
- Yes
- International Article Number
- 5702423128198
- Intrinsically safe
- No
- Low Clipping level
- 3.6
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 185 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.5 %
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Overload pressure max. [bar]
- 6 bar
- Overload pressure max. [psi]
- 87 psi
- Pressure connection HEX [mm]
- 27 mm
- Pressure connection size
- 1/4-18
- Pressure connection standard
- ANSI/ASME B1.20.1
- Pressure connection type
- NPT
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 1 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 14.5 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Gauge (relative)
- Pulse-snubber
- No
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- MBS 3000-1011-A1AC04-0
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 9 V
- UL mark
- Yes
Standards & Compliance
- Size / Series
- 1/4-18 NPT (ANSI/ASME B1.20.1)
- Material
- AISI 316L stainless steel
- Thread Standard
- 1/4-18 NPT (ANSI/ASME B1.20.1)
- Pressure Rating
- 0–1 bar (0–14.5 psi)
- Temperature Range
- -40 to +85 °C (medium/ambient)
- IP Rating
- IP65
- HS Code
- 9026.20
Compatibility & Fitment
Low 0–1 bar range with 1/4-18 NPT process port. Gauge (relative) reference.
