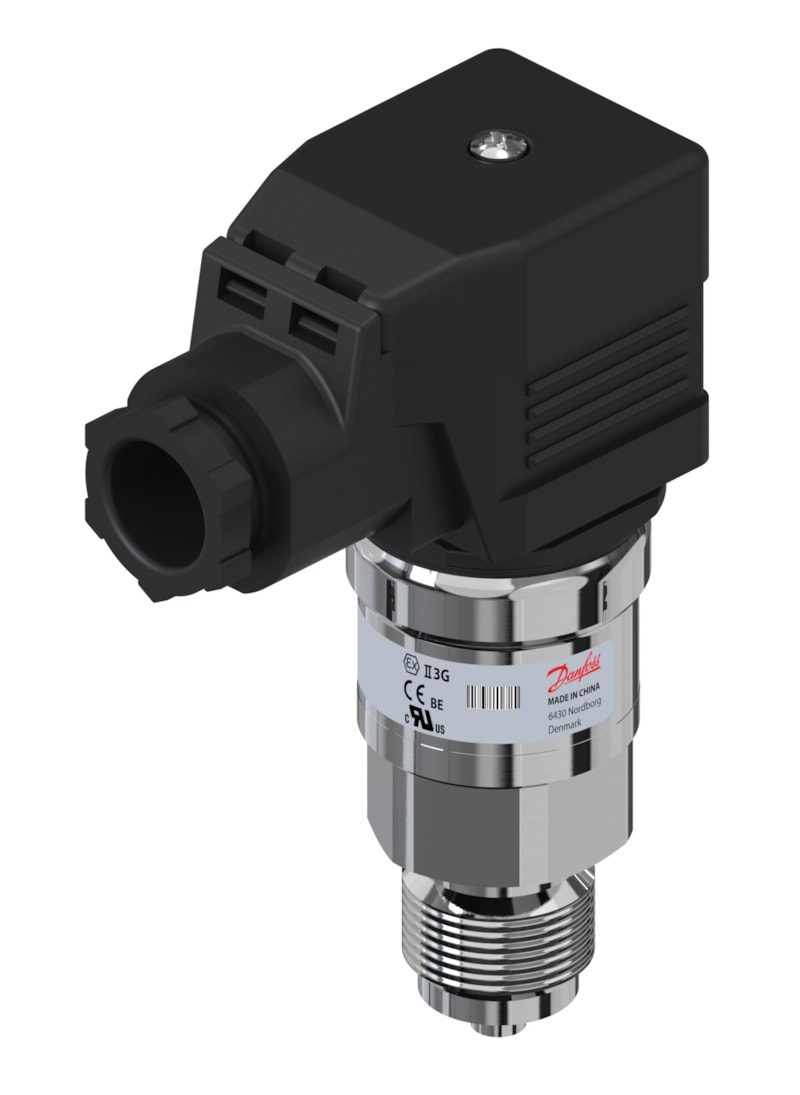

Danfoss MBS 33M Pressure Transmitter 0–40 bar 4–20 mA
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 33M pressure transmitter, genuine OEM code 060G1654. Output 4–20 mA (2-wire) over a measuring range of 0–40 bar (0–580 psi), supply voltage 9–32 V DC. Pressure connection G 1/2 male (EN 837); electrical connection Angular connector M20 (EN 175301-803-A). Pressure reference sealed gauge. Accuracy ≤ ±0.5 % FS typical, ≤ ±1.0 % FS maximum. Wetted parts AISI 316L stainless steel; enclosure IP65. Spec key MBS 33M-2631-H3AB08-0. Approvals: ATEX, CE. EAN 5702423139620.
Technical Specifications
- Brand
- Danfoss
- Part number
- 060G1654
- Type
- MBS 33M pressure transmitter
- Category
- Sensors & Instrumentation — Pressure Transmitters
- Measuring range
- 0–40 bar (0–580 psi)
- Reference
- sealed gauge
- Output signal
- 4–20 mA (2-wire)
- Supply voltage
- 9–32 V DC
- Accuracy
- ≤ ±0.5 % FS typical, ≤ ±1.0 % FS maximum
- Pressure connection
- G 1/2 male (EN 837)
- Electrical connection
- Angular connector M20 (EN 175301-803-A)
- Wetted parts
- AISI 316L stainless steel
- Media/ambient temperature
- -40 to +85 °C (medium/ambient)
- Enclosure rating
- IP65
- Spec key
- MBS 33M-2631-H3AB08-0
- EAN
- 5702423139620
- Approvals
- ATEX, CE
- HS code
- 9026.20
- Net weight
- 0.21 Kilogram
- Product group
- Sensors
- + supply
- Pin 1
- - common
- Pin 2
- Accuracy, max. [±FS%]
- 0.8 %
- Accuracy, typical [±FS%]
- 0.3 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 85 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 185 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- C UL US UL Recognized
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 80 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 176 °F
- Compensated temp. range [°F] [min]
- 32 °F
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- M20
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 22.4
- International Article Number
- 5702423139620
- Intrinsically safe
- No
- Low Clipping level
- 3.6
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 185 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Overload pressure max. [bar]
- 80 bar
- Pressure connection HEX [mm]
- 27 mm
- Pressure connection size
- 1/2
- Pressure connection standard
- EN 837
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 40 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 580 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Sealed gauge
- Pulse-snubber
- No
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- MBS 33M-2631-H3AB08-0
- Supply current max. [mA]
- 28 mA
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 9 V
- UL mark
- Yes
Standards & Compliance
- Size / Series
- G 1/2 male (EN 837)
- Material
- AISI 316L stainless steel
- Thread Standard
- G 1/2 male (EN 837)
- Pressure Rating
- 0–40 bar (0–580 psi)
- Temperature Range
- -40 to +85 °C (medium/ambient)
- IP Rating
- IP65
- HS Code
- 9026.20
Compatibility & Fitment
MBS 33M compact OEM transmitter with M20 angular outlet; sealed-gauge reference. G 1/2 EN 837 process port.
