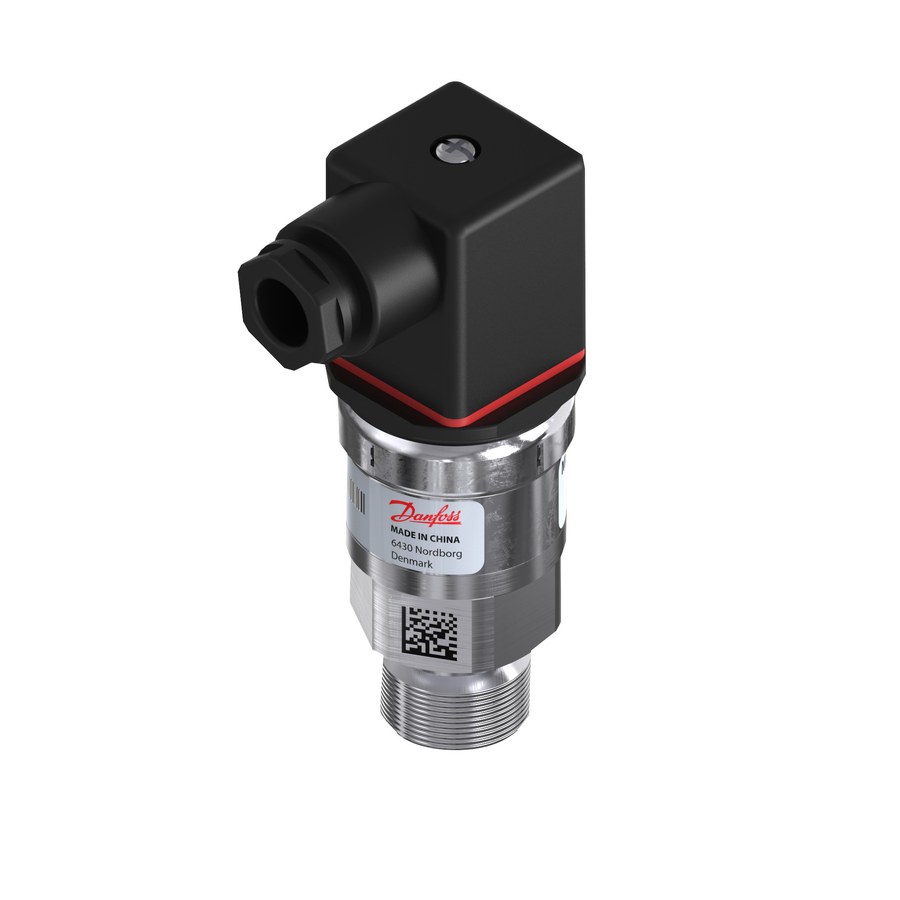

Danfoss MBS 3300 Pressure Transmitter 0–6 bar 4–20 mA — 060G1613
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3300 pressure transmitter, genuine OEM code 060G1613. Output 4–20 mA (2-wire) over a measuring range of 0–6 bar (0–87 psi), supply voltage 9–32 V DC. Pressure connection G 1/2 male (DIN 3852-E / ISO 1179-2, Form E); electrical connection Angular connector, Pg 11 (EN 175301-803-A). Pressure reference gauge (relative). Accuracy ≤ ±0.5 % FS typical, ≤ ±1.0 % FS maximum. Wetted parts AISI 316L stainless steel; enclosure IP65. Spec key MBS 3300-1811-A6GB08-2. Approvals: ATEX Ex ec IIA T4 Gc, CE, UL Recognized, cULus. EAN 5702423136285.
Specifications
- Part number
- 060G1613
- HS code
- 9026.20
- Material
- AISI 316L stainless steel
- Pressure rating
- 0–6 bar (0–87 psi)
- Temperature range
- -40 to +100 °C (ambient); 0 to +100 °C (compensated); -40 to +125 °C (medium)
- IP rating
- IP65
- Standard size
- G 1/2 male (DIN 3852-E / ISO 1179-2, Form E)
- Thread standard
- G 1/2 male (DIN 3852-E / ISO 1179-2, Form E)
Compatibility
MBS 3300 transmitter; gauge (relative) reference, 4–20 mA (2-wire). G 1/2 male (DIN 3852-E / ISO 1179-2, Form E) process port with Angular connector, Pg 11 (EN 175301-803-A).
