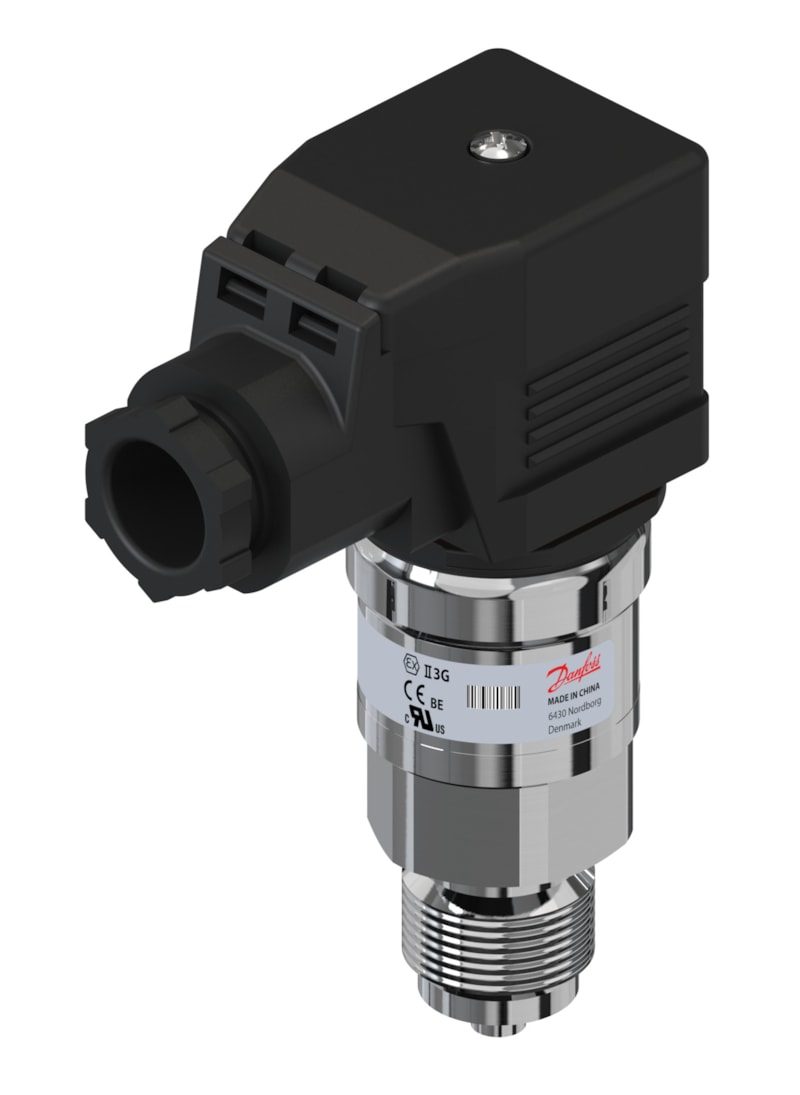

Danfoss MBS 33M Pressure Transmitter 0–6 bar 4–20 mA — 060G1656
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 33M pressure transmitter, genuine OEM code 060G1656. Output 4–20 mA (2-wire) over a measuring range of 0–6 bar (0–87 psi), supply voltage 9–32 V DC. Pressure connection G 1/2 male (EN 837); electrical connection Angular connector M20 (EN 175301-803-A). Pressure reference gauge (relative). Accuracy ≤ ±0.3 % FS typical, ≤ ±0.8 % FS maximum. Wetted parts AISI 316L stainless steel; enclosure IP65. Spec key MBS 33M-1811-H3AB08-0. Approvals: CE, cULus UL Recognized. EAN 5702423139644.
Specifications
- Part number
- 060G1656
- HS code
- 9026.20
- Material
- AISI 316L stainless steel
- Pressure rating
- 0–6 bar (0–87 psi)
- Temperature range
- -40 to +85 °C (ambient); 0 to +80 °C (compensated)
- IP rating
- IP65
- Standard size
- G 1/2 male (EN 837)
- Thread standard
- G 1/2 male (EN 837)
Compatibility
MBS 33M transmitter; gauge (relative) reference, 4–20 mA (2-wire). G 1/2 male (EN 837) process port with Angular connector M20 (EN 175301-803-A).
