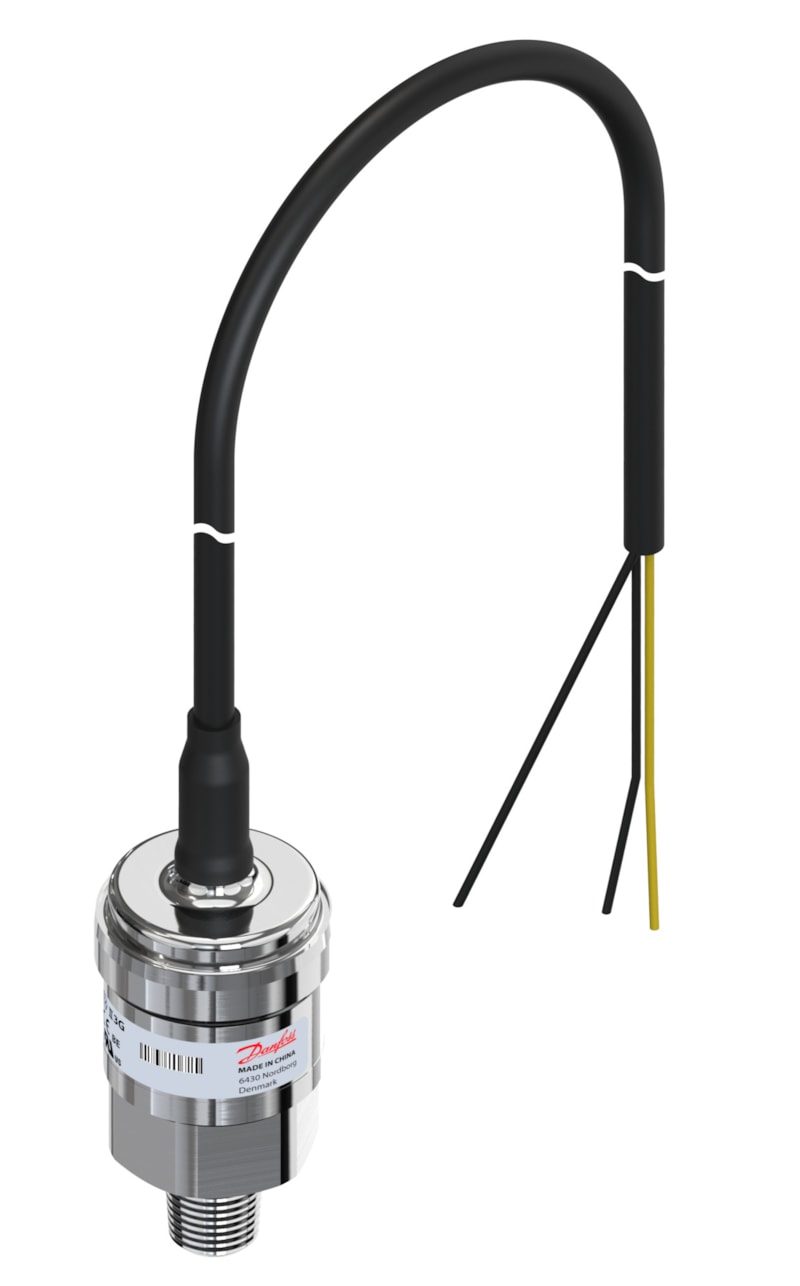

Danfoss AKS 33 Pressure Transmitter 1–34.5 bar 4–20 mA
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AKS 33 pressure transmitter, genuine OEM code 060G6576. Output 4–20 mA (2-wire) over a measuring range of 1–34.5 bar (-14.5–500 psi), supply voltage 9–32 V DC. Pressure reference sealed gauge. Pressure connection 1/4-18 NPT male (ANSI/ASME B1.20.1); electrical connection Cable, 6.1 m (240 in), screened. Wetted parts AISI 316L stainless steel; enclosure IP67. Spec key AKS 33-N431-B5EC04-0. Approvals: ATEX Ex ec IIA T4 Gc, CE, cULus UL Recognized, GOST. EAN 5702428978767.
Technical Specifications
- Brand
- Danfoss
- Part number
- 060G6576
- Type
- AKS 33 pressure transmitter
- Category
- Sensors & Instrumentation — Pressure Transmitters
- Measuring range
- 1–34.5 bar (-14.5–500 psi)
- Reference
- sealed gauge
- Output signal
- 4–20 mA (2-wire)
- Supply voltage
- 9–32 V DC
- Accuracy
- ≤ ±0.5 % FS typical, ≤ ±1.0 % FS maximum
- Pressure connection
- 1/4-18 NPT male (ANSI/ASME B1.20.1)
- Electrical connection
- Cable, 6.1 m (240 in), screened
- Wetted parts
- AISI 316L stainless steel
- Media/ambient temperature
- -40°C to +85°C (medium/ambient)
- Enclosure rating
- IP67
- Spec key
- AKS 33-N431-B5EC04-0
- EAN
- 5702428978767
- Approvals
- ATEX Ex ec IIA T4 Gc, CE, cULus UL Recognized, GOST
- HS code
- 9026.20
- Net weight
- 0.431 Kilogram
- Product group
- Sensors
- + supply
- Brown
- - common
- Black
- Accuracy, max. [±FS%]
- 0.8 %
- Accuracy, typical [±FS%]
- 0.3 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 85 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 185 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- Approval standard
- 6967179
- Cable length [in]
- 240 in
- Cable length [m]
- 6.1 m
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 80 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 176 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. comments
- Screened
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 22.4
- In scope of WEEE
- Yes
- International Article Number
- 5702428978767
- Intrinsically safe
- No
- Low Clipping level
- 3.6
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 185 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Overload pressure max. [bar]
- 55 bar
- Pressure connection size
- 1/4-18
- Pressure connection standard
- ANSI/ASME B1.20.1
- Pressure connection type
- NPT
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 34.5 bar
- Pressure range [bar] [min]
- 1 bar
- Pressure range [psi] [max]
- 500 psi
- Pressure range [psi] [min]
- -14.5 psi
- Pressure reference
- Sealed gauge
- Pulse-snubber
- Yes
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- AKS 33-N431-B5EC04-0
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 9 V
- UL mark
- Yes
Standards & Compliance
- Size / Series
- 1/4-18 NPT male (ANSI/ASME B1.20.1)
- Material
- AISI 316L stainless steel
- Thread Standard
- 1/4-18 NPT male (ANSI/ASME B1.20.1)
- Pressure Rating
- 1–34.5 bar (-14.5–500 psi)
- Temperature Range
- -40°C to +85°C (medium/ambient)
- IP Rating
- IP67
- HS Code
- 9026.20
Compatibility & Fitment
AKS 33 transmitter; sealed gauge reference, 4–20 mA (2-wire). 1/4-18 NPT male (ANSI/ASME B1.20.1) process port with Cable, 6.1 m (240 in), screened.
Product Documentation
More from Danfoss
Danfoss
Danfoss MBS 3250 Pressure Transmitter 0–10 bar 0–5 V
060G6579
Danfoss
Danfoss MBS 3200 Pressure Transmitter 0–10 bar 0–5 V
060G6581
Danfoss
Danfoss MBS 3200 Pressure Transmitter 0–6 bar 0–5 V — 060G6582
Danfoss
Danfoss MBS 3200 Pressure Transmitter 0–6 bar 0–5 V — 060G6583
Danfoss
Danfoss MBS 3050 Pressure Transmitter 0–250 bar 0–10 V
060G6597
Danfoss
Danfoss MBS 3350 Pressure Transmitter 0–600 bar 4–20 mA
060G6598
Danfoss
Danfoss MBS 3000 Pressure Transmitter -1–15 bar 4–20 mA
060G6602
Danfoss
Danfoss MBS 3000 Pressure Transmitter 0–25 bar 4–20 mA — 060G6610
Technical guides
- Cross-Referencing Danfoss Refrigeration Components by IMPA and OEM Code
- Danfoss Product Code Decoder — 003Z, 013G, 017B, 023U, 027L, 032F, 060G, 060H, 065B, 065Z, 068Z, 084H, 132F, 148B Series (Complete Reference)
- Danfoss Maneurop MTZ Reciprocating Compressors — Model Range, Voltage Codes and Replacement Guide
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 060G6576?
- 060G6576 can be ordered from cballast.com as a Danfoss catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Danfoss product?
- The manufacturer part number is 060G6576.
- What is the HS code for 060G6576?
- The customs tariff (HS) code for 060G6576 is 9026.20.
- Who manufactures 060G6576?
- 060G6576 is a Danfoss product in the Sensors & Instrumentation range.
- Is a datasheet available for 060G6576?
- Yes — the 060G6576 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 060G6576?
- The minimum order quantity is 1.
- Is 060G6576 available?
- Yes — 060G6576 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
