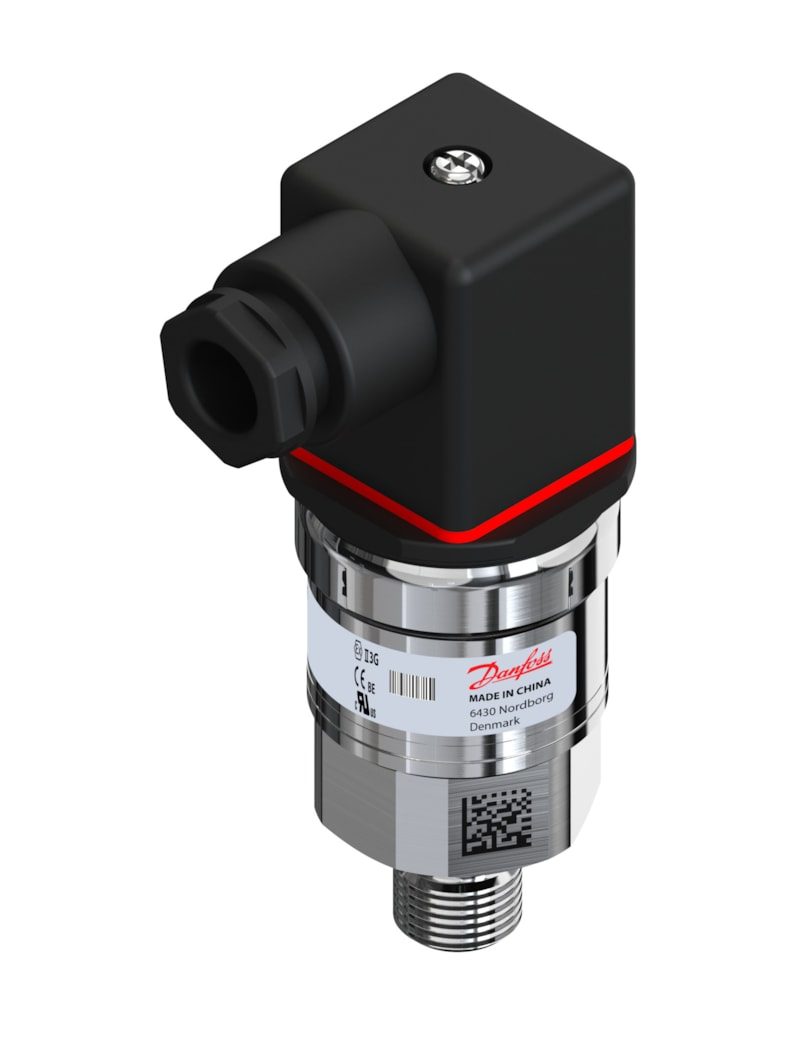

Danfoss MBS 3250 Pressure Transmitter 0–10 bar 0–5 V — 060G6579
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3250 pressure transmitter, genuine OEM code 060G6579. Output 0–5 V (voltage) over a measuring range of 0–10 bar (0–145 psi), supply voltage 9–32 V DC. Pressure reference absolute. Pressure connection G 1/4 male (DIN 3852-E); electrical connection Angular connector, Pg 9 (EN 175301-803-A). Wetted parts AISI 316L stainless steel; enclosure IP65. Spec key MBS 3250-2022-A1GB04-1. Approvals: ATEX Ex ec IIA T4 Gc, CE, cULus UL Recognized. EAN 5702428981675.
Specifications
- Part number
- 060G6579
- HS code
- 9026.20
- Material
- AISI 316L stainless steel
- Pressure rating
- 0–10 bar (0–145 psi)
- Temperature range
- -40 to +85 °C (medium); 0 to +80 °C (compensated)
- IP rating
- IP65
- Standard size
- G 1/4 male (DIN 3852-E)
- Thread standard
- G 1/4 male (DIN 3852-E)
Compatibility
MBS 3250 transmitter; absolute reference, 0–5 V (voltage). G 1/4 male (DIN 3852-E) process port with Angular connector, Pg 9 (EN 175301-803-A).
