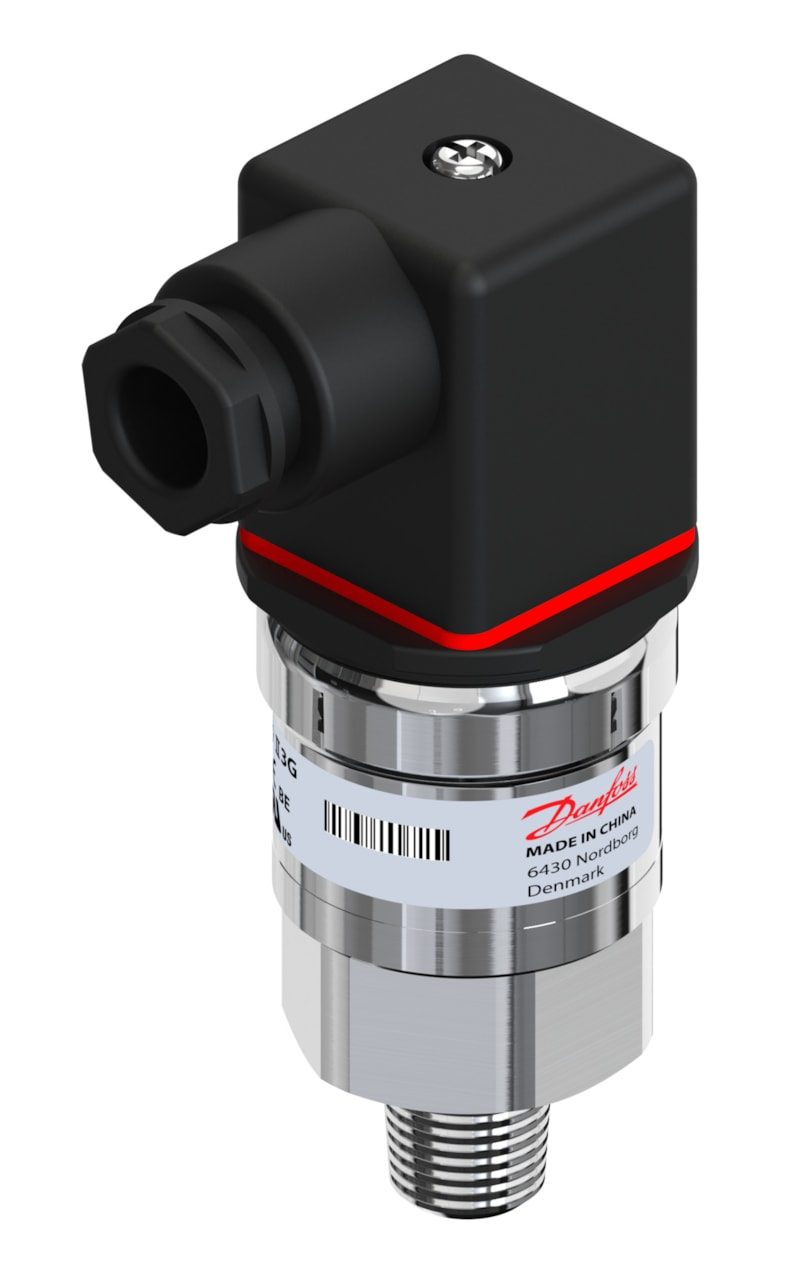

Danfoss MBS 3050 Pressure Transmitter 0–250 bar 0–10 V
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 3050 pressure transmitter, genuine OEM code 060G6597. Output 0–10 V (voltage) over a measuring range of 0–250 bar (0–3625 psi), supply voltage 15–32 V DC. Pressure reference sealed gauge. Pressure connection 1/4 R male (ISO 7-1); electrical connection Angular connector, Pg 9 (EN 175301-803-A). Wetted parts AISI 316L stainless steel; enclosure IP65. Spec key MBS 3050-3435-A1CD13-0. Approvals: cULus UL Recognized, CE. EAN 5702428989190.
Technical Specifications
- Brand
- Danfoss
- Part number
- 060G6597
- Type
- MBS 3050 pressure transmitter
- Category
- Sensors & Instrumentation — Pressure Transmitters
- Measuring range
- 0–250 bar (0–3625 psi)
- Reference
- sealed gauge
- Output signal
- 0–10 V (voltage)
- Supply voltage
- 15–32 V DC
- Accuracy
- ≤ ±0.5 % FS typical, ≤ ±1.0 % FS maximum
- Pressure connection
- 1/4 R male (ISO 7-1)
- Electrical connection
- Angular connector, Pg 9 (EN 175301-803-A)
- Wetted parts
- AISI 316L stainless steel
- Media/ambient temperature
- -40 to +85 °C (medium); 0 to +80 °C (compensated)
- Enclosure rating
- IP65
- Spec key
- MBS 3050-3435-A1CD13-0
- EAN
- 5702428989190
- Approvals
- cULus UL Recognized, CE
- HS code
- 9026.20
- Net weight
- 0.162 Kilogram
- Product group
- Sensors
- + output
- Pin 3
- + supply
- Pin 1
- - common
- Pin 2
- Accuracy, max. [±FS%]
- 1 %
- Accuracy, typical [±FS%]
- 0.5 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 85 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 185 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- C UL US UL Recognized
- Autofrettage Pressure
- 1600 bar
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 80 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 176 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 11.5
- In scope of WEEE
- Yes
- International Article Number
- 5702428989190
- Intrinsically safe
- No
- Low Clipping level
- 0
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 185 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.5 %
- Output signal [V] [max]
- 10 V
- Output signal [V] [min]
- 0 V
- Overload pressure max. [bar]
- 1500 bar
- Overload pressure max. [psi]
- 21755 psi
- Pressure connection HEX [mm]
- 27 mm
- Pressure connection size
- 1/4
- Pressure connection standard
- ISO 7-1
- Pressure connection type
- R
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 250 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 3625 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Sealed gauge
- Pulse-snubber
- Yes
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- MBS 3050-3435-A1CD13-0
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 15 V
- UL mark
- Yes
Standards & Compliance
- Size / Series
- 1/4 R male (ISO 7-1)
- Material
- AISI 316L stainless steel
- Thread Standard
- 1/4 R male (ISO 7-1)
- Pressure Rating
- 0–250 bar (0–3625 psi)
- Temperature Range
- -40 to +85 °C (medium); 0 to +80 °C (compensated)
- IP Rating
- IP65
- HS Code
- 9026.20
Compatibility & Fitment
MBS 3050 transmitter; sealed gauge reference, 0–10 V (voltage). 1/4 R male (ISO 7-1) process port with Angular connector, Pg 9 (EN 175301-803-A).
