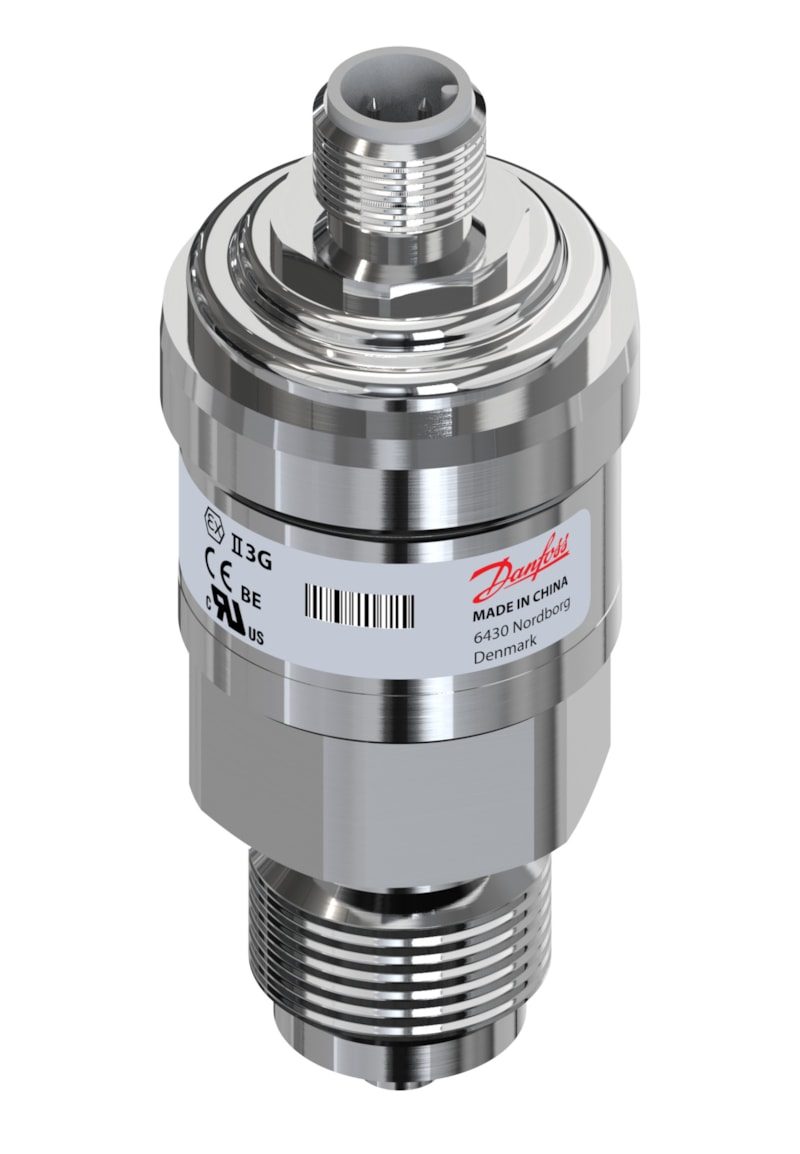

Danfoss MBS 3000 Pressure Transmitter 0–25 bar 4–20 mA — 060G6621
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 3000 pressure transmitter, genuine OEM code 060G6621. Output 4–20 mA (2-wire) over a measuring range of 0–25 bar (0–362.5 psi), supply voltage 9–32 V DC. Pressure reference sealed gauge. Pressure connection G 1/2 male (EN 837); electrical connection M12 x 1, 4-pin (IEC 61076-2-101). Wetted parts AISI 316L stainless steel; enclosure IP67. Spec key MBS 3000-2431-E3AB08-0. Approvals: cULus UL Recognized, CE. EAN 5702428995351.
Technical Specifications
- Brand
- Danfoss
- Part number
- 060G6621
- Type
- MBS 3000 pressure transmitter
- Category
- Sensors & Instrumentation — Pressure Transmitters
- Measuring range
- 0–25 bar (0–362.5 psi)
- Reference
- sealed gauge
- Output signal
- 4–20 mA (2-wire)
- Supply voltage
- 9–32 V DC
- Accuracy
- ≤ ±0.5 % FS typical, ≤ ±1.0 % FS maximum
- Pressure connection
- G 1/2 male (EN 837)
- Electrical connection
- M12 x 1, 4-pin (IEC 61076-2-101)
- Wetted parts
- AISI 316L stainless steel
- Media/ambient temperature
- -40°C to +85°C (medium/ambient)
- Enclosure rating
- IP67
- Spec key
- MBS 3000-2431-E3AB08-0
- EAN
- 5702428995351
- Approvals
- cULus UL Recognized, CE
- HS code
- 9026.20
- Net weight
- 0.164 Kilogram
- Product group
- Sensors
- + supply
- Pin 1
- - supply
- Pin 4
- Accuracy, max. [±FS%]
- 1 %
- Accuracy, typical [±FS%]
- 0.5 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 85 °C
- Ambient temperature range [°C] [min]
- -25 °C
- Ambient temperature range [°F] [max]
- 185 °F
- Ambient temperature range [°F] [min]
- -13 °F
- Approval
- C UL US UL Recognized
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 80 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 176 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male
- Electrical connection size
- 4 pin
- Electrical connection standard
- IEC 61076-2-101
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 22.4
- In scope of WEEE
- Yes
- International Article Number
- 5702428995351
- Intrinsically safe
- No
- Low Clipping level
- 3.6
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 185 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.5 %
- Output signal [mA] [max]
- 20 mA
- Output signal [mA] [min]
- 4 mA
- Overload pressure max. [bar]
- 150 bar
- Pressure connection HEX [mm]
- 27 mm
- Pressure connection size
- 1/2
- Pressure connection standard
- EN 837
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 25 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 362.5 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Sealed gauge
- Pulse-snubber
- No
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- MBS 3000-2431-E3AB08-0
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 9 V
- UL mark
- Yes
Standards & Compliance
- Size / Series
- G 1/2 male (EN 837)
- Material
- AISI 316L stainless steel
- Thread Standard
- G 1/2 male (EN 837)
- Pressure Rating
- 0–25 bar (0–362.5 psi)
- Temperature Range
- -40°C to +85°C (medium/ambient)
- IP Rating
- IP67
- HS Code
- 9026.20
Compatibility & Fitment
MBS 3000 transmitter; sealed gauge reference, 4–20 mA (2-wire). G 1/2 male (EN 837) process port with M12 x 1, 4-pin (IEC 61076-2-101).
