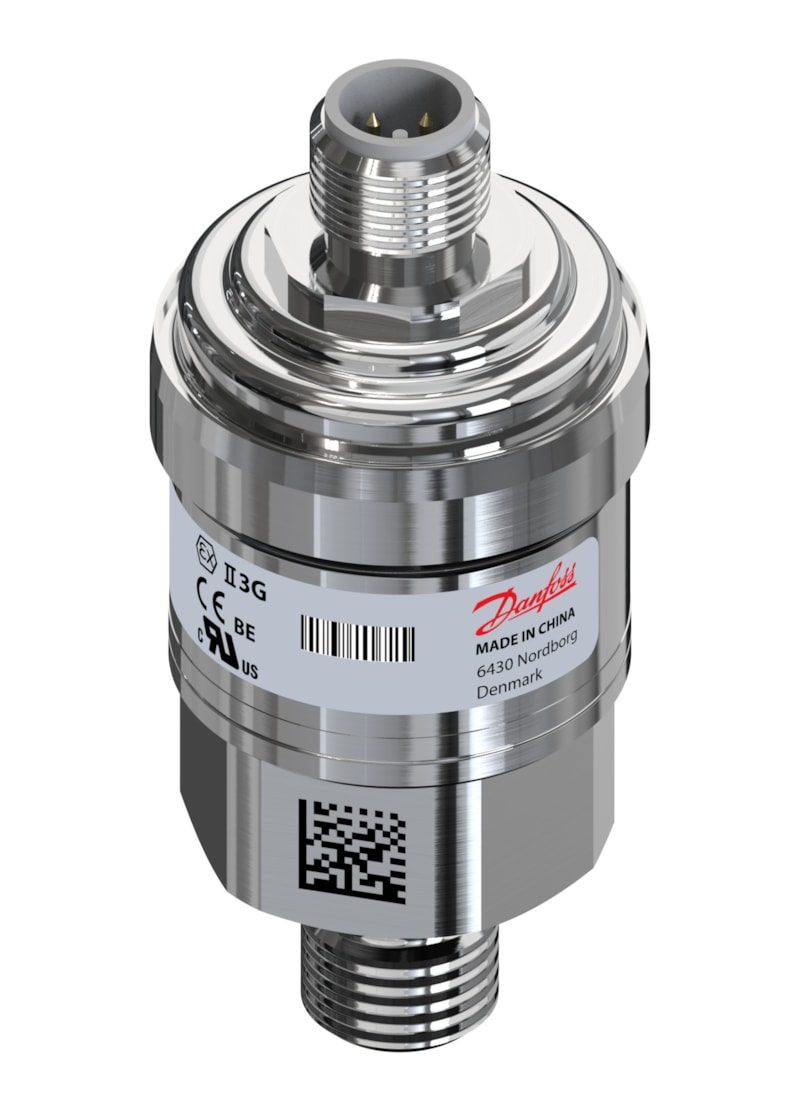

Danfoss MBS 3050 Pressure Transmitter 0-600 bar G1/4 M12

Danfoss MBS 3050 pressure transmitter, genuine OEM code 060G6248. Measuring range 0 to 600 bar (0 to 8700 psi), 0-10 V (3-wire) output, AISI 316L stainless steel wetted parts. G 1/4 male (ISO 1179-2, Form E) pressure connection; M12 x 1 male (4-pin, IEC 61076-2-101). Reference sealed gauge, enclosure IP67. CE / UL / C UL US / EAC (GOST) / RoHS; EAN 5702428834773.

Type

MBS 3050

Range

0 to 600 bar (0 to 8700 psi)

Reference

sealed gauge

Output

0-10 V (3-wire)

Supply

15-32 V DC

Wetted parts

AISI 316L stainless steel

Pressure connection

G 1/4 male (ISO 1179-2, Form E)

Electrical connection

M12 x 1 male (4-pin, IEC 61076-2-101)

Enclosure

IP67

Ambient temp

-40 to +85 C

Medium temp

-40 to +125 C

Response time

4 ms max

Approvals

C UL US; CE; UL; EAC; RoHS

EAN

5702428834773

Part number

060G6248

Net weight

0.142 Kilogram

Product group

Sensors

+ output

Pin 2

+ supply

Pin 1

- common

Pin 3

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-25 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-13 °F

Approval

C UL US UL Recognized

Autofrettage Pressure

1600 bar

CE mark

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection size

4 pin

Electrical connection standard

IEC 61076-2-101

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

11.5

In scope of WEEE

Yes

International Article Number

5702428834773

Intrinsically safe

No

Low Clipping level

0

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal

Voltage

Output signal [V] [max]

10 V

Output signal [V] [min]

0 V

Overload pressure max. [bar]

1500 bar

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

600 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

8700 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Pulse-snubber

Yes

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

Specification key

MBS 3050-3835-E3GB04-2

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

15 V

UL mark

Yes

Material

AISI 316L stainless steel wetted parts

Thread Standard

G 1/4 male (ISO 1179-2, Form E)

Pressure Rating

0 to 600 bar (0 to 8700 psi)

Temperature Range

-40 to +125 C (medium)

IP Rating

IP67

Classification / Approval

C UL US; CE; UL; EAC; RoHS

HS Code

9026.20
