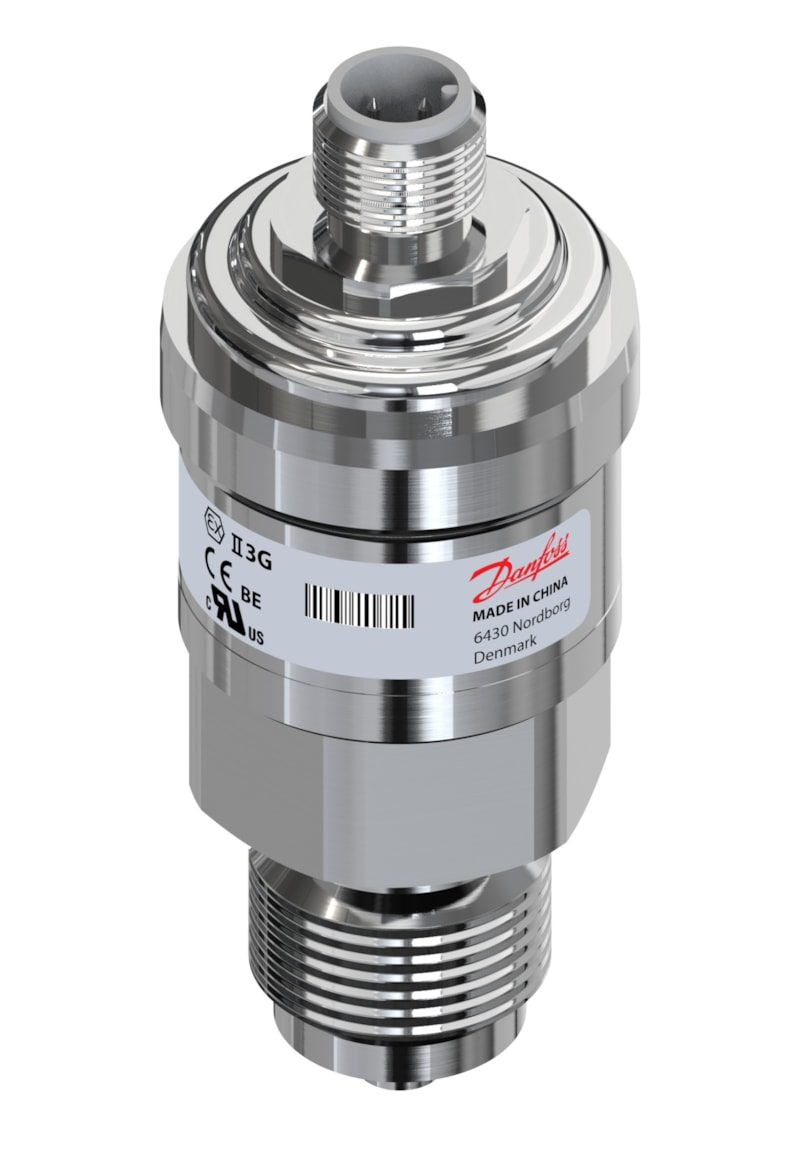

Danfoss MBS 3000 Pressure Transmitter 0-60 bar G1/2 M12 (060G6241)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3000 pressure transmitter, genuine OEM code 060G6241. Measuring range 0 to 60 bar (0 to 870 psi), 4-20 mA (2-wire) output, AISI 316L stainless steel wetted parts. G 1/2 male (ISO 1179-2, Form E) pressure connection; M12 x 1 male (4-pin, IEC 61076-2-101). Reference sealed gauge, enclosure IP67. CE / UL / C UL US / EAC (GOST) / RoHS; EAN 5702428832304. P/N 060G6241.
Specifications
- Part number
- 060G6241
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 60 bar (0 to 870 psi)
- Temperature range
- -40 to +125 C (medium)
- IP rating
- IP67
- Thread standard
- G 1/2 male (ISO 1179-2, Form E)
Compatibility
MBS 3000 transmitter, 0 to 60 bar sealed gauge, G1/2 port with M12 connection.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
