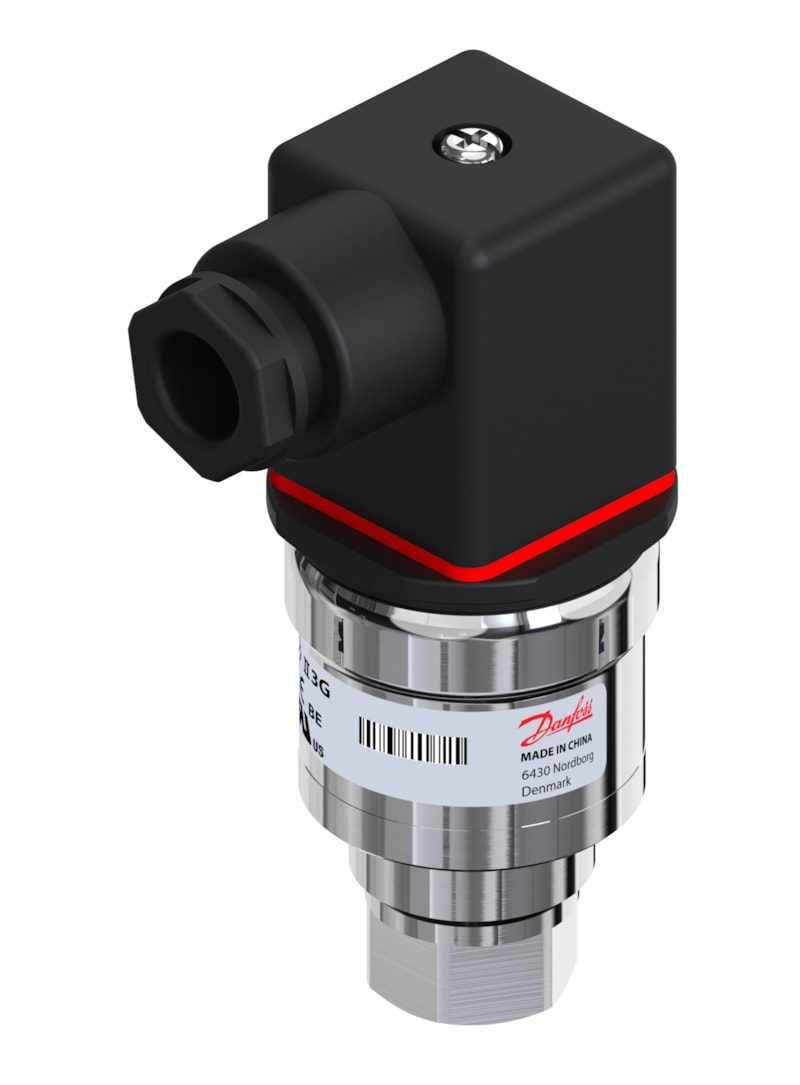

Danfoss AKS 32R Pressure Transmitter 0–50 bar ratiometric
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AKS 32R pressure transmitter, genuine OEM code 060G6612. Output ratiometric (0.5–4.5 V) over a measuring range of 0–50 bar (0–725 psi), supply voltage 5.0 V DC (4.5–5.5 V). Pressure reference absolute. Pressure connection 7/16-20 UNF (ISO 8434-1); electrical connection Angular connector, Pg 9 (EN 175301-803-A). Wetted parts AISI 316L stainless steel; enclosure IP65. Spec key AKS 32R-2726-A1BF08-0. Approvals: ATEX Ex ec IIA T4 Gc, CE, cULus UL Recognized, GOST. EAN 5702428995290.
Technical Specifications
- Brand
- Danfoss
- Part number
- 060G6612
- Type
- AKS 32R pressure transmitter
- Category
- Sensors & Instrumentation — Pressure Transmitters
- Measuring range
- 0–50 bar (0–725 psi)
- Reference
- absolute
- Output signal
- ratiometric (0.5–4.5 V)
- Supply voltage
- 5.0 V DC (4.5–5.5 V)
- Accuracy
- ≤ ±0.5 % FS typical, ≤ ±1.0 % FS maximum
- Pressure connection
- 7/16-20 UNF (ISO 8434-1)
- Electrical connection
- Angular connector, Pg 9 (EN 175301-803-A)
- Wetted parts
- AISI 316L stainless steel
- Media/ambient temperature
- -40°C to +85°C (electronics)
- Enclosure rating
- IP65
- Spec key
- AKS 32R-2726-A1BF08-0
- EAN
- 5702428995290
- Approvals
- ATEX Ex ec IIA T4 Gc, CE, cULus UL Recognized, GOST
- HS code
- 9026.20
- Net weight
- 0.125 Kilogram
- Product group
- Sensors
- + output
- Pin 3
- + supply
- Pin 1
- - common
- Pin 2
- Accuracy, max. [±FS%]
- 0.8 %
- Accuracy, typical [±FS%]
- 0.3 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 85 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 185 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- Approval standard
- 6967179
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 80 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 104 °F
- Compensated temp. range [°F] [min]
- -22 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 95
- In scope of WEEE
- Yes
- International Article Number
- 5702428995290
- Intrinsically safe
- No
- Low Clipping level
- 4
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 185 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Overload pressure max. [bar]
- 55 bar
- Overload pressure max. [psi]
- 797 psi
- Pressure connection HEX [mm]
- 17 mm
- Pressure connection notes
- Flare 1/4 in w/ valvedepressor
- Pressure connection size
- 7/16-20
- Pressure connection standard
- ISO 8434-1
- Pressure connection type
- UNF
- Pressure Male/Female
- Female
- Pressure range [bar] [max]
- 50 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 725 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Absolute
- Pulse-snubber
- No
- Ratiometric of Vsupply [%] [max]
- 90 %
- Ratiometric of Vsupply [%] [min]
- 10 %
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- AKS 32R-2726-A1BF08-0
- Supply voltage [V] DC [max]
- 5.5 V
- Supply voltage [V] DC [min]
- 4.5 V
- UL mark
- Yes
Standards & Compliance
- Size / Series
- 7/16-20 UNF (ISO 8434-1)
- Material
- AISI 316L stainless steel
- Thread Standard
- 7/16-20 UNF (ISO 8434-1)
- Pressure Rating
- 0–50 bar (0–725 psi)
- Temperature Range
- -40°C to +85°C (electronics)
- IP Rating
- IP65
- HS Code
- 9026.20
Compatibility & Fitment
AKS 32R transmitter; absolute reference, ratiometric (0.5–4.5 V). 7/16-20 UNF (ISO 8434-1) process port with Angular connector, Pg 9 (EN 175301-803-A).
