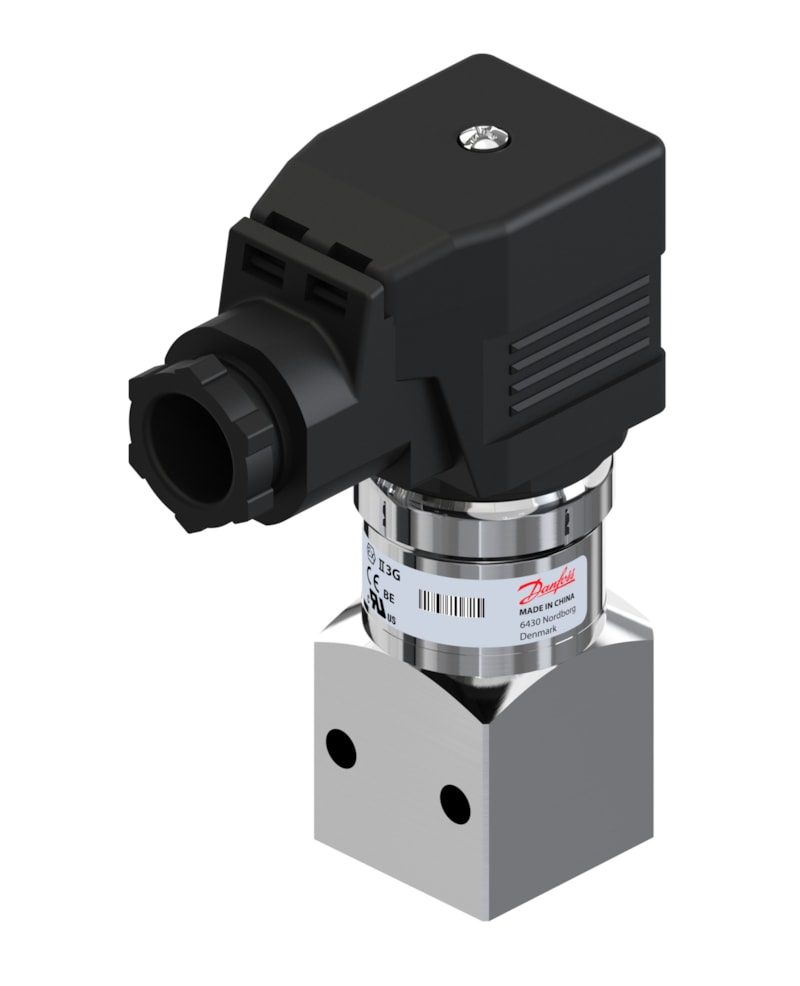

Danfoss MBS 3350 Pressure Transmitter 0–10 bar 4–20 mA — 060G6616
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3350 pressure transmitter, genuine OEM code 060G6616. Output 4–20 mA (2-wire) over a measuring range of 0–10 bar (0–145 psi), supply voltage 9–32 V DC. Pressure reference gauge (relative). Pressure connection Flange, port Ø2.5; electrical connection Angular connector, M20 (EN 175301-803-A). Wetted parts AISI 316L stainless steel; enclosure IP65. Spec key MBS 3350-2011-H3CD28-3. Approvals: ATEX Ex ec IIA T4 Gc, CE, cULus UL Recognized. EAN 5702428996839.
Specifications
- Part number
- 060G6616
- HS code
- 9026.20
- Material
- AISI 316L stainless steel
- Pressure rating
- 0–10 bar (0–145 psi)
- Temperature range
- -40°C to +85°C (medium/ambient)
- IP rating
- IP65
- Standard size
- Flange, port Ø2.5
- Thread standard
- Flange, port Ø2.5
Compatibility
MBS 3350 transmitter; gauge (relative) reference, 4–20 mA (2-wire). Flange, port Ø2.5 process port with Angular connector, M20 (EN 175301-803-A).
