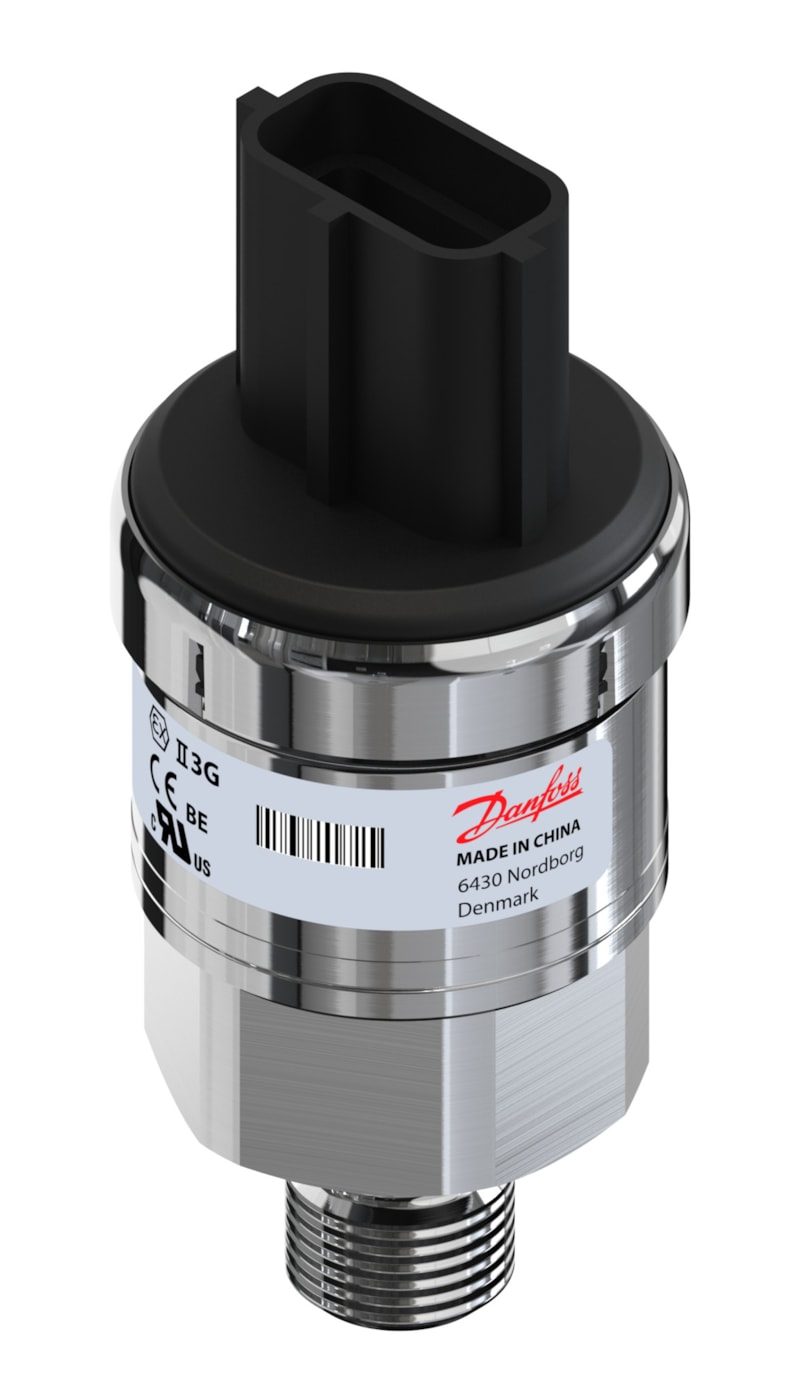

Danfoss MBS 3050 Pressure Transmitter 0–10 bar ratiometric
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 3050 pressure transmitter, genuine OEM code 060G1684. Output Ratiometric voltage output (proportional to supply) over a measuring range of 0–10 bar (0–145 psi), supply voltage 4.5–5.5 V DC. Pressure connection G 1/4 male (DIN 3852-G); electrical connection AMP Econoseal J-series, 3-pin male. Pressure reference sealed gauge. Accuracy ≤ ±1.0 % FS maximum. Wetted parts AISI 316L stainless steel; enclosure IP67. Spec key MBS 3050-2036-G1FB04-4. Approvals: CE, cULus UL Recognized. EAN 5702423141074.
Technical Specifications
- Brand
- Danfoss
- Part number
- 060G1684
- Type
- MBS 3050 pressure transmitter
- Category
- Sensors & Instrumentation — Pressure Transmitters
- Measuring range
- 0–10 bar (0–145 psi)
- Reference
- sealed gauge
- Output signal
- Ratiometric voltage output (proportional to supply)
- Supply voltage
- 4.5–5.5 V DC
- Accuracy
- ≤ ±1.0 % FS maximum
- Pressure connection
- G 1/4 male (DIN 3852-G)
- Electrical connection
- AMP Econoseal J-series, 3-pin male
- Wetted parts
- AISI 316L stainless steel
- Media/ambient temperature
- -40 to +85 °C (ambient); 0 to +80 °C (compensated)
- Enclosure rating
- IP67
- Spec key
- MBS 3050-2036-G1FB04-4
- EAN
- 5702423141074
- Approvals
- CE, cULus UL Recognized
- HS code
- 9026.20
- Net weight
- 0.125 Kilogram
- Product group
- Sensors
- + output
- Pin 3
- + supply
- Pin 1
- - common
- Pin 2
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 85 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 185 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- C UL US UL Recognized
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 80 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 176 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. comments
- Integrated
- Electrical conn. Male/Female
- Male
- Electrical connection size
- 3 pin
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 92
- In scope of WEEE
- Yes
- International Article Number
- 5702423141074
- Intrinsically safe
- No
- Low Clipping level
- 4
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 185 °F
- Medium temperature range [°F] [min]
- -40 °F
- Overload pressure max. [bar]
- 60 bar
- Pressure connection HEX [mm]
- 27 mm
- Pressure connection notes
- Special
- Pressure connection size
- 1/4
- Pressure connection standard
- DIN 3852-G
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 10 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 145 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Sealed gauge
- Pulse-snubber
- Yes
- Ratiometric of Vsupply [%] [max]
- 90 %
- Ratiometric of Vsupply [%] [min]
- 10 %
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- MBS 3050-2036-G1FB04-4
- Supply voltage [V] DC [max]
- 5.5 V
- Supply voltage [V] DC [min]
- 4.5 V
- UL mark
- Yes
Standards & Compliance
- Size / Series
- G 1/4 male (DIN 3852-G)
- Material
- AISI 316L stainless steel
- Thread Standard
- G 1/4 male (DIN 3852-G)
- Pressure Rating
- 0–10 bar (0–145 psi)
- Temperature Range
- -40 to +85 °C (ambient); 0 to +80 °C (compensated)
- IP Rating
- IP67
- HS Code
- 9026.20
Compatibility & Fitment
MBS 3050 transmitter; sealed gauge reference, Ratiometric voltage output (proportional to supply). G 1/4 male (DIN 3852-G) process port with AMP Econoseal J-series, 3-pin male.
