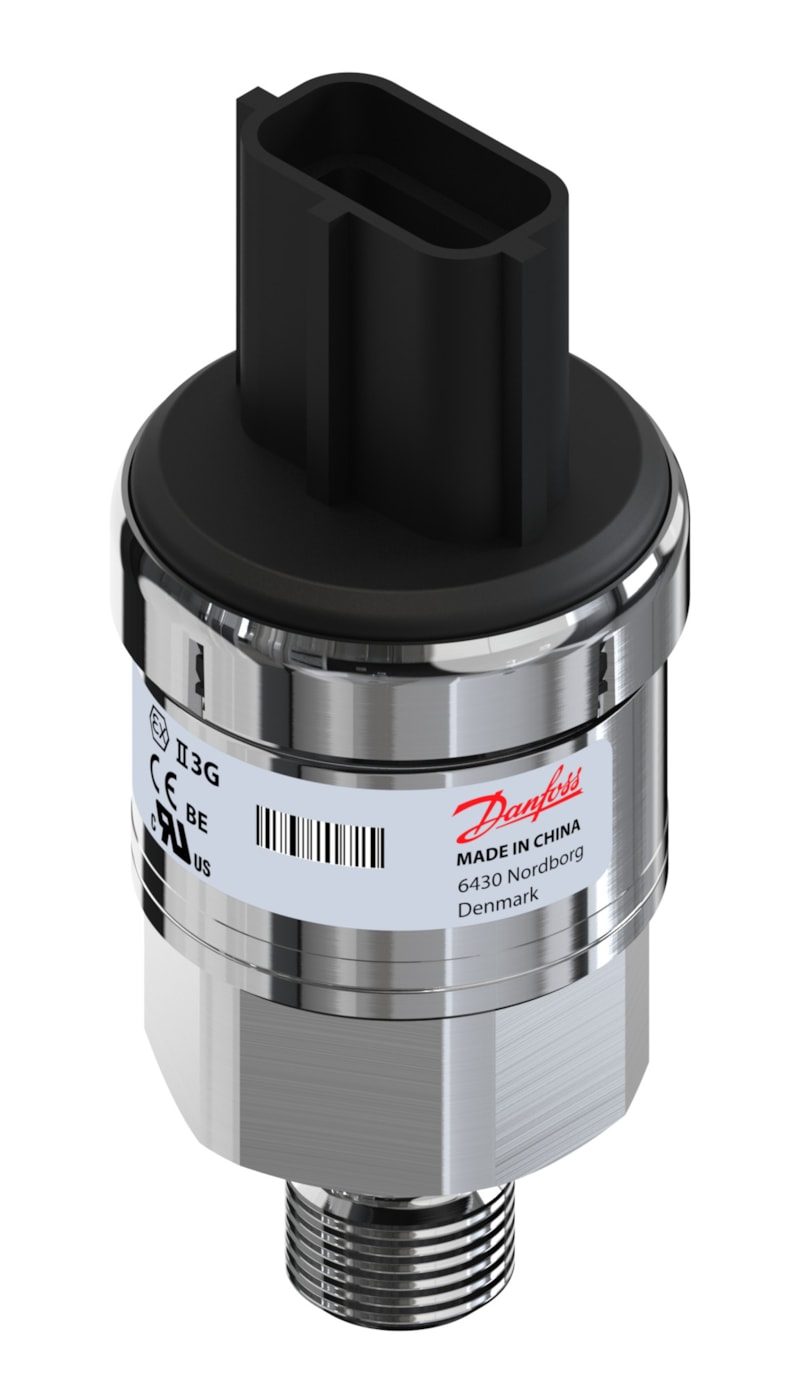

Danfoss MBS 3050 Pressure Transmitter 0–40 bar ratiometric — 060G1685
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3050 pressure transmitter, genuine OEM code 060G1685. Output Ratiometric voltage output (proportional to supply) over a measuring range of 0–40 bar (0–580 psi), supply voltage 4.5–5.5 V DC. Pressure connection G 1/4 male (DIN 3852-G); electrical connection AMP Econoseal J-series, 3-pin male. Pressure reference sealed gauge. Accuracy ≤ ±1.0 % FS maximum. Wetted parts AISI 316L stainless steel; enclosure IP67. Spec key MBS 3050-2636-G1FB04-4. Approvals: CE, cULus UL Recognized. EAN 5702423141081.
Specifications
- Part number
- 060G1685
- HS code
- 9026.20
- Material
- AISI 316L stainless steel
- Pressure rating
- 0–40 bar (0–580 psi)
- Temperature range
- -40 to +85 °C (ambient); 0 to +80 °C (compensated)
- IP rating
- IP67
- Standard size
- G 1/4 male (DIN 3852-G)
- Thread standard
- G 1/4 male (DIN 3852-G)
Compatibility
MBS 3050 transmitter; sealed gauge reference, Ratiometric voltage output (proportional to supply). G 1/4 male (DIN 3852-G) process port with AMP Econoseal J-series, 3-pin male.
