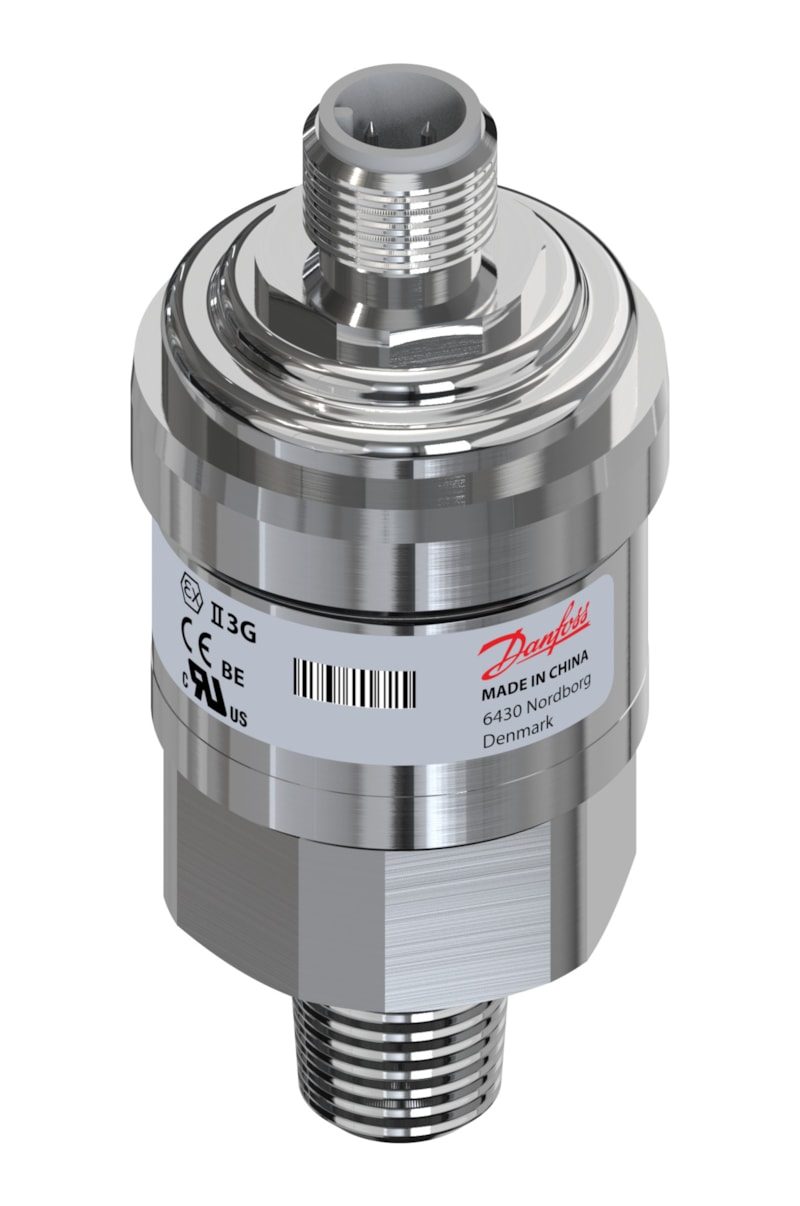

Danfoss MBS 3000 Pressure Transmitter 0–3.45 bar 4–20 mA — 060G6572
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3000 pressure transmitter, genuine OEM code 060G6572. Output 4–20 mA (2-wire) over a measuring range of 0–3.45 bar (0–50 psi), supply voltage 9–32 V DC. Pressure reference sealed gauge. Pressure connection 1/4-18 NPT male; electrical connection M12 x 1, 4-pin male (IEC 61076-2-101). Wetted parts AISI 316L stainless steel; enclosure IP67. Spec key MBS 3000-5531-E3AC04-0. Approvals: cULus UL Recognized, CE, EU RoHS. EAN 5702428975902.
Specifications
- Part number
- 060G6572
- HS code
- 9026.20
- Material
- AISI 316L stainless steel
- Pressure rating
- 0–3.45 bar (0–50 psi)
- Temperature range
- -40°C to +85°C (medium/ambient)
- IP rating
- IP67
- Standard size
- 1/4-18 NPT male
- Thread standard
- 1/4-18 NPT male
Compatibility
MBS 3000 transmitter; sealed gauge reference, 4–20 mA (2-wire). 1/4-18 NPT male process port with M12 x 1, 4-pin male (IEC 61076-2-101).
