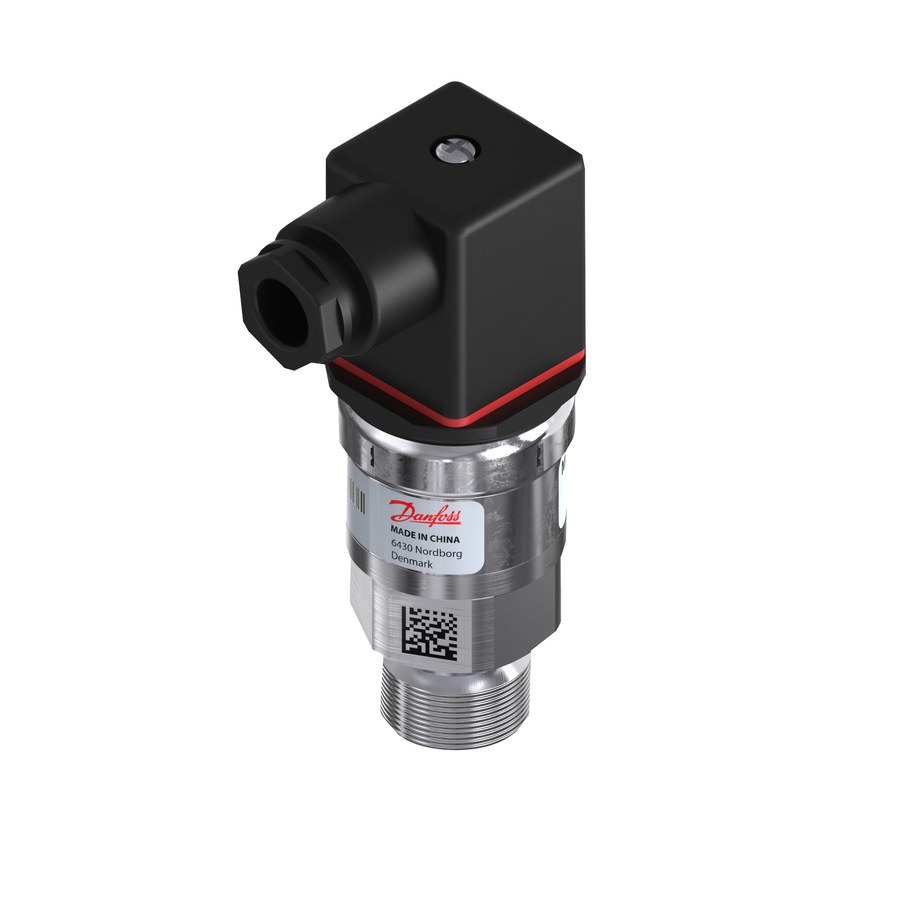

Danfoss MBS 3300 Pressure Transmitter 0–10 bar 4–20 mA — 060G1614

Danfoss MBS 3300 pressure transmitter, genuine OEM code 060G1614. Output 4–20 mA (2-wire) over a measuring range of 0–10 bar (0–145 psi), supply voltage 9–32 V DC. Pressure connection G 1/2 male (DIN 3852-E / ISO 1179-2, Form E); electrical connection Angular connector, Pg 11 (EN 175301-803-A). Pressure reference gauge (relative). Accuracy ≤ ±0.5 % FS typical, ≤ ±1.0 % FS maximum. Wetted parts AISI 316L stainless steel; enclosure IP65. Spec key MBS 3300-2011-A6GB08-2. Approvals: ATEX Ex ec IIA T4 Gc, CE, UL Recognized. EAN 5702423136292.

Brand

Danfoss

Part number

060G1614

Type

MBS 3300 pressure transmitter

Category

Sensors & Instrumentation — Pressure Transmitters

Measuring range

0–10 bar (0–145 psi)

Reference

gauge (relative)

Output signal

4–20 mA (2-wire)

Supply voltage

9–32 V DC

Accuracy

≤ ±0.5 % FS typical, ≤ ±1.0 % FS maximum

Pressure connection

G 1/2 male (DIN 3852-E / ISO 1179-2, Form E)

Electrical connection

Angular connector, Pg 11 (EN 175301-803-A)

Wetted parts

AISI 316L stainless steel

Media/ambient temperature

-40 to +100 °C (ambient); 0 to +100 °C (compensated); -40 to +125 °C (medium)

Enclosure rating

IP65

Spec key

MBS 3300-2011-A6GB08-2

EAN

5702423136292

Approvals

ATEX Ex ec IIA T4 Gc, CE, UL Recognized

HS code

9026.20

Net weight

0.185 Kilogram

Product group

Sensors

+ supply

Pin 1

- common

Pin 2

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

100 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

212 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX

Approval comments

ATEX Ex ec IIA T4 Gc

CE mark

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

212 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male and Female

Electrical connection size

Pg 11

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

22.4

In scope of WEEE

No

International Article Number

5702423136292

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

60 bar

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/2

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

10 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

145 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Pulse-snubber

No

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

Specification key

MBS 3300-2011-A6GB08-2

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL mark

Yes

Size / Series

G 1/2 male (DIN 3852-E / ISO 1179-2, Form E)

Material

AISI 316L stainless steel

Thread Standard

G 1/2 male (DIN 3852-E / ISO 1179-2, Form E)

Pressure Rating

0–10 bar (0–145 psi)

Temperature Range

-40 to +100 °C (ambient); 0 to +100 °C (compensated); -40 to +125 °C (medium)

IP Rating

IP65

HS Code

9026.20
