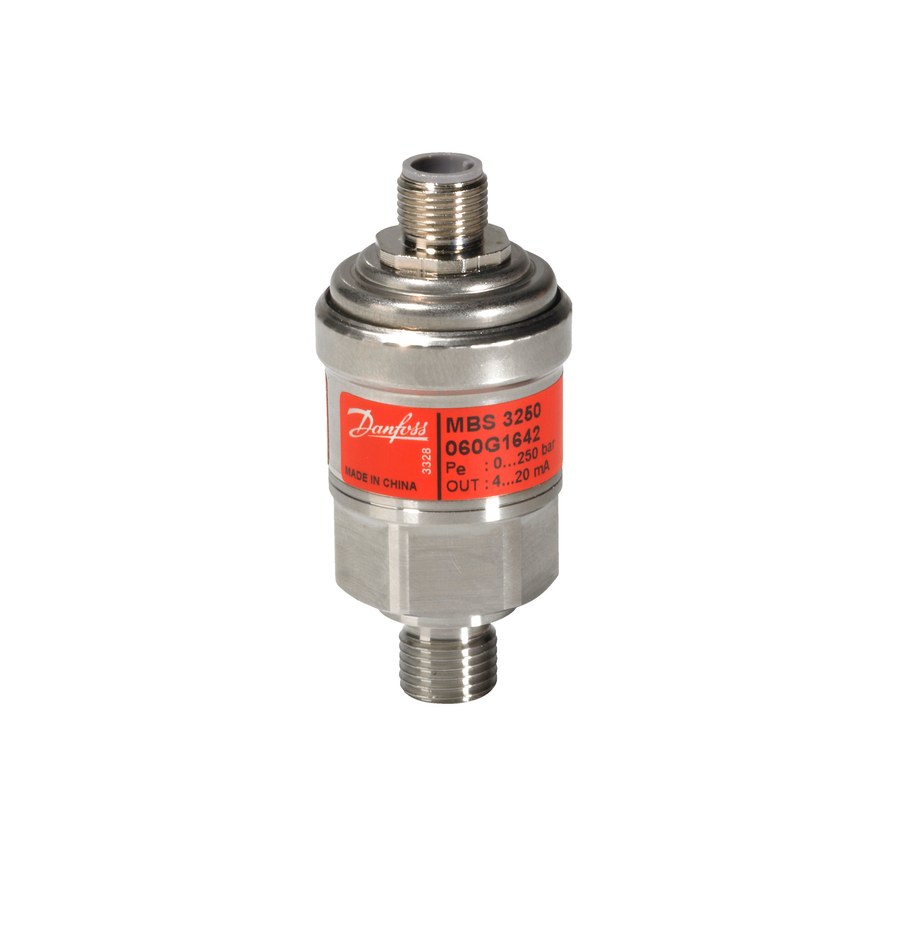

Danfoss MBS 3250 Pressure Transmitter 0–250 bar 4–20 mA — 060G1642
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3250 pressure transmitter, genuine OEM code 060G1642. Output 4–20 mA (2-wire) over a measuring range of 0–250 bar (0–3625 psi), supply voltage 9–32 V DC. Pressure connection G 1/4 male (DIN 3852-E / ISO 1179-2, Form E); electrical connection M12 x 1, 4-pin (IEC 61076-2-101). Pressure reference sealed gauge. Accuracy ≤ ±0.5 % FS typical, ≤ ±1.0 % FS maximum. Wetted parts AISI 316L stainless steel; enclosure IP67. Spec key MBS 3250-3431-E3GB04-1. Approvals: CE, cULus UL Recognized. EAN 5702423137640.
Specifications
- Part number
- 060G1642
- HS code
- 9026.20
- Material
- AISI 316L stainless steel
- Pressure rating
- 0–250 bar (0–3625 psi)
- Temperature range
- -25 to +90 °C (ambient); 0 to +100 °C (compensated); -40 to +125 °C (medium)
- IP rating
- IP67
- Standard size
- G 1/4 male (DIN 3852-E / ISO 1179-2, Form E)
- Thread standard
- G 1/4 male (DIN 3852-E / ISO 1179-2, Form E)
Compatibility
MBS 3250 transmitter; sealed gauge reference, 4–20 mA (2-wire). G 1/4 male (DIN 3852-E / ISO 1179-2, Form E) process port with M12 x 1, 4-pin (IEC 61076-2-101).
