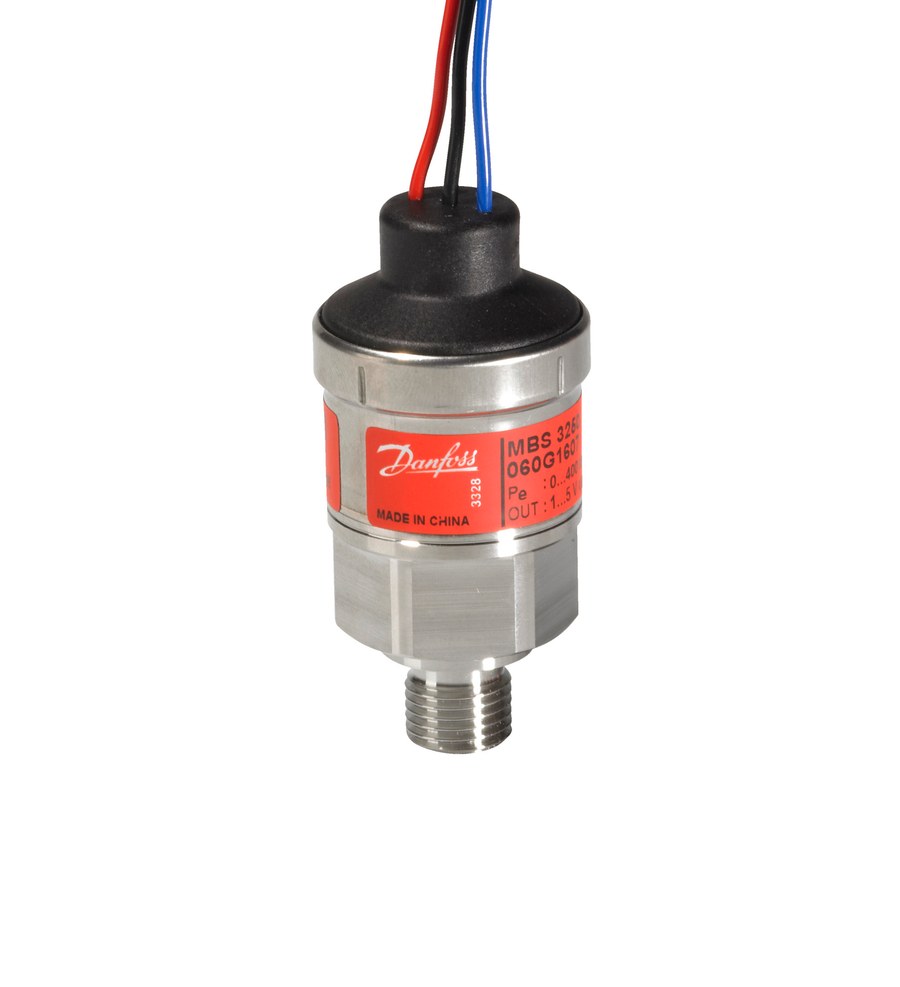

Danfoss MBS 3250 Pressure Transmitter 0–400 bar voltage — 060G1607

Danfoss MBS 3250 pressure transmitter, genuine OEM code 060G1607. Output Voltage output over a measuring range of 0–400 bar (0–5800 psi), supply voltage 9–32 V DC. Pressure connection G 1/4 male (DIN 3852-E / ISO 1179-2, Form E); electrical connection Flying leads, 3-pin. Pressure reference sealed gauge. Accuracy ≤ ±0.5 % FS typical, ≤ ±1.0 % FS maximum. Wetted parts AISI 316L stainless steel; enclosure IP67. Spec key MBS 3250-3633-DTGB04-1. Approvals: ATEX Ex ec IIA T4 Gc, CE, UL Recognized, cULus. EAN 5702423133260.

Brand

Danfoss

Part number

060G1607

Type

MBS 3250 pressure transmitter

Category

Sensors & Instrumentation — Pressure Transmitters

Measuring range

0–400 bar (0–5800 psi)

Reference

sealed gauge

Output signal

Voltage output

Supply voltage

9–32 V DC

Accuracy

≤ ±0.5 % FS typical, ≤ ±1.0 % FS maximum

Pressure connection

G 1/4 male (DIN 3852-E / ISO 1179-2, Form E)

Electrical connection

Flying leads, 3-pin

Wetted parts

AISI 316L stainless steel

Media/ambient temperature

-40 to +125 °C (ambient/medium); 0 to +100 °C (compensated)

Enclosure rating

IP67

Spec key

MBS 3250-3633-DTGB04-1

EAN

5702423133260

Approvals

ATEX Ex ec IIA T4 Gc, CE, UL Recognized, cULus

HS code

9026.20

Net weight

0.139 Kilogram

Product group

Sensors

+ output

Blue

+ supply

Red

- common

Black

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

257 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX

Approval comments

ATEX Ex ec IIA T4 Gc

Autofrettage Pressure

1600 bar

Cable length [m]

0.32 m

CE mark

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

212 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. comments

Flying leads

Electrical connection size

3 pin

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

5.6

Identical product

060G4241

In scope of WEEE

Yes

International Article Number

5702423133260

Intrinsically safe

No

Low Clipping level

0.1

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal [V] [max]

5 V

Output signal [V] [min]

1 V

Overload pressure max. [bar]

600 bar

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

400 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

5800 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Pulse-snubber

Yes

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

Specification key

MBS 3250-3633-DTGB04-1

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL mark

Yes

Size / Series

G 1/4 male (DIN 3852-E / ISO 1179-2, Form E)

Material

AISI 316L stainless steel

Thread Standard

G 1/4 male (DIN 3852-E / ISO 1179-2, Form E)

Pressure Rating

0–400 bar (0–5800 psi)

Temperature Range

-40 to +125 °C (ambient/medium); 0 to +100 °C (compensated)

IP Rating

IP67

HS Code

9026.20
