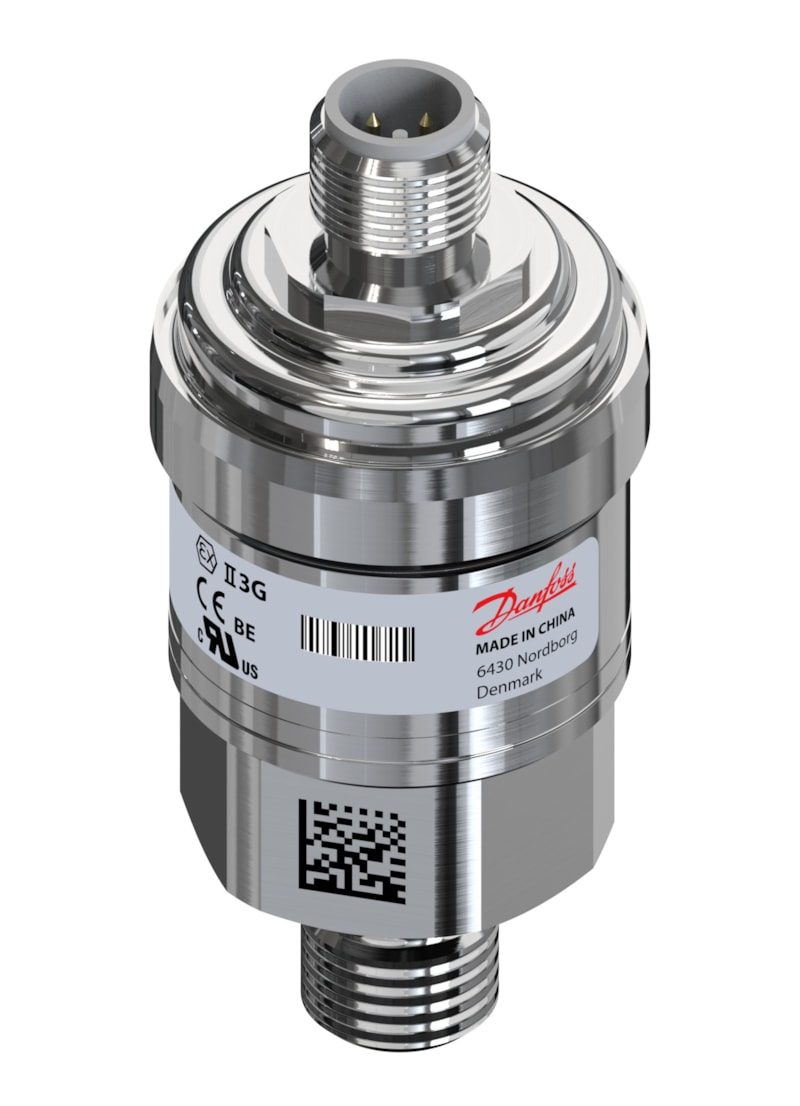

Danfoss MBS 3050 Pressure Transmitter -1 to 5 bar 4–20 mA — 060G1560
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3050 pressure transmitter, genuine OEM code 060G1560. Output 4–20 mA (2-wire) over a measuring range of -1 to 5 bar (-14.5 to 72.5 psi), supply voltage 9–32 V DC. Pressure connection G 1/4 male (DIN 3852-G); electrical connection M12 x 1, 5-pin male (IEC 61076-2-101). Pressure reference sealed gauge. Accuracy ≤ ±0.5 % FS typical, ≤ ±1.0 % FS maximum. Wetted parts AISI 316L stainless steel; enclosure IP65. Spec key MBS 3050-8731-E4FB04-4. Approvals: ATEX Ex ec IIA T4 Gc, CE. EAN 5702423128976.
Specifications
- Part number
- 060G1560
- HS code
- 9026.20
- Material
- AISI 316L stainless steel
- Pressure rating
- -1 to 5 bar (-14.5 to 72.5 psi)
- Temperature range
- -40 to +85 °C (medium/ambient)
- IP rating
- IP65
- Standard size
- G 1/4 male (DIN 3852-G)
- Thread standard
- G 1/4 male (DIN 3852-G)
Compatibility
Compound -1 to 5 bar range; MBS 3050 with pulsation snubber. M12 x 1 5-pin outlet.
