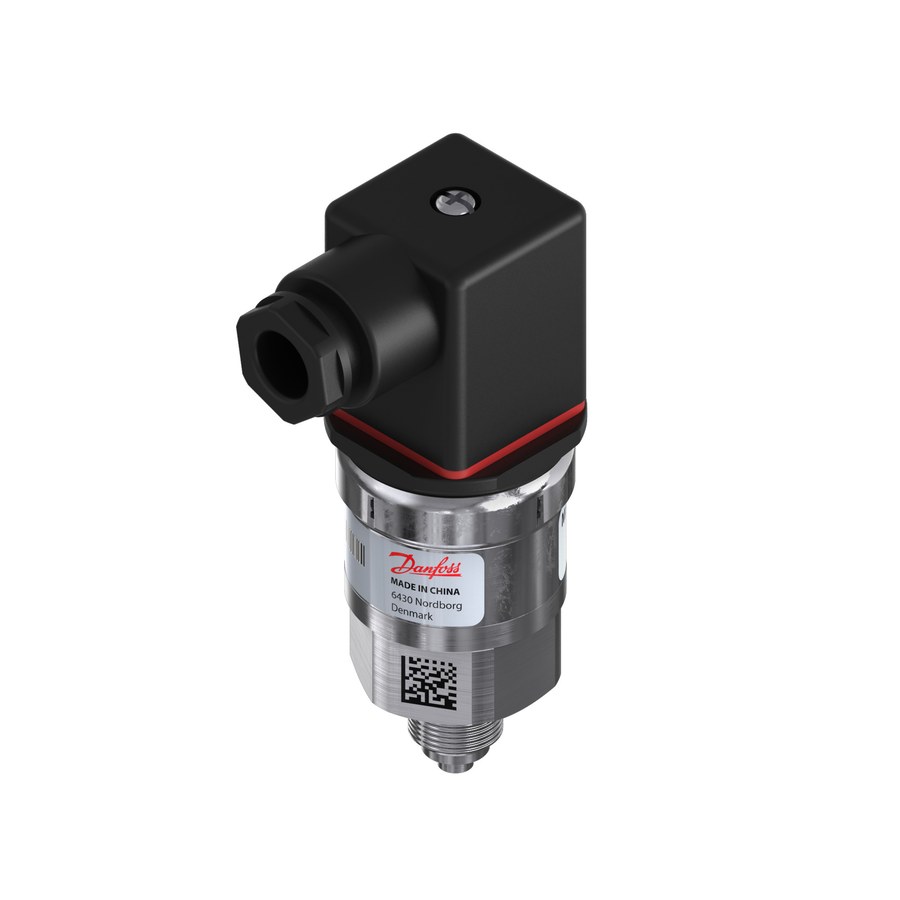

Danfoss MBS 3200 Pressure Transmitter 0 to 10 bar Absolute 0-5 V
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 3200 pressure transmitter, genuine OEM code 060G6580. Measuring range 0 to 10 bar (0 to 145 psi), 0-5 V (voltage, 3-wire) output, AISI 316L stainless steel wetted parts. G 1/4 male (EN 837, 27 mm HEX) pressure connection; Angular connector Pg 9 (EN 175301-803-A). Reference absolute, enclosure IP65. Mobile/off-highway transmitter; EAN 5702428981804.
Technical Specifications
- Type
- MBS 3200
- Range
- 0 to 10 bar (0 to 145 psi)
- Reference
- absolute
- Output
- 0-5 V (voltage, 3-wire)
- Supply
- 9-32 V DC
- Wetted parts
- AISI 316L stainless steel
- Pressure connection
- G 1/4 male (EN 837, 27 mm HEX)
- Electrical connection
- Angular connector Pg 9 (EN 175301-803-A)
- Enclosure
- IP65
- Ambient temp
- -25 to +90 C
- Medium temp
- -40 to +125 C
- Response time
- 4 ms max
- Approvals
- CE; UL Recognized; C UL US
- EAN
- 5702428981804
- Part number
- 060G6580
- Net weight
- 0.153 Kilogram
- Product group
- Sensors
- + output
- Pin 3
- + supply
- Pin 1
- - common
- Pin 2
- Accuracy, max. [±FS%]
- 1 %
- Accuracy, typical [±FS%]
- 0.5 %
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 125 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 257 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 100 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 212 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 5.75
- In scope of WEEE
- Yes
- International Article Number
- 5702428981804
- Intrinsically safe
- No
- Low Clipping level
- 0
- Medium temperature range [°C] [max]
- 125 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 257 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Output signal
- Voltage
- Output signal [V] [max]
- 5 V
- Output signal [V] [min]
- 0 V
- Overload pressure max. [bar]
- 60 bar
- Pressure connection HEX [mm]
- 27 mm
- Pressure connection size
- 1/4
- Pressure connection standard
- EN 837
- Pressure connection type
- G
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 10 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 145 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Absolute
- Pulse-snubber
- No
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- MBS 3200-2022-A1AB04-0
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 9 V
- UL mark
- Yes
Standards & Compliance
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- G 1/4 male (EN 837)
- Pressure Rating
- 0 to 10 bar (0 to 145 psi)
- Temperature Range
- -40 to +125 C (medium)
- IP Rating
- IP65
- Classification / Approval
- CE; UL Recognized; C UL US; EAC; RoHS
- HS Code
- 9026.20
Compatibility & Fitment
MBS 3200 mobile/off-highway transmitter, 0-10 bar absolute with 0-5 V voltage output and G 1/4 port.
