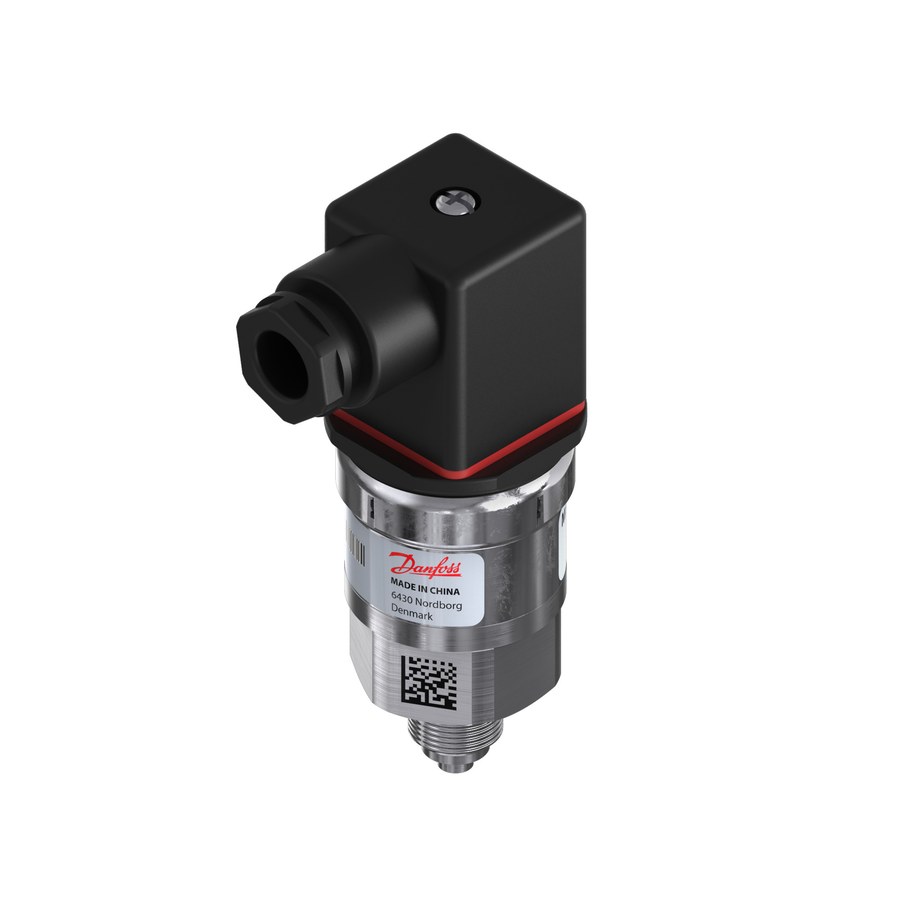

Danfoss MBS 3300 Pressure Transmitter 0 to 10 bar 0-5 V Angular (060G6520)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3300 pressure transmitter, genuine OEM code 060G6520. Measuring range 0 to 10 bar (0 to 145 psi), 0-5 V (voltage, 3-wire) output, AISI 316L stainless steel wetted parts. G 1/4 (EN 837, 27 mm HEX) pressure connection; Angular connector Pg 9 (EN 175301-803-A). Reference gauge, enclosure IP65. ATEX Ex ec / UL / EAC (GOST) certified; EAN 5702428951906. P/N 060G6520.
Specifications
- Part number
- 060G6520
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 10 bar (0 to 145 psi)
- Temperature range
- -40 to +125 C (medium)
- IP rating
- IP65
- Thread standard
- G 1/4 (EN 837)
Compatibility
MBS 3300 compact transmitter, G 1/4 port with 0-5 V voltage output; distinct from the 4-20 mA angular variant 060G6450.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
