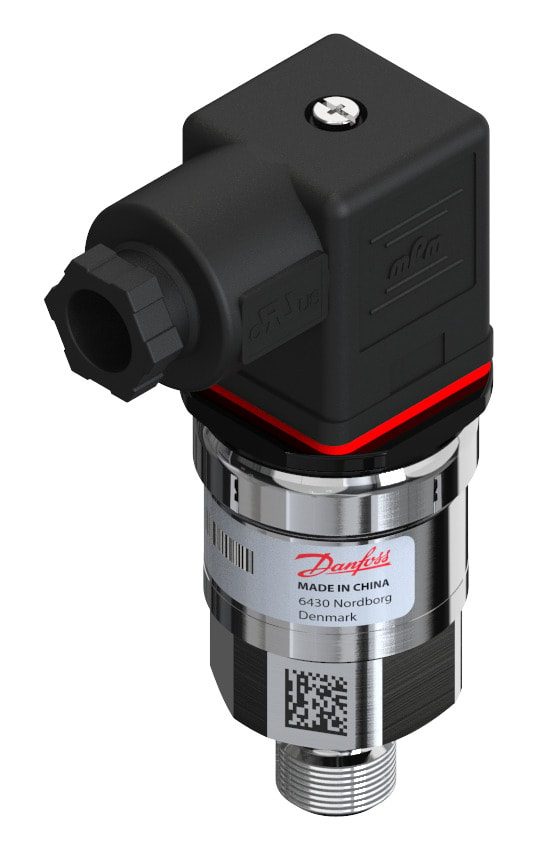

Danfoss MBS 3050 Pressure Transmitter 0 to 4 bar 0-10 V Angular (060G6522)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss MBS 3050 pressure transmitter, genuine OEM code 060G6522. Measuring range 0 to 4 bar (0 to 58 psi), 0-10 V (voltage, 3-wire) output, AISI 316L stainless steel wetted parts. M 12 x 1.5 (DIN 3852-E, Form E) pressure connection; Angular connector Pg 9 (EN 175301-803-A). Reference gauge, enclosure IP65. ATEX Ex ec / UL / EAC (GOST) certified; EAN 5702428953757. P/N 060G6522.
Specifications
- Part number
- 060G6522
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 4 bar (0 to 58 psi)
- Temperature range
- -40 to +85 C (medium)
- IP rating
- IP65
- Thread standard
- M 12 x 1.5 (DIN 3852-E, Form E)
Compatibility
MBS 3050 low-range transmitter with M 12 x 1.5 Form E port and 0-10 V voltage output.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
