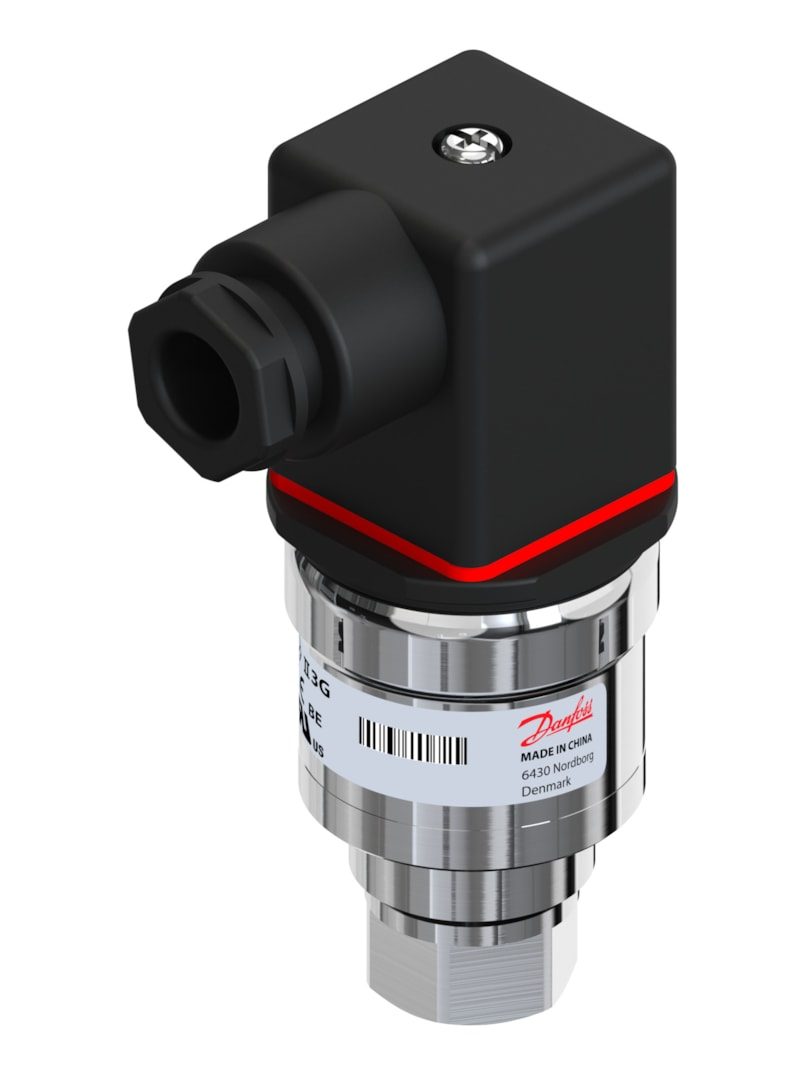

Danfoss AKS 32R Pressure Transmitter 0 to 34 bar Ratiometric UNF Angular (060G6515)
Danfoss · Sensors & Instrumentation · Pressure Transmitters
Danfoss AKS 32R pressure transmitter, genuine OEM code 060G6515. Measuring range 0 to 34 bar (0 to 493 psi), ratiometric 0.5-4.5 V output, AISI 316L stainless steel wetted parts. UNF 7/16-20 (ISO 8434-1) pressure connection; Angular connector, Pg 9 (EN 175301-803-A). Reference sealed gauge, enclosure IP65. For refrigeration and HVAC controls. EAN 5702428950770. P/N 060G6515.
Specifications
- Part number
- 060G6515
- HS code
- 9026.20
- Material
- AISI 316L stainless steel wetted parts
- Pressure rating
- 0 to 34 bar (0 to 493 psi)
- Temperature range
- -40 to +125 C (medium)
- IP rating
- IP65
- Thread standard
- UNF 7/16-20 (ISO 8434-1)
Compatibility
AKS 32R 0-34 bar, UNF 7/16-20 port, angular Pg 9 plug; distinct connection from flare 060G6324.
Standards
- IEC 61326
- IEC 61298-2
- IEC 60770
- EN 61326-1
