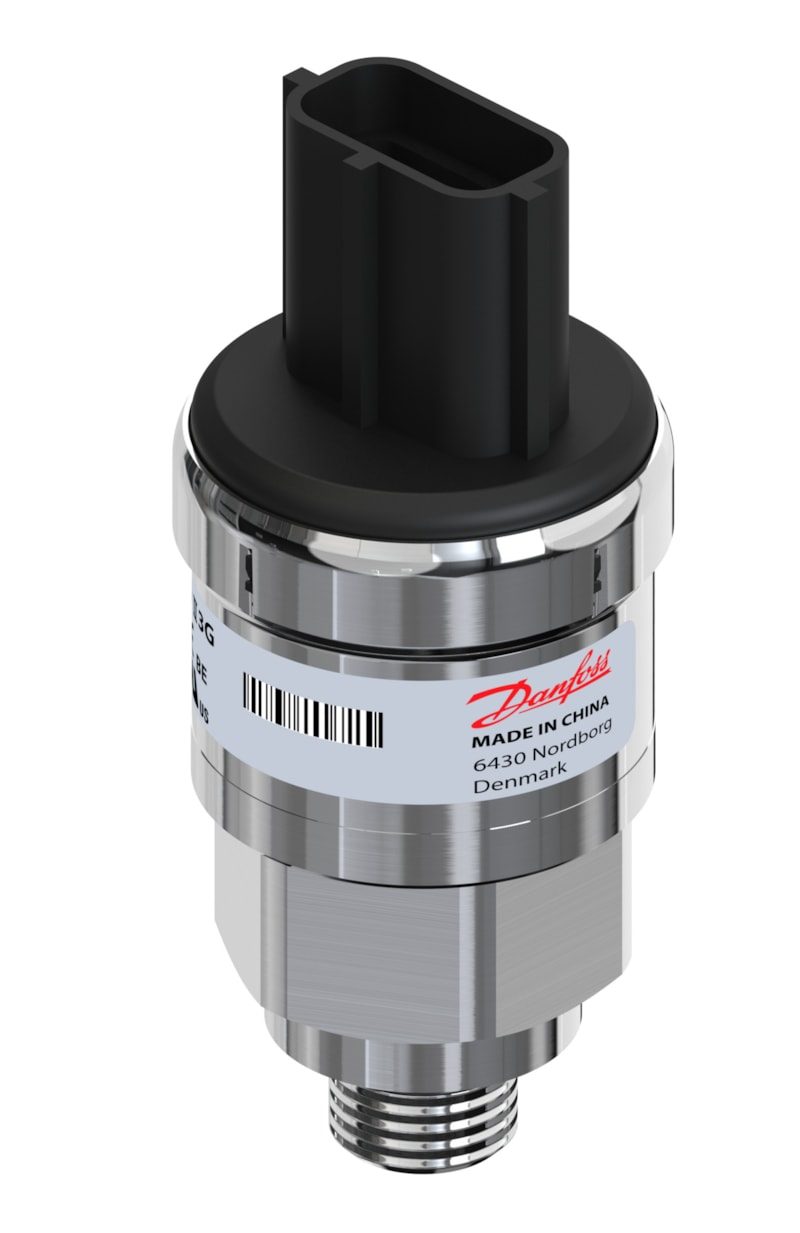

Danfoss AKS 32R Pressure Transmitter 0 to 20.7 bar Ratiometric UNF
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AKS 32R pressure transmitter, genuine OEM code 060G6496. Measuring range 0 to 20.7 bar (0 to 300 psi), ratiometric 0.5-4.5 V output, AISI 316L stainless steel wetted parts. UNF 1/2-20 pressure connection; AMP Econoseal J-series, 3-pin male. Reference sealed gauge, enclosure IP67. For refrigeration and HVAC controls. EAN 5702428940825.
Technical Specifications
- Type
- AKS 32R
- Range
- 0 to 20.7 bar (0 to 300 psi)
- Reference
- sealed gauge
- Output
- ratiometric 0.5-4.5 V
- Supply
- 5 V DC
- Wetted parts
- AISI 316L stainless steel
- Pressure connection
- UNF 1/2-20
- Electrical connection
- AMP Econoseal J-series, 3-pin male
- Enclosure
- IP67
- Ambient temp
- -40 to +85 C
- Medium temp
- -40 to +85 C
- Overload pressure
- 725 psi
- Response time
- 4 ms max
- Approvals
- C UL US; CE; EAC (GOST)
- EAN
- 5702428940825
- Part number
- 060G6496
- Net weight
- 0.124 Kilogram
- Product group
- Sensors
- + output
- Pin 3
- + supply
- Pin 1
- - common
- Pin 2
- Adj. zero point and span
- No
- Ambient temperature range [°C] [max]
- 85 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 185 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- C UL US UL Recognized
- Approval standard
- 6967179
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Comments
- NORMAL LABEL
- Compensated temp. range [°C] [max]
- 80 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 176 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. comments
- Integrated
- Electrical conn. Male/Female
- Male
- Electrical connection size
- 3 pin
- Enclosure rating IP
- IP67
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 98
- In scope of WEEE
- Yes
- International Article Number
- 5702428940825
- Intrinsically safe
- No
- Low Clipping level
- 4
- Medium temperature range [°C] [max]
- 85 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 185 °F
- Medium temperature range [°F] [min]
- -40 °F
- Output signal
- Ratio metric
- Overload pressure max. [psi]
- 725 psi
- Pressure connection size
- 1/2-20
- Pressure connection standard
- ASME B1.1
- Pressure connection type
- UNF
- Pressure Male/Female
- Male
- Pressure range [bar] [max]
- 20.7 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 300 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Sealed gauge
- Pulse-snubber
- No
- Ratiometric [V] [max]
- 4.5 V
- Ratiometric [V] [min]
- 0.5 V
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- AKS 32R-6436-G1BD15-0
- Supply voltage [V] DC
- 5 V
- UL mark
- Yes
Standards & Compliance
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- UNF 1/2-20
- Pressure Rating
- 0 to 20.7 bar (0 to 300 psi)
- Temperature Range
- -40 to +85 C (medium)
- IP Rating
- IP67
- Classification / Approval
- C UL US; CE; EAC (GOST); RoHS
- HS Code
- 9026.20
Compatibility & Fitment
AKS 32R ratiometric UNF 1/2-20 port; 0-20.7 bar (0-300 psi) refrigeration range.
