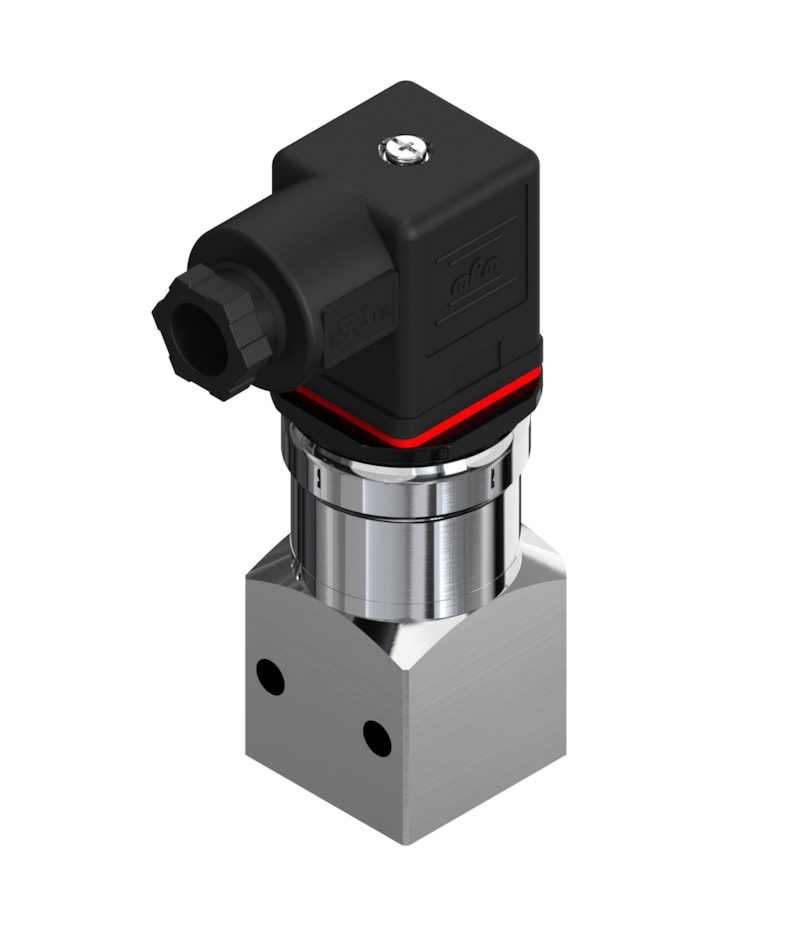

Danfoss MBS 3300 Pressure Transmitter 0 to 10 bar Absolute Flange Ratiometric
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss MBS 3300 pressure transmitter, genuine OEM code 060G6498. Measuring range 0 to 10 bar (0 to 145 psi), ratiometric 0.5-4.5 V output, AISI 316L stainless steel wetted parts. Block adapter with flange, port Ø2.5 mm (female) pressure connection; Angular connector, Pg 9 (EN 175301-803-A). Reference absolute, enclosure IP65. For industrial and refrigeration measurement. EAN 5702428941655.
Technical Specifications
- Type
- MBS 3300
- Range
- 0 to 10 bar (0 to 145 psi)
- Reference
- absolute
- Output
- ratiometric 0.5-4.5 V
- Supply
- 4.5-5.5 V DC
- Wetted parts
- AISI 316L stainless steel
- Pressure connection
- Block adapter with flange, port Ø2.5 mm (female)
- Electrical connection
- Angular connector, Pg 9 (EN 175301-803-A)
- Enclosure
- IP65
- Ambient temp
- -40 to +125 C
- Medium temp
- -40 to +125 C
- Overload pressure
- 60 bar (870 psi)
- Response time
- 4 ms max
- Approvals
- ATEX Ex ec IIA T4 Gc; CE; UL Recognized
- EAN
- 5702428941655
- Part number
- 060G6498
- Net weight
- 0.322 Kilogram
- Product group
- Sensors
- + output
- Pin 3
- + supply
- Pin 1
- - common
- Pin 2
- Accuracy, max. [±FS%]
- 1 %
- Accuracy, typical [±FS%]
- 0.5 %
- Ambient temperature range [°C] [max]
- 125 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 257 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 100 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 212 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 98
- In scope of WEEE
- No
- International Article Number
- 5702428941655
- Intrinsically safe
- No
- Low Clipping level
- 4
- Medium temperature range [°C] [max]
- 125 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 257 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.2 %
- Output signal
- Ratio metric
- Overload pressure max. [bar]
- 60 bar
- Overload pressure max. [psi]
- 870 psi
- Pressure connection notes
- Block adapter with flange
- Pressure connection size
- Port Ø2.5
- Pressure connection standard
- N/A
- Pressure connection type
- Flange
- Pressure Male/Female
- Female
- Pressure range [bar] [max]
- 10 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 145 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Absolute
- Ratiometric of Vsupply [%] [max]
- 90 %
- Ratiometric of Vsupply [%] [min]
- 10 %
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- MBS 3300-2026-A1CD28-3
- Supply voltage [V] DC [max]
- 5.5 V
- Supply voltage [V] DC [min]
- 4.5 V
- UL mark
- Yes
Standards & Compliance
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- Block adapter with flange, port Ø2.5 mm (female)
- Pressure Rating
- 0 to 10 bar (0 to 145 psi)
- Temperature Range
- -40 to +125 C (medium)
- IP Rating
- IP65
- Classification / Approval
- ATEX; CE; UL Recognized; EAC; RoHS
- HS Code
- 9026.20
Compatibility & Fitment
MBS 3300 absolute flush-flange (port Ø2.5) ratiometric with angular Pg 9 plug; distinct from bayonet 060G6461 and current 060G6499.
