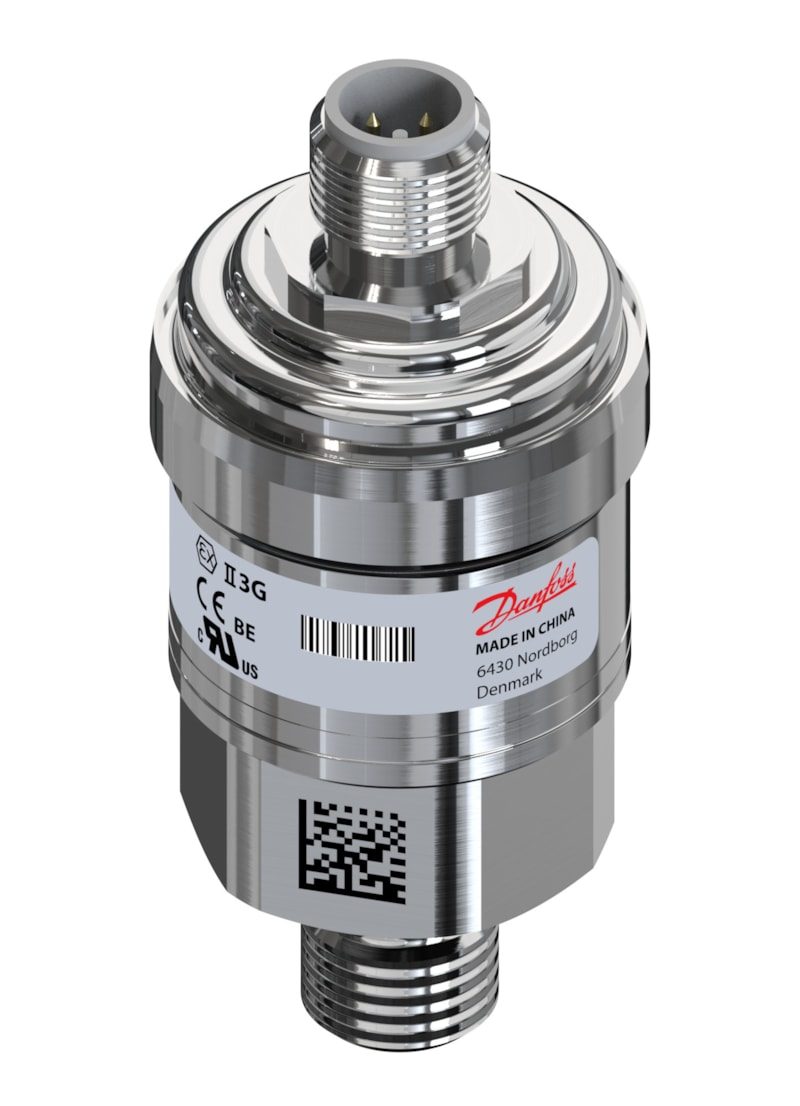

Danfoss MBS 3000 Pressure Transmitter 0 to 10 bar M12 Form E

Danfoss MBS 3000 general-purpose pressure transmitter. Range 0 to 10 bar (0 to 145 psi), 4-20 mA 2-wire output, AISI 316L stainless steel wetted parts. G 1/4 male Form E (DIN 3852-E / ISO 1179-2) port; M12 x 1 4-pin male connector (IEC 61076-2-101). Spec key MBS 3000-2031-E3GB04-2. Sealed gauge, IP67, overload 60 bar. EAN 5702428929417.

Type

MBS 3000

Range

0 to 10 bar (0 to 145 psi)

Reference

sealed gauge

Output

4-20 mA (2-wire)

Supply

9-32 V DC

Accuracy

<= +/-0.5% FS typ., +/-1% FS max

Wetted parts

AISI 316L stainless steel

Pressure connection

G 1/4 male (DIN 3852-E, Form E)

Electrical connection

M12 x 1, 4-pin male (IEC 61076-2-101)

Enclosure

IP67

Ambient temp

-25 to +85 C

Medium temp

-40 to +125 C

Overload pressure

60 bar

Response time

4 ms max

Approvals

CE; UL Recognized; C UL US

Spec key

MBS 3000-2031-E3GB04-2

EAN

5702428929417

Part number

060G6460

Net weight

0.135 Kilogram

Product group

Sensors

+ supply

Pin 1

- common

Pin 4

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-25 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-13 °F

Approval

C UL US UL Recognized

CE mark

Yes

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical conn. Male/Female

Male

Electrical connection size

4 pin

Electrical connection standard

IEC 61076-2-101

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flush diaphragm

No

High Clipping Level

22.4

In scope of WEEE

Yes

International Article Number

5702428929417

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

60 bar

Overload pressure max. [psi]

870 psi

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

10 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

145 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Pulse-snubber

No

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

Specification key

MBS 3000-2031-E3GB04-2

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

UL mark

Yes

Material

AISI 316L stainless steel wetted parts

Thread Standard

G 1/4 male (DIN 3852-E / ISO 1179-2, Form E)

Pressure Rating

0 to 10 bar (0 to 145 psi)

Temperature Range

-40 C to +125 C (medium)

IP Rating

IP67

Classification / Approval

CE; UL Recognized; C UL US; EAC; RoHS

HS Code

9026.20
