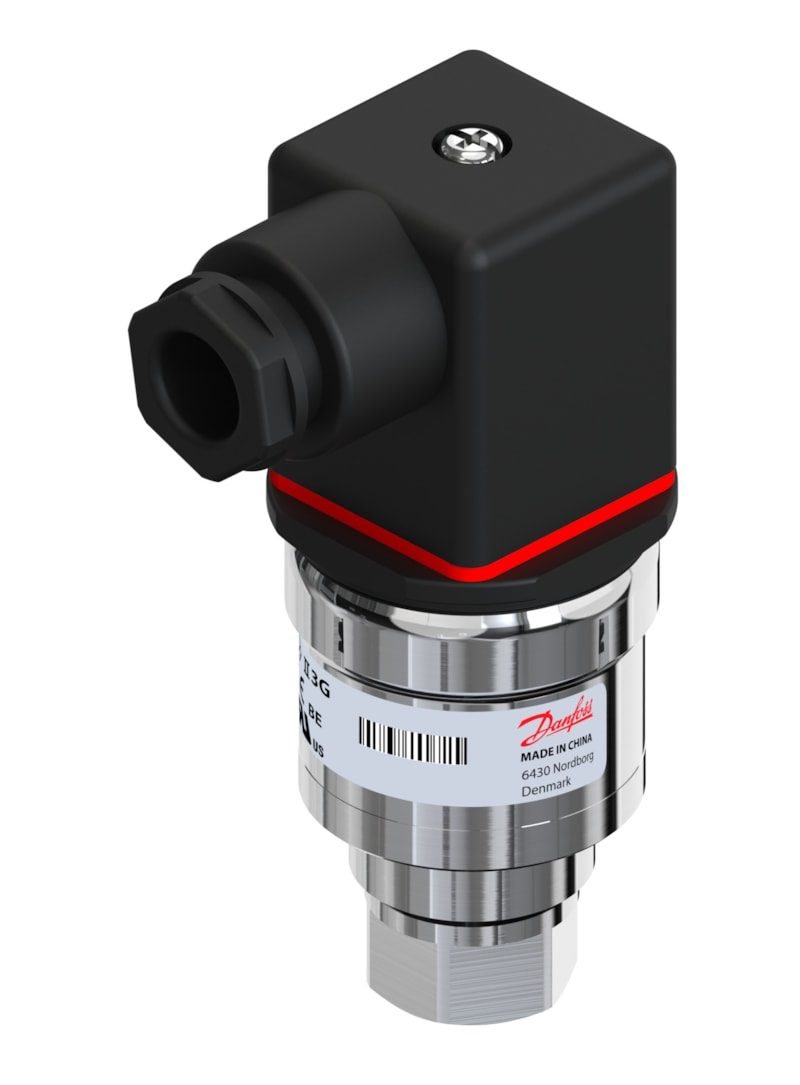

Danfoss AKS 3000 Pressure Transmitter 0 to 48.3 bar 0-10 V UNF
Pricing
Request a quote
We reply within 24 hours
Product Description
Danfoss AKS 3000 pressure transmitter for refrigeration and industrial use. Range 0 to 48.3 bar (0 to 700 psi), 0-10 V voltage output, AISI 316L stainless steel wetted parts. UNF 7/16-20 pressure connection; angular connector Pg 9 (EN 175301-803-A). Spec key AKS 3000-J235-A1BF08-0. Sealed gauge, IP65, overload 289.5 bar. EAN 5702428930208.
Technical Specifications
- Type
- AKS 3000
- Range
- 0 to 48.3 bar (0 to 700 psi)
- Reference
- sealed gauge
- Output
- 0-10 V (voltage)
- Supply
- 15-32 V DC
- Accuracy
- 1% FS typ., 2% FS max
- Wetted parts
- AISI 316L stainless steel
- Pressure connection
- UNF 7/16-20
- Electrical connection
- Angular connector Pg 9, EN 175301-803-A
- Enclosure
- IP65
- Ambient temp
- -40 to +105 C
- Medium temp
- -40 to +125 C
- Overload pressure
- 289.5 bar
- Response time
- 4 ms max
- Approvals
- ATEX; CE; UL; EAC (GOST)
- Spec key
- AKS 3000-J235-A1BF08-0
- EAN
- 5702428930208
- Part number
- 060G6458
- Net weight
- 0.125 Kilogram
- Product group
- Sensors
- + output
- Pin 3
- + supply
- Pin 1
- - common
- Pin 2
- Accuracy, max. [±FS%]
- 2 %
- Accuracy, typical [±FS%]
- 1 %
- Ambient temperature range [°C] [max]
- 105 °C
- Ambient temperature range [°C] [min]
- -40 °C
- Ambient temperature range [°F] [max]
- 221 °F
- Ambient temperature range [°F] [min]
- -40 °F
- Approval
- ATEX
- Approval comments
- ATEX Ex ec IIA T4 Gc
- Approval standard
- 6967179
- CE mark
- Yes
- China RoHS compliance
- Out of scope
- Compensated temp. range [°C] [max]
- 100 °C
- Compensated temp. range [°C] [min]
- 0 °C
- Compensated temp. range [°F] [max]
- 212 °F
- Compensated temp. range [°F] [min]
- 32 °F
- EEE category
- 5 small equipment (any external dimension < 50 cm)
- Electrical conn. Male/Female
- Male and Female
- Electrical connection size
- Pg 9
- Electrical connection standard
- EN 175301-803-A
- Enclosure rating IP
- IP65
- EU RoHS compliance
- Yes with exemptions
- EU RoHS exemption clause
- 6(c)
- Flush diaphragm
- No
- High Clipping Level
- 11.5
- In scope of WEEE
- Yes
- International Article Number
- 5702428930208
- Intrinsically safe
- No
- Low Clipping level
- 0
- Medium temperature range [°C] [max]
- 125 °C
- Medium temperature range [°C] [min]
- -40 °C
- Medium temperature range [°F] [max]
- 257 °F
- Medium temperature range [°F] [min]
- -40 °F
- Non-linearity BFSL [±FS%]
- 0.5 %
- Output signal
- Voltage
- Output signal [V] [max]
- 10 V
- Output signal [V] [min]
- 0 V
- Overload pressure max. [bar]
- 289.5 bar
- Overload pressure max. [psi]
- 4200 psi
- Pressure connection HEX [mm]
- 17 mm
- Pressure connection notes
- Flare 1/4” with valve depresso
- Pressure connection size
- 7/16-20
- Pressure connection standard
- ISO 8434-1
- Pressure connection type
- UNF
- Pressure Male/Female
- Female
- Pressure range [bar] [max]
- 48.3 bar
- Pressure range [bar] [min]
- 0 bar
- Pressure range [psi] [max]
- 700 psi
- Pressure range [psi] [min]
- 0 psi
- Pressure reference
- Sealed gauge
- Pulse-snubber
- No
- REACH Candidate List substances
- Lead (CAS no. 7439-92-1)
- Response time max. [ms]
- 4 ms
- Specification key
- AKS 3000-J235-A1BF08-0
- Supply voltage [V] DC [max]
- 32 V
- Supply voltage [V] DC [min]
- 15 V
- UL mark
- Yes
Standards & Compliance
- Material
- AISI 316L stainless steel wetted parts
- Thread Standard
- UNF 7/16-20
- Pressure Rating
- 0 to 48.3 bar (0 to 700 psi)
- Temperature Range
- -40 C to +125 C (medium)
- IP Rating
- IP65
- Classification / Approval
- ATEX; CE; UL Recognized; EAC (GOST); RoHS
- HS Code
- 9026.20
Compatibility & Fitment
AKS 3000 with 0-10 V voltage output and UNF 7/16-20 port; distinct from 4-20 mA variants 060G6186/6187 and flare 060G6406.
